Schema acns.xsd

schema location:	http://www.graduatedresponse.com/ACNS/acns2v1_1j.xsd
attribute form default:
element form default:	qualified
targetNamespace:	http://www.movielabs.com/ACNS

Elements	Complex types	Simple types	Attr. groups
CounterNotice	Case	type_ExplicitType	type_contentType
Detection	Contact	type_infringement_type_enumeration	type_MappedIPPortAttribute
Infringement	type_AlsoSeen	type_IPAddress	type_OriginalIPPortAttribute
MessageEnvelope	type_Asset	type_MessageName
NoticeAck	type_BinaryImage	type_Port
NoticeStatus	type_Content
StatusRequest	type_ContentMatched
StatusUpdate	type_CounterNotice
Verification	type_CounternoticeContent
	type_Detection
	type_Disposition
	type_GRStatus
	type_Hash
	type_infringement_type
	type_InternalTracking
	type_IPAssignee
	type_Item
	type_Mapping
	type_Message
	type_NoticeAck
	type_NoticeAckList
	type_NoticeStatus

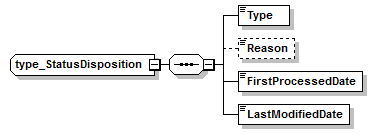

	type_StatusDisposition
	type_StatusRequest
	type_StatusSource
	type_StatusUpdate
	type_Subject
	type_UsenetDisposition
	type_Verification
	type_VerificationLevel
	type_VerifiedImage
	type_WatermarkMatched

schema location:	http://www.w3.org/2005/05/xmlmime
attribute form default:
element form default:
targetNamespace:	http://www.w3.org/2005/05/xmlmime

Attributes	Complex types
contentType	base64Binary
expectedContentTypes	hexBinary

schema location:	http://www.w3.org/TR/2002/REC-xmldsig-core-20020212/xmldsig-core-schema.xsd#%20%20%20%20xmldsig-core-schema.xsd
attribute form default:
element form default:	qualified
targetNamespace:	http://www.w3.org/2000/09/xmldsig#

Elements	Complex types	Simple types
CanonicalizationMethod	CanonicalizationMethodType	CryptoBinary
DigestMethod	DigestMethodType	DigestValueType
DigestValue	DSAKeyValueType	HMACOutputLengthType
DSAKeyValue	KeyInfoType
KeyInfo	KeyValueType
KeyName	ManifestType
KeyValue	ObjectType
Manifest	PGPDataType
MgmtData	ReferenceType
Object	RetrievalMethodType
PGPData	RSAKeyValueType
Reference	SignatureMethodType
RetrievalMethod	SignaturePropertiesType
RSAKeyValue	SignaturePropertyType
Signature	SignatureType
SignatureMethod	SignatureValueType
SignatureProperties	SignedInfoType
SignatureProperty	SPKIDataType
SignatureValue	TransformsType
SignedInfo	TransformType
SPKIData	X509DataType
Transform	X509IssuerSerialType
Transforms
X509Data

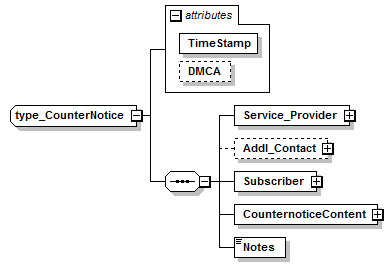

element CounterNotice

diagram
namespace	http://www.movielabs.com/ACNS
type	type_CounterNotice
attributes	Name   Type   Use   Default   Fixed   annotation TimeStamp xs:dateTime required         DMCA xs:boolean
source	<xs:element name="CounterNotice" type="type_CounterNotice"/>

element Detection

diagram
namespace	http://www.movielabs.com/ACNS
type	type_Detection
source	<xs:element name="Detection" type="type_Detection"/>

element Infringement

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:element name="Infringement" id="v0.7">   <xs:complexType>     <xs:sequence>       <xs:element name="Case" type="Case"/>       <xs:element name="Complainant" type="Contact"/>       <xs:element name="Service_Provider" type="Contact"/>       <xs:element name="Source">         <xs:complexType>           <xs:all>             <xs:element name="TimeStamp" type="xs:dateTime"/>             <xs:element name="IP_Address" type="type_IPAddress"/>             <xs:element name="Port" type="type_Port" minOccurs="0"/>             <xs:element name="Protocol" minOccurs="0">               <xs:simpleType>                 <xs:restriction base="xs:int">                   <xs:minInclusive value="0"/>                   <xs:maxInclusive value="254"/>                 </xs:restriction>               </xs:simpleType>             </xs:element>             <xs:element name="DNS_Name" minOccurs="0">               <xs:simpleType>                 <xs:restriction base="xs:string">                   <xs:whiteSpace value="collapse"/>                 </xs:restriction>               </xs:simpleType>             </xs:element>             <xs:element name="MAC_Address" type="xs:string" minOccurs="0"/>             <xs:element name="IP_Block" type="xs:string" minOccurs="0"/>             <xs:element name="Type" type="xs:string" minOccurs="0"/>             <xs:element name="SubType" minOccurs="0">               <xs:complexType>                 <xs:simpleContent>                   <xs:extension base="xs:string">                     <xs:attribute name="BaseType" use="required">                       <xs:simpleType>                         <xs:restriction base="xs:string">                           <xs:enumeration value="P2P"/>                           <xs:enumeration value="SERVER"/>                           <xs:enumeration value="LINK"/>                           <xs:enumeration value="OTHER"/>                         </xs:restriction>                       </xs:simpleType>                     </xs:attribute>                     <xs:attribute name="Protocol">                       <xs:simpleType>                         <xs:restriction base="xs:string">                           <xs:enumeration value="BITTORRENT"/>                           <xs:enumeration value="ED2K"/>                           <xs:enumeration value="GNUTELLA"/>                           <xs:enumeration value="GNUTELLA2"/>                           <xs:enumeration value="ARES"/>                           <xs:enumeration value="WINNY"/>                           <xs:enumeration value="FASTTRACK"/>                           <xs:enumeration value="KAD"/>                           <xs:enumeration value="FTP"/>                           <xs:enumeration value="HTTP"/>                           <xs:enumeration value="IRC"/>                           <xs:enumeration value="OTHER"/>                         </xs:restriction>                       </xs:simpleType>                     </xs:attribute>                     <xs:attribute name="Application" type="xs:string"/>                   </xs:extension>                 </xs:simpleContent>               </xs:complexType>             </xs:element>             <xs:element name="URL_Base" type="xs:anyURI" minOccurs="0"/>             <xs:element name="UserName" type="xs:string" minOccurs="0"/>             <xs:element name="Login" minOccurs="0">               <xs:complexType>                 <xs:attribute name="Username" type="xs:string" use="required"/>                 <xs:attribute name="Password" type="xs:string" use="required"/>               </xs:complexType>             </xs:element>             <xs:element name="Number_Files" minOccurs="0">               <xs:simpleType>                 <xs:restriction base="xs:int">                   <xs:minInclusive value="0"/>                 </xs:restriction>               </xs:simpleType>             </xs:element>             <xs:element name="Deja_Vu" minOccurs="0">               <xs:simpleType>                 <xs:restriction base="xs:string">                   <xs:enumeration value="Yes"/>                   <xs:enumeration value="No"/>                 </xs:restriction>               </xs:simpleType>             </xs:element>             <xs:element name="IsSource" type="xs:boolean" minOccurs="0"/>           </xs:all>         </xs:complexType>       </xs:element>       <xs:element name="Content">         <xs:complexType>           <xs:sequence>             <xs:element name="Item" maxOccurs="unbounded">               <xs:complexType>                 <xs:sequence>                   <xs:element name="TimeStamp" type="xs:dateTime"/>                   <xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>                   <xs:element name="Title" type="xs:string" minOccurs="0"/>                   <xs:element name="Artist" type="xs:string" minOccurs="0"/>                   <xs:element name="FileName">                     <xs:simpleType>                       <xs:restriction base="xs:string"/>                     </xs:simpleType>                   </xs:element>                   <xs:element name="FileSize" minOccurs="0">                     <xs:simpleType>                       <xs:restriction base="xs:int">                         <xs:minInclusive value="0"/>                       </xs:restriction>                     </xs:simpleType>                   </xs:element>                   <xs:element name="URL" type="xs:anyURI" minOccurs="0"/>                   <xs:element name="Type" type="xs:string" minOccurs="0"/>                   <xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>                   <xs:element name="Hash" type="type_Hash" minOccurs="0"/>                   <xs:element name="UseNetHeader" type="xs:string" minOccurs="0"/>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="History" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="Notice" minOccurs="0" maxOccurs="unbounded">               <xs:complexType>                 <xs:simpleContent>                   <xs:extension base="xs:string">                     <xs:attribute name="ID" type="xs:anySimpleType" use="optional"/>                     <xs:attribute name="TimeStamp" type="xs:anySimpleType" use="optional"/>                   </xs:extension>                 </xs:simpleContent>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Notes" type="xs:string" minOccurs="0"/>       <xs:element name="Type" type="type_infringement_type" minOccurs="0"/>       <xs:element name="Detection" type="type_Detection" minOccurs="0"/>       <xs:element name="Verification" type="type_Verification" minOccurs="0"/>       <xs:element name="InternalTracking" type="type_InternalTracking" minOccurs="0" maxOccurs="unbounded"/>       <xs:element name="TextNotice" type="xs:string" minOccurs="0"/>       <xs:element name="VerifiedData" type="xs:base64Binary" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element Infringement/Case

diagram
namespace	http://www.movielabs.com/ACNS
type	Case
source	<xs:element name="Case" type="Case"/>

element Infringement/Complainant

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="Complainant" type="Contact"/>

element Infringement/Service_Provider

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="Service_Provider" type="Contact"/>

element Infringement/Source

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:element name="Source">   <xs:complexType>     <xs:all>       <xs:element name="TimeStamp" type="xs:dateTime"/>       <xs:element name="IP_Address" type="type_IPAddress"/>       <xs:element name="Port" type="type_Port" minOccurs="0"/>       <xs:element name="Protocol" minOccurs="0">         <xs:simpleType>           <xs:restriction base="xs:int">             <xs:minInclusive value="0"/>             <xs:maxInclusive value="254"/>           </xs:restriction>         </xs:simpleType>       </xs:element>       <xs:element name="DNS_Name" minOccurs="0">         <xs:simpleType>           <xs:restriction base="xs:string">             <xs:whiteSpace value="collapse"/>           </xs:restriction>         </xs:simpleType>       </xs:element>       <xs:element name="MAC_Address" type="xs:string" minOccurs="0"/>       <xs:element name="IP_Block" type="xs:string" minOccurs="0"/>       <xs:element name="Type" type="xs:string" minOccurs="0"/>       <xs:element name="SubType" minOccurs="0">         <xs:complexType>           <xs:simpleContent>             <xs:extension base="xs:string">               <xs:attribute name="BaseType" use="required">                 <xs:simpleType>                   <xs:restriction base="xs:string">                     <xs:enumeration value="P2P"/>                     <xs:enumeration value="SERVER"/>                     <xs:enumeration value="LINK"/>                     <xs:enumeration value="OTHER"/>                   </xs:restriction>                 </xs:simpleType>               </xs:attribute>               <xs:attribute name="Protocol">                 <xs:simpleType>                   <xs:restriction base="xs:string">                     <xs:enumeration value="BITTORRENT"/>                     <xs:enumeration value="ED2K"/>                     <xs:enumeration value="GNUTELLA"/>                     <xs:enumeration value="GNUTELLA2"/>                     <xs:enumeration value="ARES"/>                     <xs:enumeration value="WINNY"/>                     <xs:enumeration value="FASTTRACK"/>                     <xs:enumeration value="KAD"/>                     <xs:enumeration value="FTP"/>                     <xs:enumeration value="HTTP"/>                     <xs:enumeration value="IRC"/>                     <xs:enumeration value="OTHER"/>                   </xs:restriction>                 </xs:simpleType>               </xs:attribute>               <xs:attribute name="Application" type="xs:string"/>             </xs:extension>           </xs:simpleContent>         </xs:complexType>       </xs:element>       <xs:element name="URL_Base" type="xs:anyURI" minOccurs="0"/>       <xs:element name="UserName" type="xs:string" minOccurs="0"/>       <xs:element name="Login" minOccurs="0">         <xs:complexType>           <xs:attribute name="Username" type="xs:string" use="required"/>           <xs:attribute name="Password" type="xs:string" use="required"/>         </xs:complexType>       </xs:element>       <xs:element name="Number_Files" minOccurs="0">         <xs:simpleType>           <xs:restriction base="xs:int">             <xs:minInclusive value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:element>       <xs:element name="Deja_Vu" minOccurs="0">         <xs:simpleType>           <xs:restriction base="xs:string">             <xs:enumeration value="Yes"/>             <xs:enumeration value="No"/>           </xs:restriction>         </xs:simpleType>       </xs:element>       <xs:element name="IsSource" type="xs:boolean" minOccurs="0"/>     </xs:all>   </xs:complexType> </xs:element>

element Infringement/Source/TimeStamp

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:dateTime
source	<xs:element name="TimeStamp" type="xs:dateTime"/>

element Infringement/Source/IP_Address

diagram
namespace	http://www.movielabs.com/ACNS
type	type_IPAddress
source	<xs:element name="IP_Address" type="type_IPAddress"/>

element Infringement/Source/Port

diagram
namespace	http://www.movielabs.com/ACNS
type	type_Port
source	<xs:element name="Port" type="type_Port" minOccurs="0"/>

element Infringement/Source/Protocol

diagram
namespace	http://www.movielabs.com/ACNS
type	restriction of xs:int
source	<xs:element name="Protocol" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="254"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Infringement/Source/DNS_Name

diagram
namespace	http://www.movielabs.com/ACNS
type	restriction of xs:string
source	<xs:element name="DNS_Name" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:whiteSpace value="collapse"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Infringement/Source/MAC_Address

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="MAC_Address" type="xs:string" minOccurs="0"/>

element Infringement/Source/IP_Block

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="IP_Block" type="xs:string" minOccurs="0"/>

element Infringement/Source/Type

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Type" type="xs:string" minOccurs="0"/>

element Infringement/Source/SubType

diagram
namespace	http://www.movielabs.com/ACNS
type	extension of xs:string
attributes	Name   Type   Use   Default   Fixed   annotation BaseType derived by: xs:string required         Protocol derived by: xs:string          Application xs:string
source	<xs:element name="SubType" minOccurs="0">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:string">         <xs:attribute name="BaseType" use="required">           <xs:simpleType>             <xs:restriction base="xs:string">               <xs:enumeration value="P2P"/>               <xs:enumeration value="SERVER"/>               <xs:enumeration value="LINK"/>               <xs:enumeration value="OTHER"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="Protocol">           <xs:simpleType>             <xs:restriction base="xs:string">               <xs:enumeration value="BITTORRENT"/>               <xs:enumeration value="ED2K"/>               <xs:enumeration value="GNUTELLA"/>               <xs:enumeration value="GNUTELLA2"/>               <xs:enumeration value="ARES"/>               <xs:enumeration value="WINNY"/>               <xs:enumeration value="FASTTRACK"/>               <xs:enumeration value="KAD"/>               <xs:enumeration value="FTP"/>               <xs:enumeration value="HTTP"/>               <xs:enumeration value="IRC"/>               <xs:enumeration value="OTHER"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="Application" type="xs:string"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute Infringement/Source/SubType/@BaseType

type	restriction of xs:string
facets	Kind  Value  annotation  enumeration  P2P  enumeration  SERVER  enumeration  LINK  enumeration  OTHER
source	<xs:attribute name="BaseType" use="required">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="P2P"/>       <xs:enumeration value="SERVER"/>       <xs:enumeration value="LINK"/>       <xs:enumeration value="OTHER"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute Infringement/Source/SubType/@Protocol

type	restriction of xs:string
facets	Kind  Value  annotation  enumeration  BITTORRENT  enumeration  ED2K  enumeration  GNUTELLA  enumeration  GNUTELLA2  enumeration  ARES  enumeration  WINNY  enumeration  FASTTRACK  enumeration  KAD  enumeration  FTP  enumeration  HTTP  enumeration  IRC  enumeration  OTHER
source	<xs:attribute name="Protocol">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="BITTORRENT"/>       <xs:enumeration value="ED2K"/>       <xs:enumeration value="GNUTELLA"/>       <xs:enumeration value="GNUTELLA2"/>       <xs:enumeration value="ARES"/>       <xs:enumeration value="WINNY"/>       <xs:enumeration value="FASTTRACK"/>       <xs:enumeration value="KAD"/>       <xs:enumeration value="FTP"/>       <xs:enumeration value="HTTP"/>       <xs:enumeration value="IRC"/>       <xs:enumeration value="OTHER"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute Infringement/Source/SubType/@Application

type	xs:string
source	<xs:attribute name="Application" type="xs:string"/>

element Infringement/Source/URL_Base

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:anyURI
source	<xs:element name="URL_Base" type="xs:anyURI" minOccurs="0"/>

element Infringement/Source/UserName

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="UserName" type="xs:string" minOccurs="0"/>

element Infringement/Source/Login

diagram
namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation Username xs:string required         Password xs:string required
source	<xs:element name="Login" minOccurs="0">   <xs:complexType>     <xs:attribute name="Username" type="xs:string" use="required"/>     <xs:attribute name="Password" type="xs:string" use="required"/>   </xs:complexType> </xs:element>

attribute Infringement/Source/Login/@Username

type	xs:string
source	<xs:attribute name="Username" type="xs:string" use="required"/>

attribute Infringement/Source/Login/@Password

type	xs:string
source	<xs:attribute name="Password" type="xs:string" use="required"/>

element Infringement/Source/Number_Files

diagram
namespace	http://www.movielabs.com/ACNS
type	restriction of xs:int
source	<xs:element name="Number_Files" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Infringement/Source/Deja_Vu

diagram
namespace	http://www.movielabs.com/ACNS
type	restriction of xs:string
facets	Kind  Value  annotation  enumeration  Yes  enumeration  No
source	<xs:element name="Deja_Vu" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="Yes"/>       <xs:enumeration value="No"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Infringement/Source/IsSource

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:boolean
source	<xs:element name="IsSource" type="xs:boolean" minOccurs="0"/>

element Infringement/Content

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:element name="Content">   <xs:complexType>     <xs:sequence>       <xs:element name="Item" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="TimeStamp" type="xs:dateTime"/>             <xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>             <xs:element name="Title" type="xs:string" minOccurs="0"/>             <xs:element name="Artist" type="xs:string" minOccurs="0"/>             <xs:element name="FileName">               <xs:simpleType>                 <xs:restriction base="xs:string"/>               </xs:simpleType>             </xs:element>             <xs:element name="FileSize" minOccurs="0">               <xs:simpleType>                 <xs:restriction base="xs:int">                   <xs:minInclusive value="0"/>                 </xs:restriction>               </xs:simpleType>             </xs:element>             <xs:element name="URL" type="xs:anyURI" minOccurs="0"/>             <xs:element name="Type" type="xs:string" minOccurs="0"/>             <xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>             <xs:element name="Hash" type="type_Hash" minOccurs="0"/>             <xs:element name="UseNetHeader" type="xs:string" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element Infringement/Content/Item

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:element name="Item" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="TimeStamp" type="xs:dateTime"/>       <xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>       <xs:element name="Title" type="xs:string" minOccurs="0"/>       <xs:element name="Artist" type="xs:string" minOccurs="0"/>       <xs:element name="FileName">         <xs:simpleType>           <xs:restriction base="xs:string"/>         </xs:simpleType>       </xs:element>       <xs:element name="FileSize" minOccurs="0">         <xs:simpleType>           <xs:restriction base="xs:int">             <xs:minInclusive value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:element>       <xs:element name="URL" type="xs:anyURI" minOccurs="0"/>       <xs:element name="Type" type="xs:string" minOccurs="0"/>       <xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>       <xs:element name="Hash" type="type_Hash" minOccurs="0"/>       <xs:element name="UseNetHeader" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element Infringement/Content/Item/TimeStamp

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:dateTime
source	<xs:element name="TimeStamp" type="xs:dateTime"/>

element Infringement/Content/Item/AlsoSeen

diagram
namespace	http://www.movielabs.com/ACNS
type	type_AlsoSeen
attributes	Name   Type   Use   Default   Fixed   annotation Start xs:dateTime required         End xs:dateTime required
source	<xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>

element Infringement/Content/Item/Title

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Title" type="xs:string" minOccurs="0"/>

element Infringement/Content/Item/Artist

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Artist" type="xs:string" minOccurs="0"/>

element Infringement/Content/Item/FileName

diagram
namespace	http://www.movielabs.com/ACNS
type	restriction of xs:string
source	<xs:element name="FileName">   <xs:simpleType>     <xs:restriction base="xs:string"/>   </xs:simpleType> </xs:element>

element Infringement/Content/Item/FileSize

diagram
namespace	http://www.movielabs.com/ACNS
type	restriction of xs:int
source	<xs:element name="FileSize" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Infringement/Content/Item/URL

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:anyURI
source	<xs:element name="URL" type="xs:anyURI" minOccurs="0"/>

element Infringement/Content/Item/Type

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Type" type="xs:string" minOccurs="0"/>

element Infringement/Content/Item/ExplicitType

diagram
namespace	http://www.movielabs.com/ACNS
type	type_ExplicitType
facets	Kind  Value  annotation  enumeration  Movie  enumeration  Game  enumeration  Software  enumeration  Music  enumeration  Document  enumeration  Image
source	<xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>

element Infringement/Content/Item/Hash

diagram
namespace	http://www.movielabs.com/ACNS
type	type_Hash
attributes	Name   Type   Use   Default   Fixed   annotation Type xs:string required
source	<xs:element name="Hash" type="type_Hash" minOccurs="0"/>

element Infringement/Content/Item/UseNetHeader

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="UseNetHeader" type="xs:string" minOccurs="0"/>

element Infringement/History

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:element name="History" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="Notice" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:simpleContent>             <xs:extension base="xs:string">               <xs:attribute name="ID" type="xs:anySimpleType" use="optional"/>               <xs:attribute name="TimeStamp" type="xs:anySimpleType" use="optional"/>             </xs:extension>           </xs:simpleContent>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element Infringement/History/Notice

diagram
namespace	http://www.movielabs.com/ACNS
type	extension of xs:string
attributes	Name   Type   Use   Default   Fixed   annotation ID xs:anySimpleType optional         TimeStamp xs:anySimpleType optional
source	<xs:element name="Notice" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:string">         <xs:attribute name="ID" type="xs:anySimpleType" use="optional"/>         <xs:attribute name="TimeStamp" type="xs:anySimpleType" use="optional"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute Infringement/History/Notice/@ID

type	xs:anySimpleType
source	<xs:attribute name="ID" type="xs:anySimpleType" use="optional"/>

attribute Infringement/History/Notice/@TimeStamp

type	xs:anySimpleType
source	<xs:attribute name="TimeStamp" type="xs:anySimpleType" use="optional"/>

element Infringement/Notes

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Notes" type="xs:string" minOccurs="0"/>

element Infringement/Type

diagram
namespace	http://www.movielabs.com/ACNS
type	type_infringement_type
facets	Kind  Value  annotation  enumeration  OTHER  enumeration  INFRINGEMENT  enumeration  PRELIT  enumeration  INFO  enumeration  DMCA
attributes	Name   Type   Use   Default   Fixed   annotation Retraction xs:boolean          Comments xs:string
source	<xs:element name="Type" type="type_infringement_type" minOccurs="0"/>

element Infringement/Detection

diagram
namespace	http://www.movielabs.com/ACNS
type	type_Detection
source	<xs:element name="Detection" type="type_Detection" minOccurs="0"/>

element Infringement/Verification

diagram
namespace	http://www.movielabs.com/ACNS
type	type_Verification
source	<xs:element name="Verification" type="type_Verification" minOccurs="0"/>

element Infringement/InternalTracking

diagram
namespace	http://www.movielabs.com/ACNS
type	type_InternalTracking
attributes	Name   Type   Use   Default   Fixed   annotation CurrentSequence xs:int          InternalCaseNumber xs:string required
source	<xs:element name="InternalTracking" type="type_InternalTracking" minOccurs="0" maxOccurs="unbounded"/>

element Infringement/TextNotice

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="TextNotice" type="xs:string" minOccurs="0"/>

element Infringement/VerifiedData

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:base64Binary
source	<xs:element name="VerifiedData" type="xs:base64Binary" minOccurs="0"/>

element MessageEnvelope

diagram
namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation ReplyEmail xs:string          ReplyURI xs:string optional         id xs:ID
source	<xs:element name="MessageEnvelope">   <xs:complexType>     <xs:sequence>       <xs:element name="Message" type="type_Message" maxOccurs="unbounded"/>       <xs:element ref="ds:Signature" minOccurs="0"/>     </xs:sequence>     <xs:attribute name="ReplyEmail" type="xs:string"/>     <xs:attribute name="ReplyURI" type="xs:string" use="optional"/>     <xs:attribute name="id" type="xs:ID"/>   </xs:complexType> </xs:element>

attribute MessageEnvelope/@ReplyEmail

type	xs:string
source	<xs:attribute name="ReplyEmail" type="xs:string"/>

attribute MessageEnvelope/@ReplyURI

type	xs:string
source	<xs:attribute name="ReplyURI" type="xs:string" use="optional"/>

attribute MessageEnvelope/@id

type	xs:ID
source	<xs:attribute name="id" type="xs:ID"/>

element MessageEnvelope/Message

diagram
namespace	http://www.movielabs.com/ACNS
type	type_Message
attributes	Name   Type   Use   Default   Fixed   annotation Type type_MessageName required         ID xs:string          Created xs:dateTime
source	<xs:element name="Message" type="type_Message" maxOccurs="unbounded"/>

element NoticeAck

diagram
namespace	http://www.movielabs.com/ACNS
type	type_NoticeAck
attributes	Name   Type   Use   Default   Fixed   annotation Accepted xs:boolean          RejectReason derived by: xs:string optional         TimeStamp xs:dateTime          Sequence xs:int optional
source	<xs:element name="NoticeAck" type="type_NoticeAck"/>

element NoticeStatus

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:element name="NoticeStatus">   <xs:complexType>     <xs:sequence>       <xs:element name="CaseStatus" type="type_NoticeStatus" maxOccurs="unbounded"/>       <xs:sequence minOccurs="0">         <xs:element name="StartDateTime" type="xs:dateTime"/>         <xs:element name="EndDateTime" type="xs:dateTime"/>       </xs:sequence>     </xs:sequence>   </xs:complexType> </xs:element>

element NoticeStatus/CaseStatus

diagram
namespace	http://www.movielabs.com/ACNS
type	type_NoticeStatus
attributes	Name   Type   Use   Default   Fixed   annotation CaseID xs:string required         TimeStamp xs:dateTime required         ReqTime xs:dateTime
source	<xs:element name="CaseStatus" type="type_NoticeStatus" maxOccurs="unbounded"/>

element NoticeStatus/StartDateTime

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:dateTime
source	<xs:element name="StartDateTime" type="xs:dateTime"/>

element NoticeStatus/EndDateTime

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:dateTime
source	<xs:element name="EndDateTime" type="xs:dateTime"/>

element StatusRequest

diagram
namespace	http://www.movielabs.com/ACNS
type	type_StatusRequest
attributes	Name   Type   Use   Default   Fixed   annotation TimeStamp xs:dateTime
source	<xs:element name="StatusRequest" type="type_StatusRequest"/>

element StatusUpdate

diagram
namespace	http://www.movielabs.com/ACNS
type	type_StatusUpdate
attributes	Name   Type   Use   Default   Fixed   annotation TimeStamp xs:dateTime required         ReqTime xs:dateTime
source	<xs:element name="StatusUpdate" type="type_StatusUpdate"/>

element Verification

diagram
namespace	http://www.movielabs.com/ACNS
type	type_Verification
source	<xs:element name="Verification" type="type_Verification"/>

complexType Case

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:complexType name="Case">   <xs:all>     <xs:element name="ID" type="xs:string"/>     <xs:element name="Ref_URL" type="xs:anyURI" minOccurs="0"/>     <xs:element name="Status" type="xs:string" minOccurs="0"/>     <xs:element name="Severity" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="Normal"/>           <xs:enumeration value="Low"/>           <xs:enumeration value="High"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:all> </xs:complexType>

element Case/ID

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="ID" type="xs:string"/>

element Case/Ref_URL

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:anyURI
source	<xs:element name="Ref_URL" type="xs:anyURI" minOccurs="0"/>

element Case/Status

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Status" type="xs:string" minOccurs="0"/>

element Case/Severity

diagram
namespace	http://www.movielabs.com/ACNS
type	restriction of xs:string
facets	Kind  Value  annotation  enumeration  Normal  enumeration  Low  enumeration  High
source	<xs:element name="Severity" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="Normal"/>       <xs:enumeration value="Low"/>       <xs:enumeration value="High"/>     </xs:restriction>   </xs:simpleType> </xs:element>

complexType Contact

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:complexType name="Contact">   <xs:all>     <xs:element name="Entity" type="xs:string"/>     <xs:element name="Contact" type="xs:string" minOccurs="0"/>     <xs:element name="Address" type="xs:string" minOccurs="0"/>     <xs:element name="Phone" type="xs:string" minOccurs="0"/>     <xs:element name="Email" type="xs:string"/>     <xs:element name="ContactURL" type="xs:anyURI" minOccurs="0"/>   </xs:all> </xs:complexType>

element Contact/Entity

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Entity" type="xs:string"/>

element Contact/Contact

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Contact" type="xs:string" minOccurs="0"/>

element Contact/Address

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Address" type="xs:string" minOccurs="0"/>

element Contact/Phone

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Phone" type="xs:string" minOccurs="0"/>

element Contact/Email

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Email" type="xs:string"/>

element Contact/ContactURL

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:anyURI
source	<xs:element name="ContactURL" type="xs:anyURI" minOccurs="0"/>

complexType type_AlsoSeen

diagram
namespace	http://www.movielabs.com/ACNS
type	extension of xs:string
attributes	Name   Type   Use   Default   Fixed   annotation Start xs:dateTime required         End xs:dateTime required
source	<xs:complexType name="type_AlsoSeen">   <xs:simpleContent>     <xs:extension base="xs:string">       <xs:attribute name="Start" type="xs:dateTime" use="required"/>       <xs:attribute name="End" type="xs:dateTime" use="required"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute type_AlsoSeen/@Start

type	xs:dateTime
source	<xs:attribute name="Start" type="xs:dateTime" use="required"/>

attribute type_AlsoSeen/@End

type	xs:dateTime
source	<xs:attribute name="End" type="xs:dateTime" use="required"/>

complexType type_Asset

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:complexType name="type_Asset">   <xs:sequence>     <xs:element name="OriginalAssetName" type="xs:string"/>     <xs:element name="OriginalAssetID" minOccurs="0">       <xs:complexType>         <xs:simpleContent>           <xs:extension base="xs:string">             <xs:attribute name="type" type="xs:string" use="required"/>           </xs:extension>         </xs:simpleContent>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element type_Asset/OriginalAssetName

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="OriginalAssetName" type="xs:string"/>

element type_Asset/OriginalAssetID

diagram
namespace	http://www.movielabs.com/ACNS
type	extension of xs:string
attributes	Name   Type   Use   Default   Fixed   annotation type xs:string required
source	<xs:element name="OriginalAssetID" minOccurs="0">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:string">         <xs:attribute name="type" type="xs:string" use="required"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute type_Asset/OriginalAssetID/@type

type	xs:string
source	<xs:attribute name="type" type="xs:string" use="required"/>

complexType type_BinaryImage

diagram
namespace	http://www.movielabs.com/ACNS
type	extension of xmime:base64Binary
attributes	Name   Type   Use   Default   Fixed   annotation contentType
source	<xs:complexType name="type_BinaryImage">   <xs:complexContent>     <xs:extension base="xmime:base64Binary"/>   </xs:complexContent> </xs:complexType>

complexType type_Content

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:complexType name="type_Content">   <xs:sequence>     <xs:element name="Item" type="type_Item" maxOccurs="unbounded"/>   </xs:sequence> </xs:complexType>

element type_Content/Item

diagram
namespace	http://www.movielabs.com/ACNS
type	type_Item
source	<xs:element name="Item" type="type_Item" maxOccurs="unbounded"/>

complexType type_ContentMatched

diagram
namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation Audio xs:boolean          Video xs:boolean          Text xs:boolean          Image xs:boolean          MatchThreshold derived by: xs:int          Fingerprint xs:boolean          Human xs:boolean
source	<xs:complexType name="type_ContentMatched">   <xs:attribute name="Audio" type="xs:boolean"/>   <xs:attribute name="Video" type="xs:boolean"/>   <xs:attribute name="Text" type="xs:boolean"/>   <xs:attribute name="Image" type="xs:boolean"/>   <xs:attribute name="MatchThreshold">     <xs:simpleType>       <xs:restriction base="xs:int">         <xs:minInclusive value="0"/>         <xs:maxInclusive value="100"/>       </xs:restriction>     </xs:simpleType>   </xs:attribute>   <xs:attribute name="Fingerprint" type="xs:boolean"/>   <xs:attribute name="Human" type="xs:boolean"/> </xs:complexType>

attribute type_ContentMatched/@Audio

type	xs:boolean
source	<xs:attribute name="Audio" type="xs:boolean"/>

attribute type_ContentMatched/@Video

type	xs:boolean
source	<xs:attribute name="Video" type="xs:boolean"/>

attribute type_ContentMatched/@Text

type	xs:boolean
source	<xs:attribute name="Text" type="xs:boolean"/>

attribute type_ContentMatched/@Image

type	xs:boolean
source	<xs:attribute name="Image" type="xs:boolean"/>

attribute type_ContentMatched/@MatchThreshold

type	restriction of xs:int
source	<xs:attribute name="MatchThreshold">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="100"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute type_ContentMatched/@Fingerprint

type	xs:boolean
source	<xs:attribute name="Fingerprint" type="xs:boolean"/>

attribute type_ContentMatched/@Human

type	xs:boolean
source	<xs:attribute name="Human" type="xs:boolean"/>

complexType type_CounterNotice

diagram
namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation TimeStamp xs:dateTime required         DMCA xs:boolean
source	<xs:complexType name="type_CounterNotice">   <xs:sequence>     <xs:element name="Service_Provider" type="Contact"/>     <xs:element name="Addl_Contact" type="Contact" minOccurs="0"/>     <xs:element name="Subscriber" type="Contact"/>     <xs:element name="CounternoticeContent" type="type_CounternoticeContent"/>     <xs:element name="Notes" type="xs:string"/>   </xs:sequence>   <xs:attribute name="TimeStamp" type="xs:dateTime" use="required"/>   <xs:attribute name="DMCA" type="xs:boolean"/> </xs:complexType>

attribute type_CounterNotice/@TimeStamp

type	xs:dateTime
source	<xs:attribute name="TimeStamp" type="xs:dateTime" use="required"/>

attribute type_CounterNotice/@DMCA

type	xs:boolean
source	<xs:attribute name="DMCA" type="xs:boolean"/>

element type_CounterNotice/Service_Provider

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="Service_Provider" type="Contact"/>

element type_CounterNotice/Addl_Contact

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="Addl_Contact" type="Contact" minOccurs="0"/>

element type_CounterNotice/Subscriber

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="Subscriber" type="Contact"/>

element type_CounterNotice/CounternoticeContent

diagram
namespace	http://www.movielabs.com/ACNS
type	type_CounternoticeContent
attributes	Name   Type   Use   Default   Fixed   annotation RejectReason derived by: xs:string optional         OtherReason xs:string optional         ProperlySigned xs:boolean optional         Consent xs:boolean optional         Statement xs:string optional
source	<xs:element name="CounternoticeContent" type="type_CounternoticeContent"/>

element type_CounterNotice/Notes

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Notes" type="xs:string"/>

complexType type_CounternoticeContent

diagram
namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation RejectReason derived by: xs:string optional         OtherReason xs:string optional         ProperlySigned xs:boolean optional         Consent xs:boolean optional         Statement xs:string optional
source	<xs:complexType name="type_CounternoticeContent">   <xs:all>     <xs:element name="NoticeText" type="xs:string" minOccurs="0"/>     <xs:element name="NoticeImage" minOccurs="0">       <xs:complexType>         <xs:complexContent>           <xs:extension base="type_BinaryImage"/>         </xs:complexContent>       </xs:complexType>     </xs:element>     <xs:element name="Notes" type="xs:string" minOccurs="0"/>   </xs:all>   <xs:attribute name="RejectReason" use="optional">     <xs:simpleType>       <xs:restriction base="xs:string">         <xs:enumeration value="IOWN"/>         <xs:enumeration value="FAIRUSEFREESPEECH"/>         <xs:enumeration value="MISIDENTIFIED"/>         <xs:enumeration value="OTHER"/>       </xs:restriction>     </xs:simpleType>   </xs:attribute>   <xs:attribute name="OtherReason" type="xs:string" use="optional"/>   <xs:attribute name="ProperlySigned" type="xs:boolean" use="optional"/>   <xs:attribute name="Consent" type="xs:boolean" use="optional"/>   <xs:attribute name="Statement" type="xs:string" use="optional"/> </xs:complexType>

attribute type_CounternoticeContent/@RejectReason

type	restriction of xs:string
facets	Kind  Value  annotation  enumeration  IOWN  enumeration  FAIRUSEFREESPEECH  enumeration  MISIDENTIFIED  enumeration  OTHER
source	<xs:attribute name="RejectReason" use="optional">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="IOWN"/>       <xs:enumeration value="FAIRUSEFREESPEECH"/>       <xs:enumeration value="MISIDENTIFIED"/>       <xs:enumeration value="OTHER"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute type_CounternoticeContent/@OtherReason

type	xs:string
source	<xs:attribute name="OtherReason" type="xs:string" use="optional"/>

attribute type_CounternoticeContent/@ProperlySigned

type	xs:boolean
source	<xs:attribute name="ProperlySigned" type="xs:boolean" use="optional"/>

attribute type_CounternoticeContent/@Consent

type	xs:boolean
source	<xs:attribute name="Consent" type="xs:boolean" use="optional"/>

attribute type_CounternoticeContent/@Statement

type	xs:string
source	<xs:attribute name="Statement" type="xs:string" use="optional"/>

element type_CounternoticeContent/NoticeText

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="NoticeText" type="xs:string" minOccurs="0"/>

element type_CounternoticeContent/NoticeImage

diagram
namespace	http://www.movielabs.com/ACNS
type	extension of type_BinaryImage
attributes	Name   Type   Use   Default   Fixed   annotation contentType
source	<xs:element name="NoticeImage" minOccurs="0">   <xs:complexType>     <xs:complexContent>       <xs:extension base="type_BinaryImage"/>     </xs:complexContent>   </xs:complexType> </xs:element>

element type_CounternoticeContent/Notes

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Notes" type="xs:string" minOccurs="0"/>

complexType type_Detection

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:complexType name="type_Detection">   <xs:sequence>     <xs:element name="Asset" type="type_Asset"/>     <xs:element name="ContentMatched" type="type_ContentMatched" minOccurs="0"/>     <xs:element name="HashMatched" type="xs:boolean" minOccurs="0"/>     <xs:element name="MetadataMatched" type="xs:boolean" minOccurs="0"/>     <xs:element name="WatermarkMatched" type="type_WatermarkMatched" minOccurs="0"/>     <xs:element name="VerificationID" type="xs:string"/>     <xs:element name="VerifiedDataLoc" type="xs:anyURI" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element type_Detection/Asset

diagram
namespace	http://www.movielabs.com/ACNS
type	type_Asset
source	<xs:element name="Asset" type="type_Asset"/>

element type_Detection/ContentMatched

diagram
namespace	http://www.movielabs.com/ACNS
type	type_ContentMatched
attributes	Name   Type   Use   Default   Fixed   annotation Audio xs:boolean          Video xs:boolean          Text xs:boolean          Image xs:boolean          MatchThreshold derived by: xs:int          Fingerprint xs:boolean          Human xs:boolean
source	<xs:element name="ContentMatched" type="type_ContentMatched" minOccurs="0"/>

element type_Detection/HashMatched

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:boolean
source	<xs:element name="HashMatched" type="xs:boolean" minOccurs="0"/>

element type_Detection/MetadataMatched

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:boolean
source	<xs:element name="MetadataMatched" type="xs:boolean" minOccurs="0"/>

element type_Detection/WatermarkMatched

diagram
namespace	http://www.movielabs.com/ACNS
type	type_WatermarkMatched
attributes	Name   Type   Use   Default   Fixed   annotation type xs:string required         payload xs:string
source	<xs:element name="WatermarkMatched" type="type_WatermarkMatched" minOccurs="0"/>

element type_Detection/VerificationID

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="VerificationID" type="xs:string"/>

element type_Detection/VerifiedDataLoc

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:anyURI
source	<xs:element name="VerifiedDataLoc" type="xs:anyURI" minOccurs="0"/>

complexType type_Disposition

diagram
namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation Sequence xs:int required         Start xs:dateTime required         End xs:dateTime
source	<xs:complexType name="type_Disposition">   <xs:sequence>     <xs:element name="InternalStatus" type="xs:string"/>     <xs:element name="Comments" type="xs:string" minOccurs="0"/>     <xs:element name="Contact" type="Contact"/>   </xs:sequence>   <xs:attribute name="Sequence" type="xs:int" use="required"/>   <xs:attribute name="Start" type="xs:dateTime" use="required"/>   <xs:attribute name="End" type="xs:dateTime"/> </xs:complexType>

attribute type_Disposition/@Sequence

type	xs:int
source	<xs:attribute name="Sequence" type="xs:int" use="required"/>

attribute type_Disposition/@Start

type	xs:dateTime
source	<xs:attribute name="Start" type="xs:dateTime" use="required"/>

attribute type_Disposition/@End

type	xs:dateTime
source	<xs:attribute name="End" type="xs:dateTime"/>

element type_Disposition/InternalStatus

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="InternalStatus" type="xs:string"/>

element type_Disposition/Comments

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Comments" type="xs:string" minOccurs="0"/>

element type_Disposition/Contact

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="Contact" type="Contact"/>

complexType type_GRStatus

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:complexType name="type_GRStatus">   <xs:sequence>     <xs:element name="NetworkCaseID" minOccurs="0"/>     <xs:element name="NetworkInfringementID" type="xs:string" minOccurs="0"/>     <xs:element name="NetworkIncidentID" type="xs:string" minOccurs="0"/>     <xs:element name="ActionTaken" minOccurs="0" maxOccurs="unbounded">       <xs:complexType>         <xs:sequence>           <xs:element name="Type" type="xs:string"/>           <xs:element name="Time" type="xs:dateTime"/>           <xs:element name="AdditionalData" minOccurs="0">             <xs:complexType>               <xs:simpleContent>                 <xs:extension base="xs:string"/>               </xs:simpleContent>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="UserData" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="AnonUserIdentifier" type="xs:string" minOccurs="0"/>           <xs:element name="TotalCaseCount" type="xs:int" minOccurs="0"/>           <xs:element name="TotalInfringementCount" type="xs:int" minOccurs="0"/>           <xs:element name="TotalIncidentCount" type="xs:int" minOccurs="0"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element type_GRStatus/NetworkCaseID

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:element name="NetworkCaseID" minOccurs="0"/>

element type_GRStatus/NetworkInfringementID

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="NetworkInfringementID" type="xs:string" minOccurs="0"/>

element type_GRStatus/NetworkIncidentID

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="NetworkIncidentID" type="xs:string" minOccurs="0"/>

element type_GRStatus/ActionTaken

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:element name="ActionTaken" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="Type" type="xs:string"/>       <xs:element name="Time" type="xs:dateTime"/>       <xs:element name="AdditionalData" minOccurs="0">         <xs:complexType>           <xs:simpleContent>             <xs:extension base="xs:string"/>           </xs:simpleContent>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element type_GRStatus/ActionTaken/Type

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Type" type="xs:string"/>

element type_GRStatus/ActionTaken/Time

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:dateTime
source	<xs:element name="Time" type="xs:dateTime"/>

element type_GRStatus/ActionTaken/AdditionalData

diagram
namespace	http://www.movielabs.com/ACNS
type	extension of xs:string
source	<xs:element name="AdditionalData" minOccurs="0">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:string"/>     </xs:simpleContent>   </xs:complexType> </xs:element>

element type_GRStatus/UserData

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:element name="UserData" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="AnonUserIdentifier" type="xs:string" minOccurs="0"/>       <xs:element name="TotalCaseCount" type="xs:int" minOccurs="0"/>       <xs:element name="TotalInfringementCount" type="xs:int" minOccurs="0"/>       <xs:element name="TotalIncidentCount" type="xs:int" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element type_GRStatus/UserData/AnonUserIdentifier

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="AnonUserIdentifier" type="xs:string" minOccurs="0"/>

element type_GRStatus/UserData/TotalCaseCount

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:int
source	<xs:element name="TotalCaseCount" type="xs:int" minOccurs="0"/>

element type_GRStatus/UserData/TotalInfringementCount

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:int
source	<xs:element name="TotalInfringementCount" type="xs:int" minOccurs="0"/>

element type_GRStatus/UserData/TotalIncidentCount

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:int
source	<xs:element name="TotalIncidentCount" type="xs:int" minOccurs="0"/>

complexType type_Hash

diagram
namespace	http://www.movielabs.com/ACNS
type	extension of xs:string
attributes	Name   Type   Use   Default   Fixed   annotation Type xs:string required
source	<xs:complexType name="type_Hash">   <xs:simpleContent>     <xs:extension base="xs:string">       <xs:attribute name="Type" type="xs:string" use="required"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute type_Hash/@Type

type	xs:string
source	<xs:attribute name="Type" type="xs:string" use="required"/>

complexType type_infringement_type

diagram
namespace	http://www.movielabs.com/ACNS
type	extension of type_infringement_type_enumeration
facets	Kind  Value  annotation  enumeration  OTHER  enumeration  INFRINGEMENT  enumeration  PRELIT  enumeration  INFO  enumeration  DMCA
attributes	Name   Type   Use   Default   Fixed   annotation Retraction xs:boolean          Comments xs:string
source	<xs:complexType name="type_infringement_type">   <xs:simpleContent>     <xs:extension base="type_infringement_type_enumeration">       <xs:attribute name="Retraction" type="xs:boolean"/>       <xs:attribute name="Comments" type="xs:string"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute type_infringement_type/@Retraction

type	xs:boolean
source	<xs:attribute name="Retraction" type="xs:boolean"/>

attribute type_infringement_type/@Comments

type	xs:string
source	<xs:attribute name="Comments" type="xs:string"/>

complexType type_InternalTracking

diagram
namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation CurrentSequence xs:int          InternalCaseNumber xs:string required
source	<xs:complexType name="type_InternalTracking">   <xs:sequence>     <xs:element name="PrimarySubject" type="type_Subject"/>     <xs:element name="Disposition" type="type_Disposition" minOccurs="0"/>     <xs:element name="Mapping" type="type_Mapping" minOccurs="0"/>   </xs:sequence>   <xs:attribute name="CurrentSequence" type="xs:int"/>   <xs:attribute name="InternalCaseNumber" type="xs:string" use="required"/> </xs:complexType>

attribute type_InternalTracking/@CurrentSequence

type	xs:int
source	<xs:attribute name="CurrentSequence" type="xs:int"/>

attribute type_InternalTracking/@InternalCaseNumber

type	xs:string
source	<xs:attribute name="InternalCaseNumber" type="xs:string" use="required"/>

element type_InternalTracking/PrimarySubject

diagram
namespace	http://www.movielabs.com/ACNS
type	type_Subject
source	<xs:element name="PrimarySubject" type="type_Subject"/>

element type_InternalTracking/Disposition

diagram
namespace	http://www.movielabs.com/ACNS
type	type_Disposition
attributes	Name   Type   Use   Default   Fixed   annotation Sequence xs:int required         Start xs:dateTime required         End xs:dateTime
source	<xs:element name="Disposition" type="type_Disposition" minOccurs="0"/>

element type_InternalTracking/Mapping

diagram
namespace	http://www.movielabs.com/ACNS
type	type_Mapping
attributes	Name   Type   Use   Default   Fixed   annotation OriginalIP type_IPAddress required         OriginalPort type_Port required         MappedIP type_IPAddress required         MappedPort type_Port optional         MappedProtocol derived by: xs:int optional         Time xs:dateTime required         LeaseTime xs:time          LeaseHeld xs:time
source	<xs:element name="Mapping" type="type_Mapping" minOccurs="0"/>

complexType type_IPAssignee

diagram
namespace	http://www.movielabs.com/ACNS
type	extension of type_Subject
attributes	Name   Type   Use   Default   Fixed   annotation Primary xs:boolean          Relationship xs:string
source	<xs:complexType name="type_IPAssignee">   <xs:complexContent>     <xs:extension base="type_Subject">       <xs:attribute name="Primary" type="xs:boolean"/>       <xs:attribute name="Relationship" type="xs:string"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute type_IPAssignee/@Primary

type	xs:boolean
source	<xs:attribute name="Primary" type="xs:boolean"/>

attribute type_IPAssignee/@Relationship

type	xs:string
source	<xs:attribute name="Relationship" type="xs:string"/>

complexType type_Item

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:complexType name="type_Item">   <xs:sequence>     <xs:element name="TimeStamp" type="xs:dateTime"/>     <xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>     <xs:element name="Title" type="xs:string" minOccurs="0"/>     <xs:element name="Artist" type="xs:string" minOccurs="0"/>     <xs:element name="FileName">       <xs:simpleType>         <xs:restriction base="xs:string"/>       </xs:simpleType>     </xs:element>     <xs:element name="FileSize" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="URL" type="xs:anyURI" minOccurs="0"/>     <xs:element name="HostURI" type="xs:anyURI" minOccurs="0"/>     <xs:element name="Type" type="xs:string" minOccurs="0"/>     <xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>     <xs:element name="Hash" type="type_Hash" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element type_Item/TimeStamp

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:dateTime
source	<xs:element name="TimeStamp" type="xs:dateTime"/>

element type_Item/AlsoSeen

diagram
namespace	http://www.movielabs.com/ACNS
type	type_AlsoSeen
attributes	Name   Type   Use   Default   Fixed   annotation Start xs:dateTime required         End xs:dateTime required
source	<xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>

element type_Item/Title

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Title" type="xs:string" minOccurs="0"/>

element type_Item/Artist

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Artist" type="xs:string" minOccurs="0"/>

element type_Item/FileName

diagram
namespace	http://www.movielabs.com/ACNS
type	restriction of xs:string
source	<xs:element name="FileName">   <xs:simpleType>     <xs:restriction base="xs:string"/>   </xs:simpleType> </xs:element>

element type_Item/FileSize

diagram
namespace	http://www.movielabs.com/ACNS
type	restriction of xs:int
source	<xs:element name="FileSize" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element type_Item/URL

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:anyURI
source	<xs:element name="URL" type="xs:anyURI" minOccurs="0"/>

element type_Item/HostURI

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:anyURI
source	<xs:element name="HostURI" type="xs:anyURI" minOccurs="0"/>

element type_Item/Type

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Type" type="xs:string" minOccurs="0"/>

element type_Item/ExplicitType

diagram
namespace	http://www.movielabs.com/ACNS
type	type_ExplicitType
facets	Kind  Value  annotation  enumeration  Movie  enumeration  Game  enumeration  Software  enumeration  Music  enumeration  Document  enumeration  Image
source	<xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>

element type_Item/Hash

diagram
namespace	http://www.movielabs.com/ACNS
type	type_Hash
attributes	Name   Type   Use   Default   Fixed   annotation Type xs:string required
source	<xs:element name="Hash" type="type_Hash" minOccurs="0"/>

complexType type_Mapping

diagram
namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation OriginalIP type_IPAddress required         OriginalPort type_Port required         MappedIP type_IPAddress required         MappedPort type_Port optional         MappedProtocol derived by: xs:int optional         Time xs:dateTime required         LeaseTime xs:time          LeaseHeld xs:time
source	<xs:complexType name="type_Mapping">   <xs:attributeGroup ref="type_OriginalIPPortAttribute"/>   <xs:attributeGroup ref="type_MappedIPPortAttribute"/>   <xs:attribute name="Time" type="xs:dateTime" use="required"/>   <xs:attribute name="LeaseTime" type="xs:time"/>   <xs:attribute name="LeaseHeld" type="xs:time"/> </xs:complexType>

attribute type_Mapping/@Time

type	xs:dateTime
source	<xs:attribute name="Time" type="xs:dateTime" use="required"/>

attribute type_Mapping/@LeaseTime

type	xs:time
source	<xs:attribute name="LeaseTime" type="xs:time"/>

attribute type_Mapping/@LeaseHeld

type	xs:time
source	<xs:attribute name="LeaseHeld" type="xs:time"/>

complexType type_Message

diagram
namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation Type type_MessageName required         ID xs:string          Created xs:dateTime
source	<xs:complexType name="type_Message">   <xs:choice>     <xs:element ref="Infringement"/>     <xs:element ref="NoticeAck"/>     <xs:element ref="NoticeStatus"/>     <xs:element ref="StatusRequest"/>   </xs:choice>   <xs:attribute name="Type" type="type_MessageName" use="required"/>   <xs:attribute name="ID" type="xs:string"/>   <xs:attribute name="Created" type="xs:dateTime"/> </xs:complexType>

attribute type_Message/@Type

type	type_MessageName
facets	Kind  Value  annotation  enumeration  ACNS2.0Notice  enumeration  ACNS0.7Notice  enumeration  ACNSNoticeAck  enumeration  ACNSStatusRequest  enumeration  ACNSNoticeStatus
source	<xs:attribute name="Type" type="type_MessageName" use="required"/>

attribute type_Message/@ID

type	xs:string
source	<xs:attribute name="ID" type="xs:string"/>

attribute type_Message/@Created

type	xs:dateTime
source	<xs:attribute name="Created" type="xs:dateTime"/>

complexType type_NoticeAck

diagram
namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation Accepted xs:boolean          RejectReason derived by: xs:string optional         TimeStamp xs:dateTime          Sequence xs:int optional
source	<xs:complexType name="type_NoticeAck">   <xs:all>     <xs:element name="Case" type="Case"/>     <xs:element name="Complianant" type="Contact"/>     <xs:element name="Service_Provider" type="Contact"/>     <xs:element name="Addl_Contact" type="Contact" minOccurs="0"/>     <xs:element name="Notes" type="xs:string"/>   </xs:all>   <xs:attribute name="Accepted" type="xs:boolean"/>   <xs:attribute name="RejectReason" use="optional">     <xs:simpleType>       <xs:restriction base="xs:string">         <xs:enumeration value="UNKNOWN_RECIPIENT"/>         <xs:enumeration value="IP_OUT_OF_RANGE"/>         <xs:enumeration value="MULTIPLE"/>       </xs:restriction>     </xs:simpleType>   </xs:attribute>   <xs:attribute name="TimeStamp" type="xs:dateTime"/>   <xs:attribute name="Sequence" type="xs:int" use="optional"/> </xs:complexType>

attribute type_NoticeAck/@Accepted

type	xs:boolean
source	<xs:attribute name="Accepted" type="xs:boolean"/>

attribute type_NoticeAck/@RejectReason

type	restriction of xs:string
facets	Kind  Value  annotation  enumeration  UNKNOWN_RECIPIENT  enumeration  IP_OUT_OF_RANGE  enumeration  MULTIPLE
source	<xs:attribute name="RejectReason" use="optional">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="UNKNOWN_RECIPIENT"/>       <xs:enumeration value="IP_OUT_OF_RANGE"/>       <xs:enumeration value="MULTIPLE"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute type_NoticeAck/@TimeStamp

type	xs:dateTime
source	<xs:attribute name="TimeStamp" type="xs:dateTime"/>

attribute type_NoticeAck/@Sequence

type	xs:int
source	<xs:attribute name="Sequence" type="xs:int" use="optional"/>

element type_NoticeAck/Case

diagram
namespace	http://www.movielabs.com/ACNS
type	Case
source	<xs:element name="Case" type="Case"/>

element type_NoticeAck/Complianant

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="Complianant" type="Contact"/>

element type_NoticeAck/Service_Provider

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="Service_Provider" type="Contact"/>

element type_NoticeAck/Addl_Contact

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="Addl_Contact" type="Contact" minOccurs="0"/>

element type_NoticeAck/Notes

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Notes" type="xs:string"/>

complexType type_NoticeAckList

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:complexType name="type_NoticeAckList">   <xs:sequence>     <xs:element ref="NoticeAck" maxOccurs="unbounded"/>   </xs:sequence> </xs:complexType>

complexType type_NoticeStatus

diagram
namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation CaseID xs:string required         TimeStamp xs:dateTime required         ReqTime xs:dateTime
source	<xs:complexType name="type_NoticeStatus">   <xs:sequence>     <xs:element name="Disposition" type="type_StatusDisposition"/>     <xs:choice minOccurs="0">       <xs:element name="GRStatus" type="type_GRStatus"/>       <xs:element name="UsenetStatus" type="type_UsenetDisposition"/>     </xs:choice>     <xs:element name="Source" type="type_StatusSource" minOccurs="0"/>     <xs:element name="HumanInt" type="Contact" minOccurs="0"/>     <xs:element name="CounterNotice" type="type_CounterNotice" minOccurs="0"/>     <xs:element name="Notes" type="xs:string" minOccurs="0"/>   </xs:sequence>   <xs:attribute name="CaseID" type="xs:string" use="required"/>   <xs:attribute name="TimeStamp" type="xs:dateTime" use="required"/>   <xs:attribute name="ReqTime" type="xs:dateTime"/> </xs:complexType>

attribute type_NoticeStatus/@CaseID

type	xs:string
source	<xs:attribute name="CaseID" type="xs:string" use="required"/>

attribute type_NoticeStatus/@TimeStamp

type	xs:dateTime
source	<xs:attribute name="TimeStamp" type="xs:dateTime" use="required"/>

attribute type_NoticeStatus/@ReqTime

type	xs:dateTime
source	<xs:attribute name="ReqTime" type="xs:dateTime"/>

element type_NoticeStatus/Disposition

diagram
namespace	http://www.movielabs.com/ACNS
type	type_StatusDisposition
source	<xs:element name="Disposition" type="type_StatusDisposition"/>

element type_NoticeStatus/GRStatus

diagram
namespace	http://www.movielabs.com/ACNS
type	type_GRStatus
source	<xs:element name="GRStatus" type="type_GRStatus"/>

element type_NoticeStatus/UsenetStatus

diagram
namespace	http://www.movielabs.com/ACNS
type	type_UsenetDisposition
source	<xs:element name="UsenetStatus" type="type_UsenetDisposition"/>

element type_NoticeStatus/Source

diagram
namespace	http://www.movielabs.com/ACNS
type	type_StatusSource
source	<xs:element name="Source" type="type_StatusSource" minOccurs="0"/>

element type_NoticeStatus/HumanInt

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="HumanInt" type="Contact" minOccurs="0"/>

element type_NoticeStatus/CounterNotice

diagram
namespace	http://www.movielabs.com/ACNS
type	type_CounterNotice
attributes	Name   Type   Use   Default   Fixed   annotation TimeStamp xs:dateTime required         DMCA xs:boolean
source	<xs:element name="CounterNotice" type="type_CounterNotice" minOccurs="0"/>

element type_NoticeStatus/Notes

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Notes" type="xs:string" minOccurs="0"/>

complexType type_StatusDisposition

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:complexType name="type_StatusDisposition">   <xs:sequence>     <xs:element name="Type">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="OPEN"/>           <xs:enumeration value="CLOSED"/>           <xs:enumeration value="REJECTED"/>           <xs:enumeration value="COUNTERNOTICE"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="Reason" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:string"/>       </xs:simpleType>     </xs:element>     <xs:element name="FirstProcessedDate" type="xs:dateTime"/>     <xs:element name="LastModifiedDate" type="xs:dateTime"/>   </xs:sequence> </xs:complexType>

element type_StatusDisposition/Type

diagram
namespace	http://www.movielabs.com/ACNS
type	restriction of xs:string
facets	Kind  Value  annotation  enumeration  OPEN  enumeration  CLOSED  enumeration  REJECTED  enumeration  COUNTERNOTICE
source	<xs:element name="Type">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="OPEN"/>       <xs:enumeration value="CLOSED"/>       <xs:enumeration value="REJECTED"/>       <xs:enumeration value="COUNTERNOTICE"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element type_StatusDisposition/Reason

diagram
namespace	http://www.movielabs.com/ACNS
type	restriction of xs:string
source	<xs:element name="Reason" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:string"/>   </xs:simpleType> </xs:element>

element type_StatusDisposition/FirstProcessedDate

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:dateTime
source	<xs:element name="FirstProcessedDate" type="xs:dateTime"/>

element type_StatusDisposition/LastModifiedDate

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:dateTime
source	<xs:element name="LastModifiedDate" type="xs:dateTime"/>

complexType type_StatusRequest

diagram
namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation TimeStamp xs:dateTime
source	<xs:complexType name="type_StatusRequest">   <xs:sequence>     <xs:choice>       <xs:element name="Case" type="Case" maxOccurs="unbounded"/>       <xs:sequence>         <xs:element name="StartDateTime" type="xs:dateTime"/>         <xs:element name="EndDateTime" type="xs:dateTime"/>       </xs:sequence>     </xs:choice>     <xs:element name="Complainant" type="Contact"/>     <xs:element name="ServiceProvider" type="Contact"/>   </xs:sequence>   <xs:attribute name="TimeStamp" type="xs:dateTime"/> </xs:complexType>

attribute type_StatusRequest/@TimeStamp

type	xs:dateTime
source	<xs:attribute name="TimeStamp" type="xs:dateTime"/>

element type_StatusRequest/Case

diagram
namespace	http://www.movielabs.com/ACNS
type	Case
source	<xs:element name="Case" type="Case" maxOccurs="unbounded"/>

element type_StatusRequest/StartDateTime

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:dateTime
source	<xs:element name="StartDateTime" type="xs:dateTime"/>

element type_StatusRequest/EndDateTime

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:dateTime
source	<xs:element name="EndDateTime" type="xs:dateTime"/>

element type_StatusRequest/Complainant

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="Complainant" type="Contact"/>

element type_StatusRequest/ServiceProvider

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="ServiceProvider" type="Contact"/>

complexType type_StatusSource

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:complexType name="type_StatusSource">   <xs:sequence>     <xs:element name="Complainant" type="Contact"/>     <xs:element name="Service_Provider" type="Contact"/>     <xs:element name="Content" type="type_Content" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element type_StatusSource/Complainant

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="Complainant" type="Contact"/>

element type_StatusSource/Service_Provider

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="Service_Provider" type="Contact"/>

element type_StatusSource/Content

diagram
namespace	http://www.movielabs.com/ACNS
type	type_Content
source	<xs:element name="Content" type="type_Content" minOccurs="0"/>

complexType type_StatusUpdate

diagram
namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation TimeStamp xs:dateTime required         ReqTime xs:dateTime
source	<xs:complexType name="type_StatusUpdate">   <xs:all>     <xs:element name="Case" type="Case"/>     <xs:element name="Complainant" type="Contact"/>     <xs:element name="Service_Provider" type="Contact"/>     <xs:element name="HumanInt" type="Contact" minOccurs="0"/>     <xs:element name="Disposition">       <xs:complexType>         <xs:attribute name="Status">           <xs:simpleType>             <xs:restriction base="xs:string">               <xs:enumeration value="OPEN"/>               <xs:enumeration value="CLOSED"/>               <xs:enumeration value="REJECTED"/>               <xs:enumeration value="COUNTERNOTICE"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="infoStatus" use="optional">           <xs:simpleType>             <xs:restriction base="xs:string">               <xs:enumeration value="INFO"/>               <xs:enumeration value="ACTION"/>               <xs:enumeration value="TERM"/>               <xs:enumeration value="NOACTION"/>               <xs:enumeration value="NONEPOS"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="Level" type="xs:int"/>       </xs:complexType>     </xs:element>     <xs:element name="DispositionUsenet" type="type_UsenetDisposition" minOccurs="0"/>     <xs:element name="CounterNotice" type="type_CounterNotice" minOccurs="0"/>     <xs:element name="NoticeAckList" type="type_NoticeAckList" minOccurs="0"/>     <xs:element name="Content" type="type_Content" minOccurs="0"/>     <xs:element name="Notes" type="xs:string" minOccurs="0"/>   </xs:all>   <xs:attribute name="TimeStamp" type="xs:dateTime" use="required"/>   <xs:attribute name="ReqTime" type="xs:dateTime"/> </xs:complexType>

attribute type_StatusUpdate/@TimeStamp

type	xs:dateTime
source	<xs:attribute name="TimeStamp" type="xs:dateTime" use="required"/>

attribute type_StatusUpdate/@ReqTime

type	xs:dateTime
source	<xs:attribute name="ReqTime" type="xs:dateTime"/>

element type_StatusUpdate/Case

diagram
namespace	http://www.movielabs.com/ACNS
type	Case
source	<xs:element name="Case" type="Case"/>

element type_StatusUpdate/Complainant

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="Complainant" type="Contact"/>

element type_StatusUpdate/Service_Provider

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="Service_Provider" type="Contact"/>

element type_StatusUpdate/HumanInt

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="HumanInt" type="Contact" minOccurs="0"/>

element type_StatusUpdate/Disposition

diagram
namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation Status derived by: xs:string          infoStatus derived by: xs:string optional         Level xs:int
source	<xs:element name="Disposition">   <xs:complexType>     <xs:attribute name="Status">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="OPEN"/>           <xs:enumeration value="CLOSED"/>           <xs:enumeration value="REJECTED"/>           <xs:enumeration value="COUNTERNOTICE"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="infoStatus" use="optional">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="INFO"/>           <xs:enumeration value="ACTION"/>           <xs:enumeration value="TERM"/>           <xs:enumeration value="NOACTION"/>           <xs:enumeration value="NONEPOS"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="Level" type="xs:int"/>   </xs:complexType> </xs:element>

attribute type_StatusUpdate/Disposition/@Status

type	restriction of xs:string
facets	Kind  Value  annotation  enumeration  OPEN  enumeration  CLOSED  enumeration  REJECTED  enumeration  COUNTERNOTICE
source	<xs:attribute name="Status">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="OPEN"/>       <xs:enumeration value="CLOSED"/>       <xs:enumeration value="REJECTED"/>       <xs:enumeration value="COUNTERNOTICE"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute type_StatusUpdate/Disposition/@infoStatus

type	restriction of xs:string
facets	Kind  Value  annotation  enumeration  INFO  enumeration  ACTION  enumeration  TERM  enumeration  NOACTION  enumeration  NONEPOS
source	<xs:attribute name="infoStatus" use="optional">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="INFO"/>       <xs:enumeration value="ACTION"/>       <xs:enumeration value="TERM"/>       <xs:enumeration value="NOACTION"/>       <xs:enumeration value="NONEPOS"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute type_StatusUpdate/Disposition/@Level

type	xs:int
source	<xs:attribute name="Level" type="xs:int"/>

element type_StatusUpdate/DispositionUsenet

diagram
namespace	http://www.movielabs.com/ACNS
type	type_UsenetDisposition
source	<xs:element name="DispositionUsenet" type="type_UsenetDisposition" minOccurs="0"/>

element type_StatusUpdate/CounterNotice

diagram
namespace	http://www.movielabs.com/ACNS
type	type_CounterNotice
attributes	Name   Type   Use   Default   Fixed   annotation TimeStamp xs:dateTime required         DMCA xs:boolean
source	<xs:element name="CounterNotice" type="type_CounterNotice" minOccurs="0"/>

element type_StatusUpdate/NoticeAckList

diagram
namespace	http://www.movielabs.com/ACNS
type	type_NoticeAckList
source	<xs:element name="NoticeAckList" type="type_NoticeAckList" minOccurs="0"/>

element type_StatusUpdate/Content

diagram
namespace	http://www.movielabs.com/ACNS
type	type_Content
source	<xs:element name="Content" type="type_Content" minOccurs="0"/>

element type_StatusUpdate/Notes

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Notes" type="xs:string" minOccurs="0"/>

complexType type_Subject

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:complexType name="type_Subject">   <xs:sequence>     <xs:element name="SubjectContact" type="Contact"/>     <xs:element name="SubjectID">       <xs:complexType>         <xs:simpleContent>           <xs:extension base="xs:string">             <xs:attribute name="type" type="xs:string"/>           </xs:extension>         </xs:simpleContent>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element type_Subject/SubjectContact

diagram
namespace	http://www.movielabs.com/ACNS
type	Contact
source	<xs:element name="SubjectContact" type="Contact"/>

element type_Subject/SubjectID

diagram
namespace	http://www.movielabs.com/ACNS
type	extension of xs:string
attributes	Name   Type   Use   Default   Fixed   annotation type xs:string
source	<xs:element name="SubjectID">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:string">         <xs:attribute name="type" type="xs:string"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute type_Subject/SubjectID/@type

type	xs:string
source	<xs:attribute name="type" type="xs:string"/>

complexType type_UsenetDisposition

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:complexType name="type_UsenetDisposition">   <xs:sequence>     <xs:element name="Article" type="xs:anyURI"/>     <xs:element name="Removed" type="xs:boolean"/>     <xs:element name="CancelMsg" type="xs:boolean" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element type_UsenetDisposition/Article

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:anyURI
source	<xs:element name="Article" type="xs:anyURI"/>

element type_UsenetDisposition/Removed

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:boolean
source	<xs:element name="Removed" type="xs:boolean"/>

element type_UsenetDisposition/CancelMsg

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:boolean
source	<xs:element name="CancelMsg" type="xs:boolean" minOccurs="0"/>

complexType type_Verification

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:complexType name="type_Verification">   <xs:sequence>     <xs:element name="VerificationLevel" minOccurs="0">       <xs:complexType>         <xs:simpleContent>           <xs:extension base="xs:int">             <xs:attribute name="Type" type="xs:string"/>           </xs:extension>         </xs:simpleContent>       </xs:complexType>     </xs:element>     <xs:element name="Notes" type="xs:string" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element type_Verification/VerificationLevel

diagram
namespace	http://www.movielabs.com/ACNS
type	extension of xs:int
attributes	Name   Type   Use   Default   Fixed   annotation Type xs:string
source	<xs:element name="VerificationLevel" minOccurs="0">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:int">         <xs:attribute name="Type" type="xs:string"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute type_Verification/VerificationLevel/@Type

type	xs:string
source	<xs:attribute name="Type" type="xs:string"/>

element type_Verification/Notes

diagram
namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:element name="Notes" type="xs:string" minOccurs="0"/>

complexType type_VerificationLevel

diagram
namespace	http://www.movielabs.com/ACNS
type	extension of xs:int
attributes	Name   Type   Use   Default   Fixed   annotation Type xs:string
source	<xs:complexType name="type_VerificationLevel">   <xs:simpleContent>     <xs:extension base="xs:int">       <xs:attribute name="Type" type="xs:string"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute type_VerificationLevel/@Type

type	xs:string
source	<xs:attribute name="Type" type="xs:string"/>

complexType type_VerifiedImage

diagram
namespace	http://www.movielabs.com/ACNS
source	<xs:complexType name="type_VerifiedImage">   <xs:sequence>     <xs:sequence>       <xs:element name="VerifiedImageBinary" maxOccurs="unbounded">         <xs:complexType>           <xs:simpleContent>             <xs:extension base="xs:base64Binary">               <xs:attribute name="title" type="xs:string"/>             </xs:extension>           </xs:simpleContent>         </xs:complexType>       </xs:element>       <xs:element name="VerifiedImageLocation" maxOccurs="unbounded">         <xs:complexType>           <xs:simpleContent>             <xs:extension base="xs:anyURI">               <xs:attribute name="title"/>               <xs:attribute name="username"/>               <xs:attribute name="password"/>             </xs:extension>           </xs:simpleContent>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:sequence> </xs:complexType>

element type_VerifiedImage/VerifiedImageBinary

diagram
namespace	http://www.movielabs.com/ACNS
type	extension of xs:base64Binary
attributes	Name   Type   Use   Default   Fixed   annotation title xs:string
source	<xs:element name="VerifiedImageBinary" maxOccurs="unbounded">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:base64Binary">         <xs:attribute name="title" type="xs:string"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute type_VerifiedImage/VerifiedImageBinary/@title

type	xs:string
source	<xs:attribute name="title" type="xs:string"/>

element type_VerifiedImage/VerifiedImageLocation

diagram
namespace	http://www.movielabs.com/ACNS
type	extension of xs:anyURI
attributes	Name   Type   Use   Default   Fixed   annotation title          username          password
source	<xs:element name="VerifiedImageLocation" maxOccurs="unbounded">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:anyURI">         <xs:attribute name="title"/>         <xs:attribute name="username"/>         <xs:attribute name="password"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute type_VerifiedImage/VerifiedImageLocation/@title

source

<xs:attribute name="title"/>

attribute type_VerifiedImage/VerifiedImageLocation/@username

source

<xs:attribute name="username"/>

attribute type_VerifiedImage/VerifiedImageLocation/@password

source

<xs:attribute name="password"/>

complexType type_WatermarkMatched

diagram
namespace	http://www.movielabs.com/ACNS
type	extension of xs:string
attributes	Name   Type   Use   Default   Fixed   annotation type xs:string required         payload xs:string
source	<xs:complexType name="type_WatermarkMatched">   <xs:simpleContent>     <xs:extension base="xs:string">       <xs:attribute name="type" type="xs:string" use="required"/>       <xs:attribute name="payload" type="xs:string"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute type_WatermarkMatched/@type

type	xs:string
source	<xs:attribute name="type" type="xs:string" use="required"/>

attribute type_WatermarkMatched/@payload

type	xs:string
source	<xs:attribute name="payload" type="xs:string"/>

simpleType type_ExplicitType

namespace	http://www.movielabs.com/ACNS
type	restriction of xs:string
facets	Kind  Value  annotation  enumeration  Movie  enumeration  Game  enumeration  Software  enumeration  Music  enumeration  Document  enumeration  Image
source	<xs:simpleType name="type_ExplicitType">   <xs:restriction base="xs:string">     <xs:enumeration value="Movie"/>     <xs:enumeration value="Game"/>     <xs:enumeration value="Software"/>     <xs:enumeration value="Music"/>     <xs:enumeration value="Document"/>     <xs:enumeration value="Image"/>   </xs:restriction> </xs:simpleType>

simpleType type_infringement_type_enumeration

namespace	http://www.movielabs.com/ACNS
type	restriction of xs:string
facets	Kind  Value  annotation  enumeration  OTHER  enumeration  INFRINGEMENT  enumeration  PRELIT  enumeration  INFO  enumeration  DMCA
source	<xs:simpleType name="type_infringement_type_enumeration">   <xs:restriction base="xs:string">     <xs:enumeration value="OTHER"/>     <xs:enumeration value="INFRINGEMENT"/>     <xs:enumeration value="PRELIT"/>     <xs:enumeration value="INFO"/>     <xs:enumeration value="DMCA"/>   </xs:restriction> </xs:simpleType>

simpleType type_IPAddress

namespace	http://www.movielabs.com/ACNS
type	xs:string
source	<xs:simpleType name="type_IPAddress">   <xs:restriction base="xs:string"/> </xs:simpleType>

simpleType type_MessageName

namespace	http://www.movielabs.com/ACNS
type	restriction of xs:string
facets	Kind  Value  annotation  enumeration  ACNS2.0Notice  enumeration  ACNS0.7Notice  enumeration  ACNSNoticeAck  enumeration  ACNSStatusRequest  enumeration  ACNSNoticeStatus
source	<xs:simpleType name="type_MessageName">   <xs:restriction base="xs:string">     <xs:enumeration value="ACNS2.0Notice"/>     <xs:enumeration value="ACNS0.7Notice"/>     <xs:enumeration value="ACNSNoticeAck"/>     <xs:enumeration value="ACNSStatusRequest"/>     <xs:enumeration value="ACNSNoticeStatus"/>   </xs:restriction> </xs:simpleType>

simpleType type_Port

namespace	http://www.movielabs.com/ACNS
type	restriction of xs:int
source	<xs:simpleType name="type_Port">   <xs:restriction base="xs:int">     <xs:minInclusive value="0"/>     <xs:maxInclusive value="65535"/>   </xs:restriction> </xs:simpleType>

attributeGroup type_contentType

namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation contentType derived by: xs:string required
source	<xs:attributeGroup name="type_contentType">   <xs:attribute name="contentType" use="required">     <xs:simpleType>       <xs:restriction base="xs:string">         <xs:minLength value="3"/>       </xs:restriction>     </xs:simpleType>   </xs:attribute> </xs:attributeGroup>

attribute type_contentType/@contentType

type	restriction of xs:string
source	<xs:attribute name="contentType" use="required">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="3"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attributeGroup type_MappedIPPortAttribute

namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation MappedIP type_IPAddress required         MappedPort type_Port optional         MappedProtocol derived by: xs:int optional
source	<xs:attributeGroup name="type_MappedIPPortAttribute">   <xs:attribute name="MappedIP" type="type_IPAddress" use="required"/>   <xs:attribute name="MappedPort" type="type_Port" use="optional"/>   <xs:attribute name="MappedProtocol" use="optional">     <xs:simpleType>       <xs:restriction base="xs:int">         <xs:minInclusive value="0"/>         <xs:maxInclusive value="254"/>       </xs:restriction>     </xs:simpleType>   </xs:attribute> </xs:attributeGroup>

attribute type_MappedIPPortAttribute/@MappedIP

type	type_IPAddress
source	<xs:attribute name="MappedIP" type="type_IPAddress" use="required"/>

attribute type_MappedIPPortAttribute/@MappedPort

type	type_Port
source	<xs:attribute name="MappedPort" type="type_Port" use="optional"/>

attribute type_MappedIPPortAttribute/@MappedProtocol

type	restriction of xs:int
source	<xs:attribute name="MappedProtocol" use="optional">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="254"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attributeGroup type_OriginalIPPortAttribute

namespace	http://www.movielabs.com/ACNS
attributes	Name   Type   Use   Default   Fixed   annotation OriginalIP type_IPAddress required         OriginalPort type_Port required
source	<xs:attributeGroup name="type_OriginalIPPortAttribute">   <xs:attribute name="OriginalIP" type="type_IPAddress" use="required"/>   <xs:attribute name="OriginalPort" type="type_Port" use="required"/> </xs:attributeGroup>

attribute type_OriginalIPPortAttribute/@OriginalIP

type	type_IPAddress
source	<xs:attribute name="OriginalIP" type="type_IPAddress" use="required"/>

attribute type_OriginalIPPortAttribute/@OriginalPort

type	type_Port
source	<xs:attribute name="OriginalPort" type="type_Port" use="required"/>

attribute contentType

namespace	http://www.w3.org/2005/05/xmlmime
type	restriction of xs:string
source	<xs:attribute name="contentType">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="3"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute expectedContentTypes

namespace	http://www.w3.org/2005/05/xmlmime
type	xs:string
source	<xs:attribute name="expectedContentTypes" type="xs:string"/>

complexType base64Binary

diagram
namespace	http://www.w3.org/2005/05/xmlmime
type	extension of xs:base64Binary
attributes	Name   Type   Use   Default   Fixed   annotation contentType
source	<xs:complexType name="base64Binary">   <xs:simpleContent>     <xs:extension base="xs:base64Binary">       <xs:attribute ref="xmime:contentType"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

complexType hexBinary

diagram
namespace	http://www.w3.org/2005/05/xmlmime
type	extension of xs:hexBinary
attributes	Name   Type   Use   Default   Fixed   annotation contentType
source	<xs:complexType name="hexBinary">   <xs:simpleContent>     <xs:extension base="xs:hexBinary">       <xs:attribute ref="xmime:contentType"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

element CanonicalizationMethod

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CanonicalizationMethodType
attributes	Name   Type   Use   Default   Fixed   annotation Algorithm xs:anyURI required
source	<xs:element name="CanonicalizationMethod" type="ds:CanonicalizationMethodType"/>

element DigestMethod

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:DigestMethodType
attributes	Name   Type   Use   Default   Fixed   annotation Algorithm xs:anyURI required
source	<xs:element name="DigestMethod" type="ds:DigestMethodType"/>

element DigestValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:DigestValueType
source	<xs:element name="DigestValue" type="ds:DigestValueType"/>

element DSAKeyValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:DSAKeyValueType
source	<xs:element name="DSAKeyValue" type="ds:DSAKeyValueType"/>

element KeyInfo

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:KeyInfoType
attributes	Name   Type   Use   Default   Fixed   annotation Id xs:ID optional
source	<xs:element name="KeyInfo" type="ds:KeyInfoType"/>

element KeyName

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
source	<xs:element name="KeyName" type="string"/>

element KeyValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:KeyValueType
source	<xs:element name="KeyValue" type="ds:KeyValueType"/>

element Manifest

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:ManifestType
attributes	Name   Type   Use   Default   Fixed   annotation Id xs:ID optional
source	<xs:element name="Manifest" type="ds:ManifestType"/>

element MgmtData

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
source	<xs:element name="MgmtData" type="string"/>

element Object

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:ObjectType
attributes	Name   Type   Use   Default   Fixed   annotation Id xs:ID optional         MimeType xs:string optional         Encoding xs:anyURI optional
source	<xs:element name="Object" type="ds:ObjectType"/>

element PGPData

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:PGPDataType
source	<xs:element name="PGPData" type="ds:PGPDataType"/>

element Reference

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:ReferenceType
attributes	Name   Type   Use   Default   Fixed   annotation Id xs:ID optional         URI xs:anyURI optional         Type xs:anyURI optional
source	<xs:element name="Reference" type="ds:ReferenceType"/>

element RetrievalMethod

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:RetrievalMethodType
attributes	Name   Type   Use   Default   Fixed   annotation URI xs:anyURI          Type xs:anyURI optional
source	<xs:element name="RetrievalMethod" type="ds:RetrievalMethodType"/>

element RSAKeyValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:RSAKeyValueType
source	<xs:element name="RSAKeyValue" type="ds:RSAKeyValueType"/>

element Signature

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignatureType
attributes	Name   Type   Use   Default   Fixed   annotation Id xs:ID optional
source	<xs:element name="Signature" type="ds:SignatureType"/>

element SignatureMethod

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignatureMethodType
attributes	Name   Type   Use   Default   Fixed   annotation Algorithm xs:anyURI required
source	<xs:element name="SignatureMethod" type="ds:SignatureMethodType"/>

element SignatureProperties

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignaturePropertiesType
attributes	Name   Type   Use   Default   Fixed   annotation Id xs:ID optional
source	<xs:element name="SignatureProperties" type="ds:SignaturePropertiesType"/>

element SignatureProperty

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignaturePropertyType
attributes	Name   Type   Use   Default   Fixed   annotation Target xs:anyURI required         Id xs:ID optional
source	<xs:element name="SignatureProperty" type="ds:SignaturePropertyType"/>

element SignatureValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignatureValueType
attributes	Name   Type   Use   Default   Fixed   annotation Id xs:ID optional
source	<xs:element name="SignatureValue" type="ds:SignatureValueType"/>

element SignedInfo

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignedInfoType
attributes	Name   Type   Use   Default   Fixed   annotation Id xs:ID optional
source	<xs:element name="SignedInfo" type="ds:SignedInfoType"/>

element SPKIData

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SPKIDataType
source	<xs:element name="SPKIData" type="ds:SPKIDataType"/>

element Transform

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:TransformType
attributes	Name   Type   Use   Default   Fixed   annotation Algorithm xs:anyURI required
source	<xs:element name="Transform" type="ds:TransformType"/>

element Transforms

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:TransformsType
source	<xs:element name="Transforms" type="ds:TransformsType"/>

element X509Data

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:X509DataType
source	<xs:element name="X509Data" type="ds:X509DataType"/>

complexType CanonicalizationMethodType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
attributes	Name   Type   Use   Default   Fixed   annotation Algorithm xs:anyURI required
source	<xs:complexType name="CanonicalizationMethodType" mixed="true">   <xs:sequence>     <xs:any namespace="##any" minOccurs="0" maxOccurs="unbounded"/>     <!-- (0,unbounded) elements from (1,1) namespace -->   </xs:sequence>   <xs:attribute name="Algorithm" type="anyURI" use="required"/> </xs:complexType>

attribute CanonicalizationMethodType/@Algorithm

type	xs:anyURI
source	<xs:attribute name="Algorithm" type="anyURI" use="required"/>

complexType DigestMethodType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
attributes	Name   Type   Use   Default   Fixed   annotation Algorithm xs:anyURI required
source	<xs:complexType name="DigestMethodType" mixed="true">   <xs:sequence>     <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/>   </xs:sequence>   <xs:attribute name="Algorithm" type="anyURI" use="required"/> </xs:complexType>

attribute DigestMethodType/@Algorithm

type	xs:anyURI
source	<xs:attribute name="Algorithm" type="anyURI" use="required"/>

complexType DSAKeyValueType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
source	<xs:complexType name="DSAKeyValueType">   <xs:sequence>     <xs:sequence minOccurs="0">       <xs:element name="P" type="ds:CryptoBinary"/>       <xs:element name="Q" type="ds:CryptoBinary"/>     </xs:sequence>     <xs:element name="G" type="ds:CryptoBinary" minOccurs="0"/>     <xs:element name="Y" type="ds:CryptoBinary"/>     <xs:element name="J" type="ds:CryptoBinary" minOccurs="0"/>     <xs:sequence minOccurs="0">       <xs:element name="Seed" type="ds:CryptoBinary"/>       <xs:element name="PgenCounter" type="ds:CryptoBinary"/>     </xs:sequence>   </xs:sequence> </xs:complexType>

element DSAKeyValueType/P

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
source	<xs:element name="P" type="ds:CryptoBinary"/>

element DSAKeyValueType/Q

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
source	<xs:element name="Q" type="ds:CryptoBinary"/>

element DSAKeyValueType/G

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
source	<xs:element name="G" type="ds:CryptoBinary" minOccurs="0"/>

element DSAKeyValueType/Y

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
source	<xs:element name="Y" type="ds:CryptoBinary"/>

element DSAKeyValueType/J

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
source	<xs:element name="J" type="ds:CryptoBinary" minOccurs="0"/>

element DSAKeyValueType/Seed

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
source	<xs:element name="Seed" type="ds:CryptoBinary"/>

element DSAKeyValueType/PgenCounter

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
source	<xs:element name="PgenCounter" type="ds:CryptoBinary"/>

complexType KeyInfoType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
attributes	Name   Type   Use   Default   Fixed   annotation Id xs:ID optional
source	<xs:complexType name="KeyInfoType" mixed="true">   <xs:choice maxOccurs="unbounded">     <xs:element ref="ds:KeyName"/>     <xs:element ref="ds:KeyValue"/>     <xs:element ref="ds:RetrievalMethod"/>     <xs:element ref="ds:X509Data"/>     <xs:element ref="ds:PGPData"/>     <xs:element ref="ds:SPKIData"/>     <xs:element ref="ds:MgmtData"/>     <xs:any namespace="##other" processContents="lax"/>     <!-- (1,1) elements from (0,unbounded) namespaces -->   </xs:choice>   <xs:attribute name="Id" type="ID" use="optional"/> </xs:complexType>

attribute KeyInfoType/@Id

type	xs:ID
source	<xs:attribute name="Id" type="ID" use="optional"/>

complexType KeyValueType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
source	<xs:complexType name="KeyValueType" mixed="true">   <xs:choice>     <xs:element ref="ds:DSAKeyValue"/>     <xs:element ref="ds:RSAKeyValue"/>     <xs:any namespace="##other" processContents="lax"/>   </xs:choice> </xs:complexType>

complexType ManifestType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
attributes	Name   Type   Use   Default   Fixed   annotation Id xs:ID optional
source	<xs:complexType name="ManifestType">   <xs:sequence>     <xs:element ref="ds:Reference" maxOccurs="unbounded"/>   </xs:sequence>   <xs:attribute name="Id" type="ID" use="optional"/> </xs:complexType>

attribute ManifestType/@Id

type	xs:ID
source	<xs:attribute name="Id" type="ID" use="optional"/>

complexType ObjectType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
attributes	Name   Type   Use   Default   Fixed   annotation Id xs:ID optional         MimeType xs:string optional         Encoding xs:anyURI optional
source	<xs:complexType name="ObjectType" mixed="true">   <xs:sequence minOccurs="0" maxOccurs="unbounded">     <xs:any namespace="##any" processContents="lax"/>   </xs:sequence>   <xs:attribute name="Id" type="ID" use="optional"/>   <xs:attribute name="MimeType" type="string" use="optional"/>   <xs:attribute name="Encoding" type="anyURI" use="optional"/>   <!-- add a grep facet --> </xs:complexType>

attribute ObjectType/@Id

type	xs:ID
source	<xs:attribute name="Id" type="ID" use="optional"/>

attribute ObjectType/@MimeType

type	xs:string
source	<xs:attribute name="MimeType" type="string" use="optional"/>

attribute ObjectType/@Encoding

type	xs:anyURI
source	<xs:attribute name="Encoding" type="anyURI" use="optional"/>

complexType PGPDataType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
source	<xs:complexType name="PGPDataType">   <xs:choice>     <xs:sequence>       <xs:element name="PGPKeyID" type="base64Binary"/>       <xs:element name="PGPKeyPacket" type="base64Binary" minOccurs="0"/>       <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:sequence>       <xs:element name="PGPKeyPacket" type="base64Binary"/>       <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>   </xs:choice> </xs:complexType>

element PGPDataType/PGPKeyID

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
source	<xs:element name="PGPKeyID" type="base64Binary"/>

element PGPDataType/PGPKeyPacket

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
source	<xs:element name="PGPKeyPacket" type="base64Binary" minOccurs="0"/>

element PGPDataType/PGPKeyPacket

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
source	<xs:element name="PGPKeyPacket" type="base64Binary"/>

complexType ReferenceType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
attributes	Name   Type   Use   Default   Fixed   annotation Id xs:ID optional         URI xs:anyURI optional         Type xs:anyURI optional
source	<xs:complexType name="ReferenceType">   <xs:sequence>     <xs:element ref="ds:Transforms" minOccurs="0"/>     <xs:element ref="ds:DigestMethod"/>     <xs:element ref="ds:DigestValue"/>   </xs:sequence>   <xs:attribute name="Id" type="ID" use="optional"/>   <xs:attribute name="URI" type="anyURI" use="optional"/>   <xs:attribute name="Type" type="anyURI" use="optional"/> </xs:complexType>

attribute ReferenceType/@Id

type	xs:ID
source	<xs:attribute name="Id" type="ID" use="optional"/>

attribute ReferenceType/@URI

type	xs:anyURI
source	<xs:attribute name="URI" type="anyURI" use="optional"/>

attribute ReferenceType/@Type

type	xs:anyURI
source	<xs:attribute name="Type" type="anyURI" use="optional"/>

complexType RetrievalMethodType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
attributes	Name   Type   Use   Default   Fixed   annotation URI xs:anyURI          Type xs:anyURI optional
source	<xs:complexType name="RetrievalMethodType">   <xs:sequence>     <xs:element ref="ds:Transforms" minOccurs="0"/>   </xs:sequence>   <xs:attribute name="URI" type="anyURI"/>   <xs:attribute name="Type" type="anyURI" use="optional"/> </xs:complexType>

attribute RetrievalMethodType/@URI

type	xs:anyURI
source	<xs:attribute name="URI" type="anyURI"/>

attribute RetrievalMethodType/@Type

type	xs:anyURI
source	<xs:attribute name="Type" type="anyURI" use="optional"/>

complexType RSAKeyValueType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
source	<xs:complexType name="RSAKeyValueType">   <xs:sequence>     <xs:element name="Modulus" type="ds:CryptoBinary"/>     <xs:element name="Exponent" type="ds:CryptoBinary"/>   </xs:sequence> </xs:complexType>

element RSAKeyValueType/Modulus

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
source	<xs:element name="Modulus" type="ds:CryptoBinary"/>

element RSAKeyValueType/Exponent

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
source	<xs:element name="Exponent" type="ds:CryptoBinary"/>

complexType SignatureMethodType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
attributes	Name   Type   Use   Default   Fixed   annotation Algorithm xs:anyURI required
source	<xs:complexType name="SignatureMethodType" mixed="true">   <xs:sequence>     <xs:element name="HMACOutputLength" type="ds:HMACOutputLengthType" minOccurs="0"/>     <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>     <!-- (0,unbounded) elements from (1,1) external namespace -->   </xs:sequence>   <xs:attribute name="Algorithm" type="anyURI" use="required"/> </xs:complexType>

attribute SignatureMethodType/@Algorithm

type	xs:anyURI
source	<xs:attribute name="Algorithm" type="anyURI" use="required"/>

element SignatureMethodType/HMACOutputLength

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:HMACOutputLengthType
source	<xs:element name="HMACOutputLength" type="ds:HMACOutputLengthType" minOccurs="0"/>

complexType SignaturePropertiesType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
attributes	Name   Type   Use   Default   Fixed   annotation Id xs:ID optional
source	<xs:complexType name="SignaturePropertiesType">   <xs:sequence>     <xs:element ref="ds:SignatureProperty" maxOccurs="unbounded"/>   </xs:sequence>   <xs:attribute name="Id" type="ID" use="optional"/> </xs:complexType>

attribute SignaturePropertiesType/@Id

type	xs:ID
source	<xs:attribute name="Id" type="ID" use="optional"/>

complexType SignaturePropertyType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
attributes	Name   Type   Use   Default   Fixed   annotation Target xs:anyURI required         Id xs:ID optional
source	<xs:complexType name="SignaturePropertyType" mixed="true">   <xs:choice maxOccurs="unbounded">     <xs:any namespace="##other" processContents="lax"/>     <!-- (1,1) elements from (1,unbounded) namespaces -->   </xs:choice>   <xs:attribute name="Target" type="anyURI" use="required"/>   <xs:attribute name="Id" type="ID" use="optional"/> </xs:complexType>

attribute SignaturePropertyType/@Target

type	xs:anyURI
source	<xs:attribute name="Target" type="anyURI" use="required"/>

attribute SignaturePropertyType/@Id

type	xs:ID
source	<xs:attribute name="Id" type="ID" use="optional"/>

complexType SignatureType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
attributes	Name   Type   Use   Default   Fixed   annotation Id xs:ID optional
source	<xs:complexType name="SignatureType">   <xs:sequence>     <xs:element ref="ds:SignedInfo"/>     <xs:element ref="ds:SignatureValue"/>     <xs:element ref="ds:KeyInfo" minOccurs="0"/>     <xs:element ref="ds:Object" minOccurs="0" maxOccurs="unbounded"/>   </xs:sequence>   <xs:attribute name="Id" type="ID" use="optional"/> </xs:complexType>

attribute SignatureType/@Id

type	xs:ID
source	<xs:attribute name="Id" type="ID" use="optional"/>

complexType SignatureValueType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	extension of xs:base64Binary
attributes	Name   Type   Use   Default   Fixed   annotation Id xs:ID optional
source	<xs:complexType name="SignatureValueType">   <xs:simpleContent>     <xs:extension base="base64Binary">       <xs:attribute name="Id" type="ID" use="optional"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute SignatureValueType/@Id

type	xs:ID
source	<xs:attribute name="Id" type="ID" use="optional"/>

complexType SignedInfoType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
attributes	Name   Type   Use   Default   Fixed   annotation Id xs:ID optional
source	<xs:complexType name="SignedInfoType">   <xs:sequence>     <xs:element ref="ds:CanonicalizationMethod"/>     <xs:element ref="ds:SignatureMethod"/>     <xs:element ref="ds:Reference" maxOccurs="unbounded"/>   </xs:sequence>   <xs:attribute name="Id" type="ID" use="optional"/> </xs:complexType>

attribute SignedInfoType/@Id

type	xs:ID
source	<xs:attribute name="Id" type="ID" use="optional"/>

complexType SPKIDataType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
source	<xs:complexType name="SPKIDataType">   <xs:sequence maxOccurs="unbounded">     <xs:element name="SPKISexp" type="base64Binary"/>     <xs:any namespace="##other" processContents="lax" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element SPKIDataType/SPKISexp

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
source	<xs:element name="SPKISexp" type="base64Binary"/>

complexType TransformsType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
source	<xs:complexType name="TransformsType">   <xs:sequence>     <xs:element ref="ds:Transform" maxOccurs="unbounded"/>   </xs:sequence> </xs:complexType>

complexType TransformType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
attributes	Name   Type   Use   Default   Fixed   annotation Algorithm xs:anyURI required
source	<xs:complexType name="TransformType" mixed="true">   <xs:choice minOccurs="0" maxOccurs="unbounded">     <xs:any namespace="##other" processContents="lax"/>     <!-- (1,1) elements from (0,unbounded) namespaces -->     <xs:element name="XPath" type="string"/>   </xs:choice>   <xs:attribute name="Algorithm" type="anyURI" use="required"/> </xs:complexType>

attribute TransformType/@Algorithm

type	xs:anyURI
source	<xs:attribute name="Algorithm" type="anyURI" use="required"/>

element TransformType/XPath

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
source	<xs:element name="XPath" type="string"/>

complexType X509DataType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
source	<xs:complexType name="X509DataType">   <xs:sequence maxOccurs="unbounded">     <xs:choice>       <xs:element name="X509IssuerSerial" type="ds:X509IssuerSerialType"/>       <xs:element name="X509SKI" type="base64Binary"/>       <xs:element name="X509SubjectName" type="string"/>       <xs:element name="X509Certificate" type="base64Binary"/>       <xs:element name="X509CRL" type="base64Binary"/>       <xs:any namespace="##other" processContents="lax"/>     </xs:choice>   </xs:sequence> </xs:complexType>

element X509DataType/X509IssuerSerial

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:X509IssuerSerialType
source	<xs:element name="X509IssuerSerial" type="ds:X509IssuerSerialType"/>

element X509DataType/X509SKI

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
source	<xs:element name="X509SKI" type="base64Binary"/>

element X509DataType/X509SubjectName

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
source	<xs:element name="X509SubjectName" type="string"/>

element X509DataType/X509Certificate

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
source	<xs:element name="X509Certificate" type="base64Binary"/>

element X509DataType/X509CRL

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
source	<xs:element name="X509CRL" type="base64Binary"/>

complexType X509IssuerSerialType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
source	<xs:complexType name="X509IssuerSerialType">   <xs:sequence>     <xs:element name="X509IssuerName" type="string"/>     <xs:element name="X509SerialNumber" type="integer"/>   </xs:sequence> </xs:complexType>

element X509IssuerSerialType/X509IssuerName

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
source	<xs:element name="X509IssuerName" type="string"/>

element X509IssuerSerialType/X509SerialNumber

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:integer
source	<xs:element name="X509SerialNumber" type="integer"/>

simpleType CryptoBinary

namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
source	<xs:simpleType name="CryptoBinary">   <xs:restriction base="base64Binary"/> </xs:simpleType>

simpleType DigestValueType

namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
source	<xs:simpleType name="DigestValueType">   <xs:restriction base="base64Binary"/> </xs:simpleType>

simpleType HMACOutputLengthType

namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:integer
source	<xs:simpleType name="HMACOutputLengthType">   <xs:restriction base="integer"/> </xs:simpleType>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
