Schema ACNS2v1_1.xsd


schema location:  http://www.movielabs.com/ACNS/ACNS2v1_1.xsd
attribute form default:
element form default:  qualified
targetNamespace:  http://www.movielabs.com/ACNS

Elements  Complex types  Simple types  Attr. groups
CounterNotice  Case  type_ExplicitType  type_contentType
Detection  Contact  type_infringement_type_enumeration  type_MappedIPPortAttribute
Infringement  type_AlsoSeen  type_IPAddress  type_OriginalIPPortAttribute
NoticeAck  type_Asset  type_Port
StatusRequest  type_BinaryImage
StatusUpdate  type_Content
Verification  type_ContentMatched
type_CounterNotice
type_CounternoticeContent
type_Detection
type_Disposition
type_Hash
type_infringement_type
type_InternalTracking

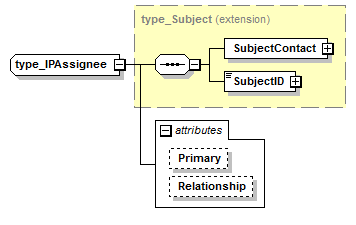

type_IPAssignee
type_Item
type_Mapping
type_NoticeAck
type_NoticeAckList
type_StatusRequest
type_StatusUpdate
type_Subject
type_UsenetDisposition
type_Verification
type_VerificationLevel
type_VerifiedImage
type_WatermarkMatched


schema location:  http://www.w3.org/2005/05/xmlmime
attribute form default:
element form default:
targetNamespace:  http://www.w3.org/2005/05/xmlmime

Attributes  Complex types
contentType  base64Binary
expectedContentTypes  hexBinary


element CounterNotice
diagram ACNS2v1_1_p1.png
namespace http://www.movielabs.com/ACNS
type type_CounterNotice
attributes
Name  Type  Use  Default  Fixed  annotation
TimeStampxs:dateTimerequired
DMCAxs:boolean
source <xs:element name="CounterNotice" type="type_CounterNotice"/>

element Detection
diagram ACNS2v1_1_p2.png
namespace http://www.movielabs.com/ACNS
type type_Detection
source <xs:element name="Detection" type="type_Detection"/>

element Infringement
diagram ACNS2v1_1_p3.png
namespace http://www.movielabs.com/ACNS
source <xs:element name="Infringement" id="v0.7">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="Case" type="Case"/>
      <xs:element name="Complainant" type="Contact"/>
      <xs:element name="Service_Provider" type="Contact"/>
      <xs:element name="Source">
        <xs:complexType>
          <xs:all>
            <xs:element name="TimeStamp" type="xs:dateTime"/>
            <xs:element name="IP_Address" type="type_IPAddress"/>
            <xs:element name="Port" type="type_Port" minOccurs="0"/>
            <xs:element name="Protocol" minOccurs="0">
              <xs:simpleType>
                <xs:restriction base="xs:int">
                  <xs:minInclusive value="0"/>
                  <xs:maxInclusive value="254"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="DNS_Name" minOccurs="0">
              <xs:simpleType>
                <xs:restriction base="xs:string">
                  <xs:whiteSpace value="collapse"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="MAC_Address" type="xs:string" minOccurs="0"/>
            <xs:element name="IP_Block" type="xs:string" minOccurs="0"/>
            <xs:element name="Type" type="xs:string" minOccurs="0"/>
            <xs:element name="SubType" minOccurs="0">
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="xs:string">
                    <xs:attribute name="BaseType" use="required">
                      <xs:simpleType>
                        <xs:restriction base="xs:string">
                          <xs:enumeration value="P2P"/>
                          <xs:enumeration value="SERVER"/>
                          <xs:enumeration value="LINK"/>
                          <xs:enumeration value="OTHER"/>
                        </xs:restriction>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="Protocol">
                      <xs:simpleType>
                        <xs:restriction base="xs:string">
                          <xs:enumeration value="BITTORRENT"/>
                          <xs:enumeration value="ED2K"/>
                          <xs:enumeration value="GNUTELLA"/>
                          <xs:enumeration value="GNUTELLA2"/>
                          <xs:enumeration value="ARES"/>
                          <xs:enumeration value="WINNY"/>
                          <xs:enumeration value="FASTTRACK"/>
                          <xs:enumeration value="KAD"/>
                          <xs:enumeration value="FTP"/>
                          <xs:enumeration value="HTTP"/>
                          <xs:enumeration value="IRC"/>
                          <xs:enumeration value="OTHER"/>
                        </xs:restriction>
                      </xs:simpleType>
                    </xs:attribute>
                    <xs:attribute name="Application" type="xs:string"/>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
            <xs:element name="URL_Base" type="xs:anyURI" minOccurs="0"/>
            <xs:element name="UserName" type="xs:string" minOccurs="0"/>
            <xs:element name="Login" minOccurs="0">
              <xs:complexType>
                <xs:attribute name="Username" type="xs:string" use="required"/>
                <xs:attribute name="Password" type="xs:string" use="required"/>
              </xs:complexType>
            </xs:element>
            <xs:element name="Number_Files" minOccurs="0">
              <xs:simpleType>
                <xs:restriction base="xs:int">
                  <xs:minInclusive value="0"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="Deja_Vu" minOccurs="0">
              <xs:simpleType>
                <xs:restriction base="xs:string">
                  <xs:enumeration value="Yes"/>
                  <xs:enumeration value="No"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="IsSource" type="xs:boolean" minOccurs="0"/>
          </xs:all>
        </xs:complexType>
      </xs:element>
      <xs:element name="Content">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="Item" maxOccurs="unbounded">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="TimeStamp" type="xs:dateTime"/>
                  <xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>
                  <xs:element name="Title" type="xs:string" minOccurs="0"/>
                  <xs:element name="Artist" type="xs:string" minOccurs="0"/>
                  <xs:element name="FileName">
                    <xs:simpleType>
                      <xs:restriction base="xs:string"/>
                    </xs:simpleType>
                  </xs:element>
                  <xs:element name="FileSize" minOccurs="0">
                    <xs:simpleType>
                      <xs:restriction base="xs:int">
                        <xs:minInclusive value="0"/>
                      </xs:restriction>
                    </xs:simpleType>
                  </xs:element>
                  <xs:element name="URL" type="xs:anyURI" minOccurs="0"/>
                  <xs:element name="Type" type="xs:string" minOccurs="0"/>
                  <xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>
                  <xs:element name="Hash" type="type_Hash" minOccurs="0"/>
                  <xs:element name="UseNetHeader" type="xs:string" minOccurs="0"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="History" minOccurs="0">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="Notice" minOccurs="0" maxOccurs="unbounded">
              <xs:complexType>
                <xs:simpleContent>
                  <xs:extension base="xs:string">
                    <xs:attribute name="ID" type="xs:anySimpleType" use="optional"/>
                    <xs:attribute name="TimeStamp" type="xs:anySimpleType" use="optional"/>
                  </xs:extension>
                </xs:simpleContent>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="Notes" type="xs:string" minOccurs="0"/>
      <xs:element name="Type" type="type_infringement_type" minOccurs="0"/>
      <xs:element name="Detection" type="type_Detection" minOccurs="0"/>
      <xs:element name="Verification" type="type_Verification" minOccurs="0"/>
      <xs:element name="InternalTracking" type="type_InternalTracking" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="TextNotice" type="xs:string" minOccurs="0"/>
      <xs:element name="VerifiedData" type="xs:base64Binary" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element Infringement/Case
diagram ACNS2v1_1_p4.png
namespace http://www.movielabs.com/ACNS
type Case
source <xs:element name="Case" type="Case"/>

element Infringement/Complainant
diagram ACNS2v1_1_p5.png
namespace http://www.movielabs.com/ACNS
type Contact
source <xs:element name="Complainant" type="Contact"/>

element Infringement/Service_Provider
diagram ACNS2v1_1_p6.png
namespace http://www.movielabs.com/ACNS
type Contact
source <xs:element name="Service_Provider" type="Contact"/>

element Infringement/Source
diagram ACNS2v1_1_p7.png
namespace http://www.movielabs.com/ACNS
source <xs:element name="Source">
  <xs:complexType>
    <xs:all>
      <xs:element name="TimeStamp" type="xs:dateTime"/>
      <xs:element name="IP_Address" type="type_IPAddress"/>
      <xs:element name="Port" type="type_Port" minOccurs="0"/>
      <xs:element name="Protocol" minOccurs="0">
        <xs:simpleType>
          <xs:restriction base="xs:int">
            <xs:minInclusive value="0"/>
            <xs:maxInclusive value="254"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="DNS_Name" minOccurs="0">
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:whiteSpace value="collapse"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="MAC_Address" type="xs:string" minOccurs="0"/>
      <xs:element name="IP_Block" type="xs:string" minOccurs="0"/>
      <xs:element name="Type" type="xs:string" minOccurs="0"/>
      <xs:element name="SubType" minOccurs="0">
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="xs:string">
              <xs:attribute name="BaseType" use="required">
                <xs:simpleType>
                  <xs:restriction base="xs:string">
                    <xs:enumeration value="P2P"/>
                    <xs:enumeration value="SERVER"/>
                    <xs:enumeration value="LINK"/>
                    <xs:enumeration value="OTHER"/>
                  </xs:restriction>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="Protocol">
                <xs:simpleType>
                  <xs:restriction base="xs:string">
                    <xs:enumeration value="BITTORRENT"/>
                    <xs:enumeration value="ED2K"/>
                    <xs:enumeration value="GNUTELLA"/>
                    <xs:enumeration value="GNUTELLA2"/>
                    <xs:enumeration value="ARES"/>
                    <xs:enumeration value="WINNY"/>
                    <xs:enumeration value="FASTTRACK"/>
                    <xs:enumeration value="KAD"/>
                    <xs:enumeration value="FTP"/>
                    <xs:enumeration value="HTTP"/>
                    <xs:enumeration value="IRC"/>
                    <xs:enumeration value="OTHER"/>
                  </xs:restriction>
                </xs:simpleType>
              </xs:attribute>
              <xs:attribute name="Application" type="xs:string"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="URL_Base" type="xs:anyURI" minOccurs="0"/>
      <xs:element name="UserName" type="xs:string" minOccurs="0"/>
      <xs:element name="Login" minOccurs="0">
        <xs:complexType>
          <xs:attribute name="Username" type="xs:string" use="required"/>
          <xs:attribute name="Password" type="xs:string" use="required"/>
        </xs:complexType>
      </xs:element>
      <xs:element name="Number_Files" minOccurs="0">
        <xs:simpleType>
          <xs:restriction base="xs:int">
            <xs:minInclusive value="0"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="Deja_Vu" minOccurs="0">
        <xs:simpleType>
          <xs:restriction base="xs:string">
            <xs:enumeration value="Yes"/>
            <xs:enumeration value="No"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="IsSource" type="xs:boolean" minOccurs="0"/>
    </xs:all>
  </xs:complexType>
</xs:element>

element Infringement/Source/TimeStamp
diagram ACNS2v1_1_p8.png
namespace http://www.movielabs.com/ACNS
type xs:dateTime
source <xs:element name="TimeStamp" type="xs:dateTime"/>

element Infringement/Source/IP_Address
diagram ACNS2v1_1_p9.png
namespace http://www.movielabs.com/ACNS
type type_IPAddress
source <xs:element name="IP_Address" type="type_IPAddress"/>

element Infringement/Source/Port
diagram ACNS2v1_1_p10.png
namespace http://www.movielabs.com/ACNS
type type_Port
source <xs:element name="Port" type="type_Port" minOccurs="0"/>

element Infringement/Source/Protocol
diagram ACNS2v1_1_p11.png
namespace http://www.movielabs.com/ACNS
type restriction of xs:int
source <xs:element name="Protocol" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="254"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Infringement/Source/DNS_Name
diagram ACNS2v1_1_p12.png
namespace http://www.movielabs.com/ACNS
type restriction of xs:string
source <xs:element name="DNS_Name" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:whiteSpace value="collapse"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Infringement/Source/MAC_Address
diagram ACNS2v1_1_p13.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="MAC_Address" type="xs:string" minOccurs="0"/>

element Infringement/Source/IP_Block
diagram ACNS2v1_1_p14.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="IP_Block" type="xs:string" minOccurs="0"/>

element Infringement/Source/Type
diagram ACNS2v1_1_p15.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Type" type="xs:string" minOccurs="0"/>

element Infringement/Source/SubType
diagram ACNS2v1_1_p16.png
namespace http://www.movielabs.com/ACNS
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  annotation
BaseTypederived by: xs:stringrequired
Protocolderived by: xs:string
Applicationxs:string
source <xs:element name="SubType" minOccurs="0">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:string">
        <xs:attribute name="BaseType" use="required">
          <xs:simpleType>
            <xs:restriction base="xs:string">
              <xs:enumeration value="P2P"/>
              <xs:enumeration value="SERVER"/>
              <xs:enumeration value="LINK"/>
              <xs:enumeration value="OTHER"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="Protocol">
          <xs:simpleType>
            <xs:restriction base="xs:string">
              <xs:enumeration value="BITTORRENT"/>
              <xs:enumeration value="ED2K"/>
              <xs:enumeration value="GNUTELLA"/>
              <xs:enumeration value="GNUTELLA2"/>
              <xs:enumeration value="ARES"/>
              <xs:enumeration value="WINNY"/>
              <xs:enumeration value="FASTTRACK"/>
              <xs:enumeration value="KAD"/>
              <xs:enumeration value="FTP"/>
              <xs:enumeration value="HTTP"/>
              <xs:enumeration value="IRC"/>
              <xs:enumeration value="OTHER"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="Application" type="xs:string"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

attribute Infringement/Source/SubType/@BaseType
type restriction of xs:string
facets
Kind Value annotation
enumeration P2P
enumeration SERVER
enumeration LINK
enumeration OTHER
source <xs:attribute name="BaseType" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="P2P"/>
      <xs:enumeration value="SERVER"/>
      <xs:enumeration value="LINK"/>
      <xs:enumeration value="OTHER"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute Infringement/Source/SubType/@Protocol
type restriction of xs:string
facets
Kind Value annotation
enumeration BITTORRENT
enumeration ED2K
enumeration GNUTELLA
enumeration GNUTELLA2
enumeration ARES
enumeration WINNY
enumeration FASTTRACK
enumeration KAD
enumeration FTP
enumeration HTTP
enumeration IRC
enumeration OTHER
source <xs:attribute name="Protocol">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="BITTORRENT"/>
      <xs:enumeration value="ED2K"/>
      <xs:enumeration value="GNUTELLA"/>
      <xs:enumeration value="GNUTELLA2"/>
      <xs:enumeration value="ARES"/>
      <xs:enumeration value="WINNY"/>
      <xs:enumeration value="FASTTRACK"/>
      <xs:enumeration value="KAD"/>
      <xs:enumeration value="FTP"/>
      <xs:enumeration value="HTTP"/>
      <xs:enumeration value="IRC"/>
      <xs:enumeration value="OTHER"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute Infringement/Source/SubType/@Application
type xs:string
source <xs:attribute name="Application" type="xs:string"/>

element Infringement/Source/URL_Base
diagram ACNS2v1_1_p17.png
namespace http://www.movielabs.com/ACNS
type xs:anyURI
source <xs:element name="URL_Base" type="xs:anyURI" minOccurs="0"/>

element Infringement/Source/UserName
diagram ACNS2v1_1_p18.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="UserName" type="xs:string" minOccurs="0"/>

element Infringement/Source/Login
diagram ACNS2v1_1_p19.png
namespace http://www.movielabs.com/ACNS
attributes
Name  Type  Use  Default  Fixed  annotation
Usernamexs:stringrequired
Passwordxs:stringrequired
source <xs:element name="Login" minOccurs="0">
  <xs:complexType>
    <xs:attribute name="Username" type="xs:string" use="required"/>
    <xs:attribute name="Password" type="xs:string" use="required"/>
  </xs:complexType>
</xs:element>

attribute Infringement/Source/Login/@Username
type xs:string
source <xs:attribute name="Username" type="xs:string" use="required"/>

attribute Infringement/Source/Login/@Password
type xs:string
source <xs:attribute name="Password" type="xs:string" use="required"/>

element Infringement/Source/Number_Files
diagram ACNS2v1_1_p20.png
namespace http://www.movielabs.com/ACNS
type restriction of xs:int
source <xs:element name="Number_Files" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Infringement/Source/Deja_Vu
diagram ACNS2v1_1_p21.png
namespace http://www.movielabs.com/ACNS
type restriction of xs:string
facets
Kind Value annotation
enumeration Yes
enumeration No
source <xs:element name="Deja_Vu" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="Yes"/>
      <xs:enumeration value="No"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Infringement/Source/IsSource
diagram ACNS2v1_1_p22.png
namespace http://www.movielabs.com/ACNS
type xs:boolean
source <xs:element name="IsSource" type="xs:boolean" minOccurs="0"/>

element Infringement/Content
diagram ACNS2v1_1_p23.png
namespace http://www.movielabs.com/ACNS
source <xs:element name="Content">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="Item" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="TimeStamp" type="xs:dateTime"/>
            <xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>
            <xs:element name="Title" type="xs:string" minOccurs="0"/>
            <xs:element name="Artist" type="xs:string" minOccurs="0"/>
            <xs:element name="FileName">
              <xs:simpleType>
                <xs:restriction base="xs:string"/>
              </xs:simpleType>
            </xs:element>
            <xs:element name="FileSize" minOccurs="0">
              <xs:simpleType>
                <xs:restriction base="xs:int">
                  <xs:minInclusive value="0"/>
                </xs:restriction>
              </xs:simpleType>
            </xs:element>
            <xs:element name="URL" type="xs:anyURI" minOccurs="0"/>
            <xs:element name="Type" type="xs:string" minOccurs="0"/>
            <xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>
            <xs:element name="Hash" type="type_Hash" minOccurs="0"/>
            <xs:element name="UseNetHeader" type="xs:string" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element Infringement/Content/Item
diagram ACNS2v1_1_p24.png
namespace http://www.movielabs.com/ACNS
source <xs:element name="Item" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="TimeStamp" type="xs:dateTime"/>
      <xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="Title" type="xs:string" minOccurs="0"/>
      <xs:element name="Artist" type="xs:string" minOccurs="0"/>
      <xs:element name="FileName">
        <xs:simpleType>
          <xs:restriction base="xs:string"/>
        </xs:simpleType>
      </xs:element>
      <xs:element name="FileSize" minOccurs="0">
        <xs:simpleType>
          <xs:restriction base="xs:int">
            <xs:minInclusive value="0"/>
          </xs:restriction>
        </xs:simpleType>
      </xs:element>
      <xs:element name="URL" type="xs:anyURI" minOccurs="0"/>
      <xs:element name="Type" type="xs:string" minOccurs="0"/>
      <xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>
      <xs:element name="Hash" type="type_Hash" minOccurs="0"/>
      <xs:element name="UseNetHeader" type="xs:string" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element Infringement/Content/Item/TimeStamp
diagram ACNS2v1_1_p25.png
namespace http://www.movielabs.com/ACNS
type xs:dateTime
source <xs:element name="TimeStamp" type="xs:dateTime"/>

element Infringement/Content/Item/AlsoSeen
diagram ACNS2v1_1_p26.png
namespace http://www.movielabs.com/ACNS
type type_AlsoSeen
attributes
Name  Type  Use  Default  Fixed  annotation
Startxs:dateTimerequired
Endxs:dateTimerequired
source <xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>

element Infringement/Content/Item/Title
diagram ACNS2v1_1_p27.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Title" type="xs:string" minOccurs="0"/>

element Infringement/Content/Item/Artist
diagram ACNS2v1_1_p28.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Artist" type="xs:string" minOccurs="0"/>

element Infringement/Content/Item/FileName
diagram ACNS2v1_1_p29.png
namespace http://www.movielabs.com/ACNS
type restriction of xs:string
source <xs:element name="FileName">
  <xs:simpleType>
    <xs:restriction base="xs:string"/>
  </xs:simpleType>
</xs:element>

element Infringement/Content/Item/FileSize
diagram ACNS2v1_1_p30.png
namespace http://www.movielabs.com/ACNS
type restriction of xs:int
source <xs:element name="FileSize" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element Infringement/Content/Item/URL
diagram ACNS2v1_1_p31.png
namespace http://www.movielabs.com/ACNS
type xs:anyURI
source <xs:element name="URL" type="xs:anyURI" minOccurs="0"/>

element Infringement/Content/Item/Type
diagram ACNS2v1_1_p32.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Type" type="xs:string" minOccurs="0"/>

element Infringement/Content/Item/ExplicitType
diagram ACNS2v1_1_p33.png
namespace http://www.movielabs.com/ACNS
type type_ExplicitType
facets
Kind Value annotation
enumeration Movie
enumeration Game
enumeration Software
enumeration Music
enumeration Document
enumeration Image
source <xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>

element Infringement/Content/Item/Hash
diagram ACNS2v1_1_p34.png
namespace http://www.movielabs.com/ACNS
type type_Hash
attributes
Name  Type  Use  Default  Fixed  annotation
Typexs:stringrequired
source <xs:element name="Hash" type="type_Hash" minOccurs="0"/>

element Infringement/Content/Item/UseNetHeader
diagram ACNS2v1_1_p35.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="UseNetHeader" type="xs:string" minOccurs="0"/>

element Infringement/History
diagram ACNS2v1_1_p36.png
namespace http://www.movielabs.com/ACNS
source <xs:element name="History" minOccurs="0">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="Notice" minOccurs="0" maxOccurs="unbounded">
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="xs:string">
              <xs:attribute name="ID" type="xs:anySimpleType" use="optional"/>
              <xs:attribute name="TimeStamp" type="xs:anySimpleType" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element Infringement/History/Notice
diagram ACNS2v1_1_p37.png
namespace http://www.movielabs.com/ACNS
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  annotation
IDxs:anySimpleTypeoptional
TimeStampxs:anySimpleTypeoptional
source <xs:element name="Notice" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:string">
        <xs:attribute name="ID" type="xs:anySimpleType" use="optional"/>
        <xs:attribute name="TimeStamp" type="xs:anySimpleType" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

attribute Infringement/History/Notice/@ID
type xs:anySimpleType
source <xs:attribute name="ID" type="xs:anySimpleType" use="optional"/>

attribute Infringement/History/Notice/@TimeStamp
type xs:anySimpleType
source <xs:attribute name="TimeStamp" type="xs:anySimpleType" use="optional"/>

element Infringement/Notes
diagram ACNS2v1_1_p38.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Notes" type="xs:string" minOccurs="0"/>

element Infringement/Type
diagram ACNS2v1_1_p39.png
namespace http://www.movielabs.com/ACNS
type type_infringement_type
facets
Kind Value annotation
enumeration OTHER
enumeration INFRINGEMENT
enumeration PRELIT
enumeration INFO
enumeration DMCA
attributes
Name  Type  Use  Default  Fixed  annotation
Retractionxs:boolean
Commentsxs:string
source <xs:element name="Type" type="type_infringement_type" minOccurs="0"/>

element Infringement/Detection
diagram ACNS2v1_1_p40.png
namespace http://www.movielabs.com/ACNS
type type_Detection
source <xs:element name="Detection" type="type_Detection" minOccurs="0"/>

element Infringement/Verification
diagram ACNS2v1_1_p41.png
namespace http://www.movielabs.com/ACNS
type type_Verification
source <xs:element name="Verification" type="type_Verification" minOccurs="0"/>

element Infringement/InternalTracking
diagram ACNS2v1_1_p42.png
namespace http://www.movielabs.com/ACNS
type type_InternalTracking
attributes
Name  Type  Use  Default  Fixed  annotation
CurrentSequencexs:int
InternalCaseNumberxs:stringrequired
source <xs:element name="InternalTracking" type="type_InternalTracking" minOccurs="0" maxOccurs="unbounded"/>

element Infringement/TextNotice
diagram ACNS2v1_1_p43.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="TextNotice" type="xs:string" minOccurs="0"/>

element Infringement/VerifiedData
diagram ACNS2v1_1_p44.png
namespace http://www.movielabs.com/ACNS
type xs:base64Binary
source <xs:element name="VerifiedData" type="xs:base64Binary" minOccurs="0"/>

element NoticeAck
diagram ACNS2v1_1_p45.png
namespace http://www.movielabs.com/ACNS
type type_NoticeAckList
source <xs:element name="NoticeAck" type="type_NoticeAckList"/>

element StatusRequest
diagram ACNS2v1_1_p46.png
namespace http://www.movielabs.com/ACNS
type type_StatusRequest
attributes
Name  Type  Use  Default  Fixed  annotation
TimeStampxs:dateTime
source <xs:element name="StatusRequest" type="type_StatusRequest"/>

element StatusUpdate
diagram ACNS2v1_1_p47.png
namespace http://www.movielabs.com/ACNS
type type_StatusUpdate
attributes
Name  Type  Use  Default  Fixed  annotation
TimeStampxs:dateTimerequired
ReqTimexs:dateTime
source <xs:element name="StatusUpdate" type="type_StatusUpdate"/>

element Verification
diagram ACNS2v1_1_p48.png
namespace http://www.movielabs.com/ACNS
type type_Verification
source <xs:element name="Verification" type="type_Verification"/>

complexType Case
diagram ACNS2v1_1_p49.png
namespace http://www.movielabs.com/ACNS
source <xs:complexType name="Case">
  <xs:all>
    <xs:element name="ID" type="xs:string"/>
    <xs:element name="Ref_URL" type="xs:anyURI" minOccurs="0"/>
    <xs:element name="Status" type="xs:string" minOccurs="0"/>
    <xs:element name="Severity" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="Normal"/>
          <xs:enumeration value="Low"/>
          <xs:enumeration value="High"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
  </xs:all>
</xs:complexType>

element Case/ID
diagram ACNS2v1_1_p50.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="ID" type="xs:string"/>

element Case/Ref_URL
diagram ACNS2v1_1_p51.png
namespace http://www.movielabs.com/ACNS
type xs:anyURI
source <xs:element name="Ref_URL" type="xs:anyURI" minOccurs="0"/>

element Case/Status
diagram ACNS2v1_1_p52.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Status" type="xs:string" minOccurs="0"/>

element Case/Severity
diagram ACNS2v1_1_p53.png
namespace http://www.movielabs.com/ACNS
type restriction of xs:string
facets
Kind Value annotation
enumeration Normal
enumeration Low
enumeration High
source <xs:element name="Severity" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="Normal"/>
      <xs:enumeration value="Low"/>
      <xs:enumeration value="High"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

complexType Contact
diagram ACNS2v1_1_p54.png
namespace http://www.movielabs.com/ACNS
source <xs:complexType name="Contact">
  <xs:all>
    <xs:element name="Entity" type="xs:string"/>
    <xs:element name="Contact" type="xs:string" minOccurs="0"/>
    <xs:element name="Address" type="xs:string" minOccurs="0"/>
    <xs:element name="Phone" type="xs:string" minOccurs="0"/>
    <xs:element name="Email" type="xs:string"/>
    <xs:element name="ContactURL" type="xs:anyURI" minOccurs="0"/>
  </xs:all>
</xs:complexType>

element Contact/Entity
diagram ACNS2v1_1_p55.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Entity" type="xs:string"/>

element Contact/Contact
diagram ACNS2v1_1_p56.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Contact" type="xs:string" minOccurs="0"/>

element Contact/Address
diagram ACNS2v1_1_p57.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Address" type="xs:string" minOccurs="0"/>

element Contact/Phone
diagram ACNS2v1_1_p58.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Phone" type="xs:string" minOccurs="0"/>

element Contact/Email
diagram ACNS2v1_1_p59.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Email" type="xs:string"/>

element Contact/ContactURL
diagram ACNS2v1_1_p60.png
namespace http://www.movielabs.com/ACNS
type xs:anyURI
source <xs:element name="ContactURL" type="xs:anyURI" minOccurs="0"/>

complexType type_AlsoSeen
diagram ACNS2v1_1_p61.png
namespace http://www.movielabs.com/ACNS
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  annotation
Startxs:dateTimerequired
Endxs:dateTimerequired
source <xs:complexType name="type_AlsoSeen">
  <xs:simpleContent>
    <xs:extension base="xs:string">
      <xs:attribute name="Start" type="xs:dateTime" use="required"/>
      <xs:attribute name="End" type="xs:dateTime" use="required"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>

attribute type_AlsoSeen/@Start
type xs:dateTime
source <xs:attribute name="Start" type="xs:dateTime" use="required"/>

attribute type_AlsoSeen/@End
type xs:dateTime
source <xs:attribute name="End" type="xs:dateTime" use="required"/>

complexType type_Asset
diagram ACNS2v1_1_p62.png
namespace http://www.movielabs.com/ACNS
source <xs:complexType name="type_Asset">
  <xs:sequence>
    <xs:element name="OriginalAssetName" type="xs:string"/>
    <xs:element name="OriginalAssetID" minOccurs="0">
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="xs:string">
            <xs:attribute name="type" type="xs:string" use="required"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element type_Asset/OriginalAssetName
diagram ACNS2v1_1_p63.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="OriginalAssetName" type="xs:string"/>

element type_Asset/OriginalAssetID
diagram ACNS2v1_1_p64.png
namespace http://www.movielabs.com/ACNS
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  annotation
typexs:stringrequired
source <xs:element name="OriginalAssetID" minOccurs="0">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:string">
        <xs:attribute name="type" type="xs:string" use="required"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

attribute type_Asset/OriginalAssetID/@type
type xs:string
source <xs:attribute name="type" type="xs:string" use="required"/>

complexType type_BinaryImage
diagram ACNS2v1_1_p65.png
namespace http://www.movielabs.com/ACNS
type extension of xmime:base64Binary
attributes
Name  Type  Use  Default  Fixed  annotation
contentType
source <xs:complexType name="type_BinaryImage">
  <xs:complexContent>
    <xs:extension base="xmime:base64Binary"/>
  </xs:complexContent>
</xs:complexType>

complexType type_Content
diagram ACNS2v1_1_p66.png
namespace http://www.movielabs.com/ACNS
source <xs:complexType name="type_Content">
  <xs:sequence>
    <xs:element name="Item" type="type_Item" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

element type_Content/Item
diagram ACNS2v1_1_p67.png
namespace http://www.movielabs.com/ACNS
type type_Item
source <xs:element name="Item" type="type_Item" maxOccurs="unbounded"/>

complexType type_ContentMatched
diagram ACNS2v1_1_p68.png
namespace http://www.movielabs.com/ACNS
attributes
Name  Type  Use  Default  Fixed  annotation
Audioxs:boolean
Videoxs:boolean
Textxs:boolean
Imagexs:boolean
MatchThresholdderived by: xs:int
Fingerprintxs:boolean
Humanxs:boolean
source <xs:complexType name="type_ContentMatched">
  <xs:attribute name="Audio" type="xs:boolean"/>
  <xs:attribute name="Video" type="xs:boolean"/>
  <xs:attribute name="Text" type="xs:boolean"/>
  <xs:attribute name="Image" type="xs:boolean"/>
  <xs:attribute name="MatchThreshold">
    <xs:simpleType>
      <xs:restriction base="xs:int">
        <xs:minInclusive value="0"/>
        <xs:maxInclusive value="100"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="Fingerprint" type="xs:boolean"/>
  <xs:attribute name="Human" type="xs:boolean"/>
</xs:complexType>

attribute type_ContentMatched/@Audio
type xs:boolean
source <xs:attribute name="Audio" type="xs:boolean"/>

attribute type_ContentMatched/@Video
type xs:boolean
source <xs:attribute name="Video" type="xs:boolean"/>

attribute type_ContentMatched/@Text
type xs:boolean
source <xs:attribute name="Text" type="xs:boolean"/>

attribute type_ContentMatched/@Image
type xs:boolean
source <xs:attribute name="Image" type="xs:boolean"/>

attribute type_ContentMatched/@MatchThreshold
type restriction of xs:int
source <xs:attribute name="MatchThreshold">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="100"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute type_ContentMatched/@Fingerprint
type xs:boolean
source <xs:attribute name="Fingerprint" type="xs:boolean"/>

attribute type_ContentMatched/@Human
type xs:boolean
source <xs:attribute name="Human" type="xs:boolean"/>

complexType type_CounterNotice
diagram ACNS2v1_1_p69.png
namespace http://www.movielabs.com/ACNS
attributes
Name  Type  Use  Default  Fixed  annotation
TimeStampxs:dateTimerequired
DMCAxs:boolean
source <xs:complexType name="type_CounterNotice">
  <xs:all>
    <xs:element name="Service_Provider" type="Contact"/>
    <xs:element name="Addl_Contact" type="Contact" minOccurs="0"/>
    <xs:element name="Subscriber" type="Contact"/>
    <xs:element name="CounternoticeContent" type="type_CounternoticeContent"/>
    <xs:element name="Notes" type="xs:string"/>
  </xs:all>
  <xs:attribute name="TimeStamp" type="xs:dateTime" use="required"/>
  <xs:attribute name="DMCA" type="xs:boolean"/>
</xs:complexType>

attribute type_CounterNotice/@TimeStamp
type xs:dateTime
source <xs:attribute name="TimeStamp" type="xs:dateTime" use="required"/>

attribute type_CounterNotice/@DMCA
type xs:boolean
source <xs:attribute name="DMCA" type="xs:boolean"/>

element type_CounterNotice/Service_Provider
diagram ACNS2v1_1_p70.png
namespace http://www.movielabs.com/ACNS
type Contact
source <xs:element name="Service_Provider" type="Contact"/>

element type_CounterNotice/Addl_Contact
diagram ACNS2v1_1_p71.png
namespace http://www.movielabs.com/ACNS
type Contact
source <xs:element name="Addl_Contact" type="Contact" minOccurs="0"/>

element type_CounterNotice/Subscriber
diagram ACNS2v1_1_p72.png
namespace http://www.movielabs.com/ACNS
type Contact
source <xs:element name="Subscriber" type="Contact"/>

element type_CounterNotice/CounternoticeContent
diagram ACNS2v1_1_p73.png
namespace http://www.movielabs.com/ACNS
type type_CounternoticeContent
attributes
Name  Type  Use  Default  Fixed  annotation
RejectReasonderived by: xs:stringoptional
OtherReasonxs:stringoptional
ProperlySignedxs:booleanoptional
Consentxs:booleanoptional
Statementxs:stringoptional
source <xs:element name="CounternoticeContent" type="type_CounternoticeContent"/>

element type_CounterNotice/Notes
diagram ACNS2v1_1_p74.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Notes" type="xs:string"/>

complexType type_CounternoticeContent
diagram ACNS2v1_1_p75.png
namespace http://www.movielabs.com/ACNS
attributes
Name  Type  Use  Default  Fixed  annotation
RejectReasonderived by: xs:stringoptional
OtherReasonxs:stringoptional
ProperlySignedxs:booleanoptional
Consentxs:booleanoptional
Statementxs:stringoptional
source <xs:complexType name="type_CounternoticeContent">
  <xs:all>
    <xs:element name="NoticeText" type="xs:string" minOccurs="0"/>
    <xs:element name="NoticeImage" minOccurs="0">
      <xs:complexType>
        <xs:complexContent>
          <xs:extension base="type_BinaryImage"/>
        </xs:complexContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="Notes" type="xs:string" minOccurs="0"/>
  </xs:all>
  <xs:attribute name="RejectReason" use="optional">
    <xs:simpleType>
      <xs:restriction base="xs:string">
        <xs:enumeration value="IOWN"/>
        <xs:enumeration value="FAIRUSEFREESPEECH"/>
        <xs:enumeration value="MISIDENTIFIED"/>
        <xs:enumeration value="OTHER"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="OtherReason" type="xs:string" use="optional"/>
  <xs:attribute name="ProperlySigned" type="xs:boolean" use="optional"/>
  <xs:attribute name="Consent" type="xs:boolean" use="optional"/>
  <xs:attribute name="Statement" type="xs:string" use="optional"/>
</xs:complexType>

attribute type_CounternoticeContent/@RejectReason
type restriction of xs:string
facets
Kind Value annotation
enumeration IOWN
enumeration FAIRUSEFREESPEECH
enumeration MISIDENTIFIED
enumeration OTHER
source <xs:attribute name="RejectReason" use="optional">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="IOWN"/>
      <xs:enumeration value="FAIRUSEFREESPEECH"/>
      <xs:enumeration value="MISIDENTIFIED"/>
      <xs:enumeration value="OTHER"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute type_CounternoticeContent/@OtherReason
type xs:string
source <xs:attribute name="OtherReason" type="xs:string" use="optional"/>

attribute type_CounternoticeContent/@ProperlySigned
type xs:boolean
source <xs:attribute name="ProperlySigned" type="xs:boolean" use="optional"/>

attribute type_CounternoticeContent/@Consent
type xs:boolean
source <xs:attribute name="Consent" type="xs:boolean" use="optional"/>

attribute type_CounternoticeContent/@Statement
type xs:string
source <xs:attribute name="Statement" type="xs:string" use="optional"/>

element type_CounternoticeContent/NoticeText
diagram ACNS2v1_1_p76.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="NoticeText" type="xs:string" minOccurs="0"/>

element type_CounternoticeContent/NoticeImage
diagram ACNS2v1_1_p77.png
namespace http://www.movielabs.com/ACNS
type extension of type_BinaryImage
attributes
Name  Type  Use  Default  Fixed  annotation
contentType
source <xs:element name="NoticeImage" minOccurs="0">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="type_BinaryImage"/>
    </xs:complexContent>
  </xs:complexType>
</xs:element>

element type_CounternoticeContent/Notes
diagram ACNS2v1_1_p78.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Notes" type="xs:string" minOccurs="0"/>

complexType type_Detection
diagram ACNS2v1_1_p79.png
namespace http://www.movielabs.com/ACNS
source <xs:complexType name="type_Detection">
  <xs:sequence>
    <xs:element name="Asset" type="type_Asset"/>
    <xs:element name="ContentMatched" type="type_ContentMatched" minOccurs="0"/>
    <xs:element name="HashMatched" type="xs:boolean" minOccurs="0"/>
    <xs:element name="MetadataMatched" type="xs:boolean" minOccurs="0"/>
    <xs:element name="WatermarkMatched" type="type_WatermarkMatched" minOccurs="0"/>
    <xs:element name="VerificationID" type="xs:string"/>
    <xs:element name="VerifiedDataLoc" type="xs:anyURI" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element type_Detection/Asset
diagram ACNS2v1_1_p80.png
namespace http://www.movielabs.com/ACNS
type type_Asset
source <xs:element name="Asset" type="type_Asset"/>

element type_Detection/ContentMatched
diagram ACNS2v1_1_p81.png
namespace http://www.movielabs.com/ACNS
type type_ContentMatched
attributes
Name  Type  Use  Default  Fixed  annotation
Audioxs:boolean
Videoxs:boolean
Textxs:boolean
Imagexs:boolean
MatchThresholdderived by: xs:int
Fingerprintxs:boolean
Humanxs:boolean
source <xs:element name="ContentMatched" type="type_ContentMatched" minOccurs="0"/>

element type_Detection/HashMatched
diagram ACNS2v1_1_p82.png
namespace http://www.movielabs.com/ACNS
type xs:boolean
source <xs:element name="HashMatched" type="xs:boolean" minOccurs="0"/>

element type_Detection/MetadataMatched
diagram ACNS2v1_1_p83.png
namespace http://www.movielabs.com/ACNS
type xs:boolean
source <xs:element name="MetadataMatched" type="xs:boolean" minOccurs="0"/>

element type_Detection/WatermarkMatched
diagram ACNS2v1_1_p84.png
namespace http://www.movielabs.com/ACNS
type type_WatermarkMatched
attributes
Name  Type  Use  Default  Fixed  annotation
typexs:stringrequired
payloadxs:string
source <xs:element name="WatermarkMatched" type="type_WatermarkMatched" minOccurs="0"/>

element type_Detection/VerificationID
diagram ACNS2v1_1_p85.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="VerificationID" type="xs:string"/>

element type_Detection/VerifiedDataLoc
diagram ACNS2v1_1_p86.png
namespace http://www.movielabs.com/ACNS
type xs:anyURI
source <xs:element name="VerifiedDataLoc" type="xs:anyURI" minOccurs="0"/>

complexType type_Disposition
diagram ACNS2v1_1_p87.png
namespace http://www.movielabs.com/ACNS
attributes
Name  Type  Use  Default  Fixed  annotation
Sequencexs:intrequired
Startxs:dateTimerequired
Endxs:dateTime
source <xs:complexType name="type_Disposition">
  <xs:sequence>
    <xs:element name="InternalStatus" type="xs:string"/>
    <xs:element name="Comments" type="xs:string" minOccurs="0"/>
    <xs:element name="Contact" type="Contact"/>
  </xs:sequence>
  <xs:attribute name="Sequence" type="xs:int" use="required"/>
  <xs:attribute name="Start" type="xs:dateTime" use="required"/>
  <xs:attribute name="End" type="xs:dateTime"/>
</xs:complexType>

attribute type_Disposition/@Sequence
type xs:int
source <xs:attribute name="Sequence" type="xs:int" use="required"/>

attribute type_Disposition/@Start
type xs:dateTime
source <xs:attribute name="Start" type="xs:dateTime" use="required"/>

attribute type_Disposition/@End
type xs:dateTime
source <xs:attribute name="End" type="xs:dateTime"/>

element type_Disposition/InternalStatus
diagram ACNS2v1_1_p88.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="InternalStatus" type="xs:string"/>

element type_Disposition/Comments
diagram ACNS2v1_1_p89.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Comments" type="xs:string" minOccurs="0"/>

element type_Disposition/Contact
diagram ACNS2v1_1_p90.png
namespace http://www.movielabs.com/ACNS
type Contact
source <xs:element name="Contact" type="Contact"/>

complexType type_Hash
diagram ACNS2v1_1_p91.png
namespace http://www.movielabs.com/ACNS
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  annotation
Typexs:stringrequired
source <xs:complexType name="type_Hash">
  <xs:simpleContent>
    <xs:extension base="xs:string">
      <xs:attribute name="Type" type="xs:string" use="required"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>

attribute type_Hash/@Type
type xs:string
source <xs:attribute name="Type" type="xs:string" use="required"/>

complexType type_infringement_type
diagram ACNS2v1_1_p92.png
namespace http://www.movielabs.com/ACNS
type extension of type_infringement_type_enumeration
facets
Kind Value annotation
enumeration OTHER
enumeration INFRINGEMENT
enumeration PRELIT
enumeration INFO
enumeration DMCA
attributes
Name  Type  Use  Default  Fixed  annotation
Retractionxs:boolean
Commentsxs:string
source <xs:complexType name="type_infringement_type">
  <xs:simpleContent>
    <xs:extension base="type_infringement_type_enumeration">
      <xs:attribute name="Retraction" type="xs:boolean"/>
      <xs:attribute name="Comments" type="xs:string"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>

attribute type_infringement_type/@Retraction
type xs:boolean
source <xs:attribute name="Retraction" type="xs:boolean"/>

attribute type_infringement_type/@Comments
type xs:string
source <xs:attribute name="Comments" type="xs:string"/>

complexType type_InternalTracking
diagram ACNS2v1_1_p93.png
namespace http://www.movielabs.com/ACNS
attributes
Name  Type  Use  Default  Fixed  annotation
CurrentSequencexs:int
InternalCaseNumberxs:stringrequired
source <xs:complexType name="type_InternalTracking">
  <xs:sequence>
    <xs:element name="PrimarySubject" type="type_Subject"/>
    <xs:element name="Disposition" type="type_Disposition" minOccurs="0"/>
    <xs:element name="Mapping" type="type_Mapping" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="CurrentSequence" type="xs:int"/>
  <xs:attribute name="InternalCaseNumber" type="xs:string" use="required"/>
</xs:complexType>

attribute type_InternalTracking/@CurrentSequence
type xs:int
source <xs:attribute name="CurrentSequence" type="xs:int"/>

attribute type_InternalTracking/@InternalCaseNumber
type xs:string
source <xs:attribute name="InternalCaseNumber" type="xs:string" use="required"/>

element type_InternalTracking/PrimarySubject
diagram ACNS2v1_1_p94.png
namespace http://www.movielabs.com/ACNS
type type_Subject
source <xs:element name="PrimarySubject" type="type_Subject"/>

element type_InternalTracking/Disposition
diagram ACNS2v1_1_p95.png
namespace http://www.movielabs.com/ACNS
type type_Disposition
attributes
Name  Type  Use  Default  Fixed  annotation
Sequencexs:intrequired
Startxs:dateTimerequired
Endxs:dateTime
source <xs:element name="Disposition" type="type_Disposition" minOccurs="0"/>

element type_InternalTracking/Mapping
diagram ACNS2v1_1_p96.png
namespace http://www.movielabs.com/ACNS
type type_Mapping
attributes
Name  Type  Use  Default  Fixed  annotation
OriginalIPtype_IPAddressrequired
OriginalPorttype_Portrequired
MappedIPtype_IPAddressrequired
MappedPorttype_Portoptional
MappedProtocolderived by: xs:intoptional
Timexs:dateTimerequired
LeaseTimexs:time
LeaseHeldxs:time
source <xs:element name="Mapping" type="type_Mapping" minOccurs="0"/>

complexType type_IPAssignee
diagram ACNS2v1_1_p97.png
namespace http://www.movielabs.com/ACNS
type extension of type_Subject
attributes
Name  Type  Use  Default  Fixed  annotation
Primaryxs:boolean
Relationshipxs:string
source <xs:complexType name="type_IPAssignee">
  <xs:complexContent>
    <xs:extension base="type_Subject">
      <xs:attribute name="Primary" type="xs:boolean"/>
      <xs:attribute name="Relationship" type="xs:string"/>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

attribute type_IPAssignee/@Primary
type xs:boolean
source <xs:attribute name="Primary" type="xs:boolean"/>

attribute type_IPAssignee/@Relationship
type xs:string
source <xs:attribute name="Relationship" type="xs:string"/>

complexType type_Item
diagram ACNS2v1_1_p98.png
namespace http://www.movielabs.com/ACNS
source <xs:complexType name="type_Item">
  <xs:sequence>
    <xs:element name="TimeStamp" type="xs:dateTime"/>
    <xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="Title" type="xs:string" minOccurs="0"/>
    <xs:element name="Artist" type="xs:string" minOccurs="0"/>
    <xs:element name="FileName">
      <xs:simpleType>
        <xs:restriction base="xs:string"/>
      </xs:simpleType>
    </xs:element>
    <xs:element name="FileSize" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:int">
          <xs:minInclusive value="0"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="URL" type="xs:anyURI" minOccurs="0"/>
    <xs:element name="HostURI" type="xs:anyURI" minOccurs="0"/>
    <xs:element name="Type" type="xs:string" minOccurs="0"/>
    <xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>
    <xs:element name="Hash" type="type_Hash" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element type_Item/TimeStamp
diagram ACNS2v1_1_p99.png
namespace http://www.movielabs.com/ACNS
type xs:dateTime
source <xs:element name="TimeStamp" type="xs:dateTime"/>

element type_Item/AlsoSeen
diagram ACNS2v1_1_p100.png
namespace http://www.movielabs.com/ACNS
type type_AlsoSeen
attributes
Name  Type  Use  Default  Fixed  annotation
Startxs:dateTimerequired
Endxs:dateTimerequired
source <xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>

element type_Item/Title
diagram ACNS2v1_1_p101.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Title" type="xs:string" minOccurs="0"/>

element type_Item/Artist
diagram ACNS2v1_1_p102.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Artist" type="xs:string" minOccurs="0"/>

element type_Item/FileName
diagram ACNS2v1_1_p103.png
namespace http://www.movielabs.com/ACNS
type restriction of xs:string
source <xs:element name="FileName">
  <xs:simpleType>
    <xs:restriction base="xs:string"/>
  </xs:simpleType>
</xs:element>

element type_Item/FileSize
diagram ACNS2v1_1_p104.png
namespace http://www.movielabs.com/ACNS
type restriction of xs:int
source <xs:element name="FileSize" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element type_Item/URL
diagram ACNS2v1_1_p105.png
namespace http://www.movielabs.com/ACNS
type xs:anyURI
source <xs:element name="URL" type="xs:anyURI" minOccurs="0"/>

element type_Item/HostURI
diagram ACNS2v1_1_p106.png
namespace http://www.movielabs.com/ACNS
type xs:anyURI
source <xs:element name="HostURI" type="xs:anyURI" minOccurs="0"/>

element type_Item/Type
diagram ACNS2v1_1_p107.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Type" type="xs:string" minOccurs="0"/>

element type_Item/ExplicitType
diagram ACNS2v1_1_p108.png
namespace http://www.movielabs.com/ACNS
type type_ExplicitType
facets
Kind Value annotation
enumeration Movie
enumeration Game
enumeration Software
enumeration Music
enumeration Document
enumeration Image
source <xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>

element type_Item/Hash
diagram ACNS2v1_1_p109.png
namespace http://www.movielabs.com/ACNS
type type_Hash
attributes
Name  Type  Use  Default  Fixed  annotation
Typexs:stringrequired
source <xs:element name="Hash" type="type_Hash" minOccurs="0"/>

complexType type_Mapping
diagram ACNS2v1_1_p110.png
namespace http://www.movielabs.com/ACNS
attributes
Name  Type  Use  Default  Fixed  annotation
OriginalIPtype_IPAddressrequired
OriginalPorttype_Portrequired
MappedIPtype_IPAddressrequired
MappedPorttype_Portoptional
MappedProtocolderived by: xs:intoptional
Timexs:dateTimerequired
LeaseTimexs:time
LeaseHeldxs:time
source <xs:complexType name="type_Mapping">
  <xs:attributeGroup ref="type_OriginalIPPortAttribute"/>
  <xs:attributeGroup ref="type_MappedIPPortAttribute"/>
  <xs:attribute name="Time" type="xs:dateTime" use="required"/>
  <xs:attribute name="LeaseTime" type="xs:time"/>
  <xs:attribute name="LeaseHeld" type="xs:time"/>
</xs:complexType>

attribute type_Mapping/@Time
type xs:dateTime
source <xs:attribute name="Time" type="xs:dateTime" use="required"/>

attribute type_Mapping/@LeaseTime
type xs:time
source <xs:attribute name="LeaseTime" type="xs:time"/>

attribute type_Mapping/@LeaseHeld
type xs:time
source <xs:attribute name="LeaseHeld" type="xs:time"/>

complexType type_NoticeAck
diagram ACNS2v1_1_p111.png
namespace http://www.movielabs.com/ACNS
attributes
Name  Type  Use  Default  Fixed  annotation
Acceptedxs:boolean
RejectReasonderived by: xs:stringoptional
TimeStampxs:dateTime
Sequencexs:intoptional
source <xs:complexType name="type_NoticeAck">
  <xs:all>
    <xs:element name="Case" type="Case"/>
    <xs:element name="Complianant" type="Contact"/>
    <xs:element name="Service_Provider" type="Contact"/>
    <xs:element name="Addl_Contact" type="Contact" minOccurs="0"/>
    <xs:element name="Notes" type="xs:string"/>
  </xs:all>
  <xs:attribute name="Accepted" type="xs:boolean"/>
  <xs:attribute name="RejectReason" use="optional">
    <xs:simpleType>
      <xs:restriction base="xs:string">
        <xs:enumeration value="UNKNOWN_RECIPIENT"/>
        <xs:enumeration value="IP_OUT_OF_RANGE"/>
        <xs:enumeration value="MULTIPLE"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
  <xs:attribute name="TimeStamp" type="xs:dateTime"/>
  <xs:attribute name="Sequence" type="xs:int" use="optional"/>
</xs:complexType>

attribute type_NoticeAck/@Accepted
type xs:boolean
source <xs:attribute name="Accepted" type="xs:boolean"/>

attribute type_NoticeAck/@RejectReason
type restriction of xs:string
facets
Kind Value annotation
enumeration UNKNOWN_RECIPIENT
enumeration IP_OUT_OF_RANGE
enumeration MULTIPLE
source <xs:attribute name="RejectReason" use="optional">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="UNKNOWN_RECIPIENT"/>
      <xs:enumeration value="IP_OUT_OF_RANGE"/>
      <xs:enumeration value="MULTIPLE"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute type_NoticeAck/@TimeStamp
type xs:dateTime
source <xs:attribute name="TimeStamp" type="xs:dateTime"/>

attribute type_NoticeAck/@Sequence
type xs:int
source <xs:attribute name="Sequence" type="xs:int" use="optional"/>

element type_NoticeAck/Case
diagram ACNS2v1_1_p112.png
namespace http://www.movielabs.com/ACNS
type Case
source <xs:element name="Case" type="Case"/>

element type_NoticeAck/Complianant
diagram ACNS2v1_1_p113.png
namespace http://www.movielabs.com/ACNS
type Contact
source <xs:element name="Complianant" type="Contact"/>

element type_NoticeAck/Service_Provider
diagram ACNS2v1_1_p114.png
namespace http://www.movielabs.com/ACNS
type Contact
source <xs:element name="Service_Provider" type="Contact"/>

element type_NoticeAck/Addl_Contact
diagram ACNS2v1_1_p115.png
namespace http://www.movielabs.com/ACNS
type Contact
source <xs:element name="Addl_Contact" type="Contact" minOccurs="0"/>

element type_NoticeAck/Notes
diagram ACNS2v1_1_p116.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Notes" type="xs:string"/>

complexType type_NoticeAckList
diagram ACNS2v1_1_p117.png
namespace http://www.movielabs.com/ACNS
source <xs:complexType name="type_NoticeAckList">
  <xs:sequence>
    <xs:element ref="NoticeAck" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>

complexType type_StatusRequest
diagram ACNS2v1_1_p118.png
namespace http://www.movielabs.com/ACNS
attributes
Name  Type  Use  Default  Fixed  annotation
TimeStampxs:dateTime
source <xs:complexType name="type_StatusRequest">
  <xs:all>
    <xs:element name="Case" type="Case"/>
    <xs:element name="Complainant" type="Contact"/>
    <xs:element name="ServiceProvider" type="Contact"/>
  </xs:all>
  <xs:attribute name="TimeStamp" type="xs:dateTime"/>
</xs:complexType>

attribute type_StatusRequest/@TimeStamp
type xs:dateTime
source <xs:attribute name="TimeStamp" type="xs:dateTime"/>

element type_StatusRequest/Case
diagram ACNS2v1_1_p119.png
namespace http://www.movielabs.com/ACNS
type Case
source <xs:element name="Case" type="Case"/>

element type_StatusRequest/Complainant
diagram ACNS2v1_1_p120.png
namespace http://www.movielabs.com/ACNS
type Contact
source <xs:element name="Complainant" type="Contact"/>

element type_StatusRequest/ServiceProvider
diagram ACNS2v1_1_p121.png
namespace http://www.movielabs.com/ACNS
type Contact
source <xs:element name="ServiceProvider" type="Contact"/>

complexType type_StatusUpdate
diagram ACNS2v1_1_p122.png
namespace http://www.movielabs.com/ACNS
attributes
Name  Type  Use  Default  Fixed  annotation
TimeStampxs:dateTimerequired
ReqTimexs:dateTime
source <xs:complexType name="type_StatusUpdate">
  <xs:all>
    <xs:element name="Case" type="Case"/>
    <xs:element name="Complainant" type="Contact"/>
    <xs:element name="Service_Provider" type="Contact"/>
    <xs:element name="HumanInt" type="Contact" minOccurs="0"/>
    <xs:element name="Disposition">
      <xs:complexType>
        <xs:attribute name="Status">
          <xs:simpleType>
            <xs:restriction base="xs:string">
              <xs:enumeration value="OPEN"/>
              <xs:enumeration value="CLOSED"/>
              <xs:enumeration value="REJECTED"/>
              <xs:enumeration value="COUNTERNOTICE"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="infoStatus" use="optional">
          <xs:simpleType>
            <xs:restriction base="xs:string">
              <xs:enumeration value="INFO"/>
              <xs:enumeration value="ACTION"/>
              <xs:enumeration value="TERM"/>
              <xs:enumeration value="NOACTION"/>
              <xs:enumeration value="NONEPOS"/>
            </xs:restriction>
          </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="Level" type="xs:int"/>
      </xs:complexType>
    </xs:element>
    <xs:element name="DispositionUsenet" type="type_UsenetDisposition" minOccurs="0"/>
    <xs:element name="CounterNotice" type="type_CounterNotice" minOccurs="0"/>
    <xs:element name="NoticeAckList" type="type_NoticeAckList" minOccurs="0"/>
    <xs:element name="Content" type="type_Content" minOccurs="0"/>
    <xs:element name="Notes" type="xs:string" minOccurs="0"/>
  </xs:all>
  <xs:attribute name="TimeStamp" type="xs:dateTime" use="required"/>
  <xs:attribute name="ReqTime" type="xs:dateTime"/>
</xs:complexType>

attribute type_StatusUpdate/@TimeStamp
type xs:dateTime
source <xs:attribute name="TimeStamp" type="xs:dateTime" use="required"/>

attribute type_StatusUpdate/@ReqTime
type xs:dateTime
source <xs:attribute name="ReqTime" type="xs:dateTime"/>

element type_StatusUpdate/Case
diagram ACNS2v1_1_p123.png
namespace http://www.movielabs.com/ACNS
type Case
source <xs:element name="Case" type="Case"/>

element type_StatusUpdate/Complainant
diagram ACNS2v1_1_p124.png
namespace http://www.movielabs.com/ACNS
type Contact
source <xs:element name="Complainant" type="Contact"/>

element type_StatusUpdate/Service_Provider
diagram ACNS2v1_1_p125.png
namespace http://www.movielabs.com/ACNS
type Contact
source <xs:element name="Service_Provider" type="Contact"/>

element type_StatusUpdate/HumanInt
diagram ACNS2v1_1_p126.png
namespace http://www.movielabs.com/ACNS
type Contact
source <xs:element name="HumanInt" type="Contact" minOccurs="0"/>

element type_StatusUpdate/Disposition
diagram ACNS2v1_1_p127.png
namespace http://www.movielabs.com/ACNS
attributes
Name  Type  Use  Default  Fixed  annotation
Statusderived by: xs:string
infoStatusderived by: xs:stringoptional
Levelxs:int
source <xs:element name="Disposition">
  <xs:complexType>
    <xs:attribute name="Status">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="OPEN"/>
          <xs:enumeration value="CLOSED"/>
          <xs:enumeration value="REJECTED"/>
          <xs:enumeration value="COUNTERNOTICE"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="infoStatus" use="optional">
      <xs:simpleType>
        <xs:restriction base="xs:string">
          <xs:enumeration value="INFO"/>
          <xs:enumeration value="ACTION"/>
          <xs:enumeration value="TERM"/>
          <xs:enumeration value="NOACTION"/>
          <xs:enumeration value="NONEPOS"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:attribute>
    <xs:attribute name="Level" type="xs:int"/>
  </xs:complexType>
</xs:element>

attribute type_StatusUpdate/Disposition/@Status
type restriction of xs:string
facets
Kind Value annotation
enumeration OPEN
enumeration CLOSED
enumeration REJECTED
enumeration COUNTERNOTICE
source <xs:attribute name="Status">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="OPEN"/>
      <xs:enumeration value="CLOSED"/>
      <xs:enumeration value="REJECTED"/>
      <xs:enumeration value="COUNTERNOTICE"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute type_StatusUpdate/Disposition/@infoStatus
type restriction of xs:string
facets
Kind Value annotation
enumeration INFO
enumeration ACTION
enumeration TERM
enumeration NOACTION
enumeration NONEPOS
source <xs:attribute name="infoStatus" use="optional">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="INFO"/>
      <xs:enumeration value="ACTION"/>
      <xs:enumeration value="TERM"/>
      <xs:enumeration value="NOACTION"/>
      <xs:enumeration value="NONEPOS"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute type_StatusUpdate/Disposition/@Level
type xs:int
source <xs:attribute name="Level" type="xs:int"/>

element type_StatusUpdate/DispositionUsenet
diagram ACNS2v1_1_p128.png
namespace http://www.movielabs.com/ACNS
type type_UsenetDisposition
source <xs:element name="DispositionUsenet" type="type_UsenetDisposition" minOccurs="0"/>

element type_StatusUpdate/CounterNotice
diagram ACNS2v1_1_p129.png
namespace http://www.movielabs.com/ACNS
type type_CounterNotice
attributes
Name  Type  Use  Default  Fixed  annotation
TimeStampxs:dateTimerequired
DMCAxs:boolean
source <xs:element name="CounterNotice" type="type_CounterNotice" minOccurs="0"/>

element type_StatusUpdate/NoticeAckList
diagram ACNS2v1_1_p130.png
namespace http://www.movielabs.com/ACNS
type type_NoticeAckList
source <xs:element name="NoticeAckList" type="type_NoticeAckList" minOccurs="0"/>

element type_StatusUpdate/Content
diagram ACNS2v1_1_p131.png
namespace http://www.movielabs.com/ACNS
type type_Content
source <xs:element name="Content" type="type_Content" minOccurs="0"/>

element type_StatusUpdate/Notes
diagram ACNS2v1_1_p132.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Notes" type="xs:string" minOccurs="0"/>

complexType type_Subject
diagram ACNS2v1_1_p133.png
namespace http://www.movielabs.com/ACNS
source <xs:complexType name="type_Subject">
  <xs:sequence>
    <xs:element name="SubjectContact" type="Contact"/>
    <xs:element name="SubjectID">
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="xs:string">
            <xs:attribute name="type" type="xs:string"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element type_Subject/SubjectContact
diagram ACNS2v1_1_p134.png
namespace http://www.movielabs.com/ACNS
type Contact
source <xs:element name="SubjectContact" type="Contact"/>

element type_Subject/SubjectID
diagram ACNS2v1_1_p135.png
namespace http://www.movielabs.com/ACNS
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  annotation
typexs:string
source <xs:element name="SubjectID">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:string">
        <xs:attribute name="type" type="xs:string"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

attribute type_Subject/SubjectID/@type
type xs:string
source <xs:attribute name="type" type="xs:string"/>

complexType type_UsenetDisposition
diagram ACNS2v1_1_p136.png
namespace http://www.movielabs.com/ACNS
source <xs:complexType name="type_UsenetDisposition">
  <xs:sequence>
    <xs:element name="Article" type="xs:anyURI"/>
    <xs:element name="Removed" type="xs:boolean"/>
    <xs:element name="CancelMsg" type="xs:boolean" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element type_UsenetDisposition/Article
diagram ACNS2v1_1_p137.png
namespace http://www.movielabs.com/ACNS
type xs:anyURI
source <xs:element name="Article" type="xs:anyURI"/>

element type_UsenetDisposition/Removed
diagram ACNS2v1_1_p138.png
namespace http://www.movielabs.com/ACNS
type xs:boolean
source <xs:element name="Removed" type="xs:boolean"/>

element type_UsenetDisposition/CancelMsg
diagram ACNS2v1_1_p139.png
namespace http://www.movielabs.com/ACNS
type xs:boolean
source <xs:element name="CancelMsg" type="xs:boolean" minOccurs="0"/>

complexType type_Verification
diagram ACNS2v1_1_p140.png
namespace http://www.movielabs.com/ACNS
source <xs:complexType name="type_Verification">
  <xs:sequence>
    <xs:element name="VerificationLevel" minOccurs="0">
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="xs:int">
            <xs:attribute name="Type" type="xs:string"/>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
    <xs:element name="Notes" type="xs:string" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element type_Verification/VerificationLevel
diagram ACNS2v1_1_p141.png
namespace http://www.movielabs.com/ACNS
type extension of xs:int
attributes
Name  Type  Use  Default  Fixed  annotation
Typexs:string
source <xs:element name="VerificationLevel" minOccurs="0">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:int">
        <xs:attribute name="Type" type="xs:string"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

attribute type_Verification/VerificationLevel/@Type
type xs:string
source <xs:attribute name="Type" type="xs:string"/>

element type_Verification/Notes
diagram ACNS2v1_1_p142.png
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:element name="Notes" type="xs:string" minOccurs="0"/>

complexType type_VerificationLevel
diagram ACNS2v1_1_p143.png
namespace http://www.movielabs.com/ACNS
type extension of xs:int
attributes
Name  Type  Use  Default  Fixed  annotation
Typexs:string
source <xs:complexType name="type_VerificationLevel">
  <xs:simpleContent>
    <xs:extension base="xs:int">
      <xs:attribute name="Type" type="xs:string"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>

attribute type_VerificationLevel/@Type
type xs:string
source <xs:attribute name="Type" type="xs:string"/>

complexType type_VerifiedImage
diagram ACNS2v1_1_p144.png
namespace http://www.movielabs.com/ACNS
source <xs:complexType name="type_VerifiedImage">
  <xs:sequence>
    <xs:sequence>
      <xs:element name="VerifiedImageBinary" maxOccurs="unbounded">
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="xs:base64Binary">
              <xs:attribute name="title" type="xs:string"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="VerifiedImageLocation" maxOccurs="unbounded">
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="xs:anyURI">
              <xs:attribute name="title"/>
              <xs:attribute name="username"/>
              <xs:attribute name="password"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:sequence>
</xs:complexType>

element type_VerifiedImage/VerifiedImageBinary
diagram ACNS2v1_1_p145.png
namespace http://www.movielabs.com/ACNS
type extension of xs:base64Binary
attributes
Name  Type  Use  Default  Fixed  annotation
titlexs:string
source <xs:element name="VerifiedImageBinary" maxOccurs="unbounded">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:base64Binary">
        <xs:attribute name="title" type="xs:string"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

attribute type_VerifiedImage/VerifiedImageBinary/@title
type xs:string
source <xs:attribute name="title" type="xs:string"/>

element type_VerifiedImage/VerifiedImageLocation
diagram ACNS2v1_1_p146.png
namespace http://www.movielabs.com/ACNS
type extension of xs:anyURI
attributes
Name  Type  Use  Default  Fixed  annotation
title
username
password
source <xs:element name="VerifiedImageLocation" maxOccurs="unbounded">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:anyURI">
        <xs:attribute name="title"/>
        <xs:attribute name="username"/>
        <xs:attribute name="password"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

attribute type_VerifiedImage/VerifiedImageLocation/@title
source <xs:attribute name="title"/>

attribute type_VerifiedImage/VerifiedImageLocation/@username
source <xs:attribute name="username"/>

attribute type_VerifiedImage/VerifiedImageLocation/@password
source <xs:attribute name="password"/>

complexType type_WatermarkMatched
diagram ACNS2v1_1_p147.png
namespace http://www.movielabs.com/ACNS
type extension of xs:string
attributes
Name  Type  Use  Default  Fixed  annotation
typexs:stringrequired
payloadxs:string
source <xs:complexType name="type_WatermarkMatched">
  <xs:simpleContent>
    <xs:extension base="xs:string">
      <xs:attribute name="type" type="xs:string" use="required"/>
      <xs:attribute name="payload" type="xs:string"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>

attribute type_WatermarkMatched/@type
type xs:string
source <xs:attribute name="type" type="xs:string" use="required"/>

attribute type_WatermarkMatched/@payload
type xs:string
source <xs:attribute name="payload" type="xs:string"/>

simpleType type_ExplicitType
namespace http://www.movielabs.com/ACNS
type restriction of xs:string
facets
Kind Value annotation
enumeration Movie
enumeration Game
enumeration Software
enumeration Music
enumeration Document
enumeration Image
source <xs:simpleType name="type_ExplicitType">
  <xs:restriction base="xs:string">
    <xs:enumeration value="Movie"/>
    <xs:enumeration value="Game"/>
    <xs:enumeration value="Software"/>
    <xs:enumeration value="Music"/>
    <xs:enumeration value="Document"/>
    <xs:enumeration value="Image"/>
  </xs:restriction>
</xs:simpleType>

simpleType type_infringement_type_enumeration
namespace http://www.movielabs.com/ACNS
type restriction of xs:string
facets
Kind Value annotation
enumeration OTHER
enumeration INFRINGEMENT
enumeration PRELIT
enumeration INFO
enumeration DMCA
source <xs:simpleType name="type_infringement_type_enumeration">
  <xs:restriction base="xs:string">
    <xs:enumeration value="OTHER"/>
    <xs:enumeration value="INFRINGEMENT"/>
    <xs:enumeration value="PRELIT"/>
    <xs:enumeration value="INFO"/>
    <xs:enumeration value="DMCA"/>
  </xs:restriction>
</xs:simpleType>

simpleType type_IPAddress
namespace http://www.movielabs.com/ACNS
type xs:string
source <xs:simpleType name="type_IPAddress">
  <xs:restriction base="xs:string"/>
</xs:simpleType>

simpleType type_Port
namespace http://www.movielabs.com/ACNS
type restriction of xs:int
source <xs:simpleType name="type_Port">
  <xs:restriction base="xs:int">
    <xs:minInclusive value="0"/>
    <xs:maxInclusive value="65535"/>
  </xs:restriction>
</xs:simpleType>

attributeGroup type_contentType
namespace http://www.movielabs.com/ACNS
attributes
Name  Type  Use  Default  Fixed  annotation
contentTypederived by: xs:stringrequired
source <xs:attributeGroup name="type_contentType">
  <xs:attribute name="contentType" use="required">
    <xs:simpleType>
      <xs:restriction base="xs:string">
        <xs:minLength value="3"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
</xs:attributeGroup>

attribute type_contentType/@contentType
type restriction of xs:string
source <xs:attribute name="contentType" use="required">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="3"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attributeGroup type_MappedIPPortAttribute
namespace http://www.movielabs.com/ACNS
attributes
Name  Type  Use  Default  Fixed  annotation
MappedIPtype_IPAddressrequired
MappedPorttype_Portoptional
MappedProtocolderived by: xs:intoptional
source <xs:attributeGroup name="type_MappedIPPortAttribute">
  <xs:attribute name="MappedIP" type="type_IPAddress" use="required"/>
  <xs:attribute name="MappedPort" type="type_Port" use="optional"/>
  <xs:attribute name="MappedProtocol" use="optional">
    <xs:simpleType>
      <xs:restriction base="xs:int">
        <xs:minInclusive value="0"/>
        <xs:maxInclusive value="254"/>
      </xs:restriction>
    </xs:simpleType>
  </xs:attribute>
</xs:attributeGroup>

attribute type_MappedIPPortAttribute/@MappedIP
type type_IPAddress
source <xs:attribute name="MappedIP" type="type_IPAddress" use="required"/>

attribute type_MappedIPPortAttribute/@MappedPort
type type_Port
source <xs:attribute name="MappedPort" type="type_Port" use="optional"/>

attribute type_MappedIPPortAttribute/@MappedProtocol
type restriction of xs:int
source <xs:attribute name="MappedProtocol" use="optional">
  <xs:simpleType>
    <xs:restriction base="xs:int">
      <xs:minInclusive value="0"/>
      <xs:maxInclusive value="254"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attributeGroup type_OriginalIPPortAttribute
namespace http://www.movielabs.com/ACNS
attributes
Name  Type  Use  Default  Fixed  annotation
OriginalIPtype_IPAddressrequired
OriginalPorttype_Portrequired
source <xs:attributeGroup name="type_OriginalIPPortAttribute">
  <xs:attribute name="OriginalIP" type="type_IPAddress" use="required"/>
  <xs:attribute name="OriginalPort" type="type_Port" use="required"/>
</xs:attributeGroup>

attribute type_OriginalIPPortAttribute/@OriginalIP
type type_IPAddress
source <xs:attribute name="OriginalIP" type="type_IPAddress" use="required"/>

attribute type_OriginalIPPortAttribute/@OriginalPort
type type_Port
source <xs:attribute name="OriginalPort" type="type_Port" use="required"/>

attribute contentType
namespace http://www.w3.org/2005/05/xmlmime
type restriction of xs:string
source <xs:attribute name="contentType">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="3"/>
    </xs:restriction>
  </xs:simpleType>
</xs:attribute>

attribute expectedContentTypes
namespace http://www.w3.org/2005/05/xmlmime
type xs:string
source <xs:attribute name="expectedContentTypes" type="xs:string"/>

complexType base64Binary
diagram ACNS2v1_1_p148.png
namespace http://www.w3.org/2005/05/xmlmime
type extension of xs:base64Binary
attributes
Name  Type  Use  Default  Fixed  annotation
contentType
source <xs:complexType name="base64Binary">
  <xs:simpleContent>
    <xs:extension base="xs:base64Binary">
      <xs:attribute ref="xmime:contentType"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>

complexType hexBinary
diagram ACNS2v1_1_p149.png
namespace http://www.w3.org/2005/05/xmlmime
type extension of xs:hexBinary
attributes
Name  Type  Use  Default  Fixed  annotation
contentType
source <xs:complexType name="hexBinary">
  <xs:simpleContent>
    <xs:extension base="xs:hexBinary">
      <xs:attribute ref="xmime:contentType"/>
    </xs:extension>
  </xs:simpleContent>
</xs:complexType>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
