Schema acns_v1.3.xsd

schema location:	http://www.acns.net/v1.3/acns_v1.3.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	http://www.acns.net/ACNS

Elements	Complex types	Simple types	Attributes	Attr. groups
CounterNotice	Case	type_ExplicitType	schemaVersion	type_contentType
Detection	Contact	type_infringement_type_enumeration		type_MappedIPPortAttribute
Infringement	type_AlsoSeen	type_IPAddress		type_OriginalIPPortAttribute
MessageEnvelope	type_Asset	type_MessageName

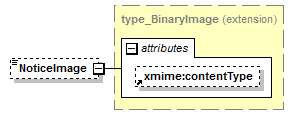

NoticeAck	type_BinaryImage	type_Port
NoticeStatus	type_Content
StatusRequest	type_ContentMatched
StatusUpdate	type_CounterNotice
Verification	type_CounternoticeContent
	type_Declaration
	type_Detection
	type_Disposition
	type_GRStatus
	type_Hash
	type_infringement_type
	type_InternalTracking
	type_IPAssignee
	type_Item
	type_Mapping
	type_Message
	type_NoticeAck
	type_NoticeAckList
	type_NoticeStatus
	type_StatusDisposition
	type_StatusRequest
	type_StatusSource
	type_StatusUpdate
	type_Subject
	type_UsenetDisposition
	type_Verification
	type_VerificationLevel
	type_VerifiedImage
	type_WatermarkMatched

schema location:	http://www.w3.org/2005/05/xmlmime
attributeFormDefault:
elementFormDefault:
targetNamespace:	http://www.w3.org/2005/05/xmlmime

Complex types	Attributes
base64Binary	contentType
hexBinary	expectedContentTypes

schema location:	C:\Program Files\Altova\Common2015\Schemas\xmldsig\files\xmldsig-core-schema.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	http://www.w3.org/2000/09/xmldsig#

Elements	Complex types	Simple types
CanonicalizationMethod	CanonicalizationMethodType	CryptoBinary
DigestMethod	DigestMethodType	DigestValueType
DigestValue	DSAKeyValueType	HMACOutputLengthType
DSAKeyValue	KeyInfoType
KeyInfo	KeyValueType
KeyName	ManifestType
KeyValue	ObjectType
Manifest	PGPDataType
MgmtData	ReferenceType
Object	RetrievalMethodType
PGPData	RSAKeyValueType
Reference	SignatureMethodType
RetrievalMethod	SignaturePropertiesType
RSAKeyValue	SignaturePropertyType

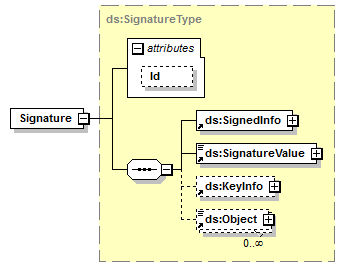

Signature	SignatureType
SignatureMethod	SignatureValueType

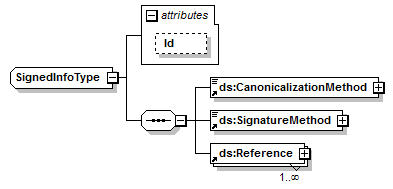

SignatureProperties	SignedInfoType
SignatureProperty	SPKIDataType
SignatureValue	TransformsType

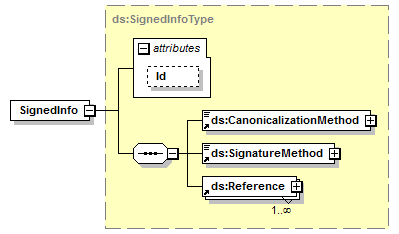

SignedInfo	TransformType
SPKIData	X509DataType
Transform	X509IssuerSerialType
Transforms
X509Data

element CounterNotice

diagram
namespace	http://www.acns.net/ACNS
type	type_CounterNotice
properties	content  complex

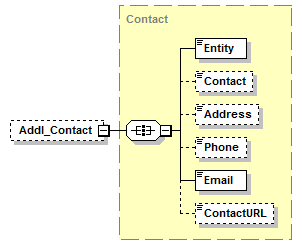

children	Service_Provider Addl_Contact Subscriber CounternoticeContent Notes
attributes	Name   Type   Use   Default   Fixed   Annotation TimeStamp   xs:dateTime   required         DMCA   xs:boolean
source	<xs:element name="CounterNotice" type="type_CounterNotice"/>

element Detection

diagram
namespace	http://www.acns.net/ACNS
type	type_Detection
properties	content  complex

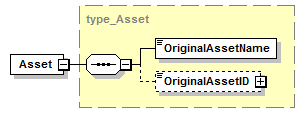

children	Asset ContentMatched HashMatched MetadataMatched WatermarkMatched VerificationID VerifiedDataLoc
source	<xs:element name="Detection" type="type_Detection"/>

element Infringement

diagram
namespace	http://www.acns.net/ACNS
properties	content  complex id  v0.7
children	Case Complainant Service_Provider Source Content History Notes Type Detection Verification InternalTracking TextNotice VerifiedData Declarations CopyrightHolder ComplainantRelationship
used by	complexType  type_Message
attributes	Name   Type   Use   Default   Fixed   Annotation schemaVersion   xs:string         1.3
source	<xs:element name="Infringement" id="v0.7">   <xs:complexType>     <xs:sequence>       <xs:element name="Case" type="Case"/>       <xs:element name="Complainant" type="Contact"/>       <xs:element name="Service_Provider" type="Contact"/>       <xs:element name="Source">         <xs:complexType>           <xs:all>             <xs:element name="TimeStamp" type="xs:dateTime"/>             <xs:element name="IP_Address" type="type_IPAddress"/>             <xs:element name="Port" type="type_Port" minOccurs="0"/>             <xs:element name="Protocol" minOccurs="0">               <xs:simpleType>                 <xs:restriction base="xs:int">                   <xs:minInclusive value="0"/>                   <xs:maxInclusive value="254"/>                 </xs:restriction>               </xs:simpleType>             </xs:element>             <xs:element name="DNS_Name" minOccurs="0">               <xs:simpleType>                 <xs:restriction base="xs:string">                   <xs:whiteSpace value="collapse"/>                 </xs:restriction>               </xs:simpleType>             </xs:element>             <xs:element name="MAC_Address" type="xs:string" minOccurs="0"/>             <xs:element name="IP_Block" type="xs:string" minOccurs="0"/>             <xs:element name="Type" type="xs:string" minOccurs="0"/>             <xs:element name="SubType" minOccurs="0">               <xs:complexType>                 <xs:simpleContent>                   <xs:extension base="xs:string">                     <xs:attribute name="BaseType" use="required">                       <xs:simpleType>                         <xs:restriction base="xs:string">                           <xs:enumeration value="P2P"/>                           <xs:enumeration value="SERVER"/>                           <xs:enumeration value="LINK"/>                           <xs:enumeration value="OTHER"/>                         </xs:restriction>                       </xs:simpleType>                     </xs:attribute>                     <xs:attribute name="Protocol">                       <xs:simpleType>                         <xs:restriction base="xs:string">                           <xs:enumeration value="BITTORRENT"/>                           <xs:enumeration value="ED2K"/>                           <xs:enumeration value="GNUTELLA"/>                           <xs:enumeration value="GNUTELLA2"/>                           <xs:enumeration value="ARES"/>                           <xs:enumeration value="WINNY"/>                           <xs:enumeration value="FASTTRACK"/>                           <xs:enumeration value="KAD"/>                           <xs:enumeration value="FTP"/>                           <xs:enumeration value="HTTP"/>                           <xs:enumeration value="IRC"/>                           <xs:enumeration value="OTHER"/>                         </xs:restriction>                       </xs:simpleType>                     </xs:attribute>                     <xs:attribute name="Application" type="xs:string"/>                   </xs:extension>                 </xs:simpleContent>               </xs:complexType>             </xs:element>             <xs:element name="URL_Base" type="xs:anyURI" minOccurs="0"/>             <xs:element name="UserName" type="xs:string" minOccurs="0"/>             <xs:element name="Login" minOccurs="0">               <xs:complexType>                 <xs:attribute name="Username" type="xs:string" use="required"/>                 <xs:attribute name="Password" type="xs:string" use="required"/>               </xs:complexType>             </xs:element>             <xs:element name="Number_Files" minOccurs="0">               <xs:simpleType>                 <xs:restriction base="xs:int">                   <xs:minInclusive value="0"/>                 </xs:restriction>               </xs:simpleType>             </xs:element>             <xs:element name="Deja_Vu" minOccurs="0">               <xs:simpleType>                 <xs:restriction base="xs:string">                   <xs:enumeration value="Yes"/>                   <xs:enumeration value="No"/>                 </xs:restriction>               </xs:simpleType>             </xs:element>             <xs:element name="IsSource" type="xs:boolean" minOccurs="0"/>           </xs:all>         </xs:complexType>       </xs:element>       <xs:element name="Content">         <xs:complexType>           <xs:sequence>             <xs:element name="Item" maxOccurs="unbounded">               <xs:complexType>                 <xs:sequence>                   <xs:element name="TimeStamp" type="xs:dateTime"/>                   <xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>                   <xs:element name="Title" minOccurs="0" maxOccurs="unbounded">                     <xs:complexType>                       <xs:simpleContent>                         <xs:extension base="xs:string">                           <xs:attribute name="language" type="xs:language"/>                         </xs:extension>                       </xs:simpleContent>                     </xs:complexType>                   </xs:element>                   <xs:element name="Artist" type="xs:string" minOccurs="0"/>                   <xs:element name="FileName">                     <xs:simpleType>                       <xs:restriction base="xs:string"/>                     </xs:simpleType>                   </xs:element>                   <xs:element name="FileSize" type="xs:nonNegativeInteger" minOccurs="0"/>                   <xs:element name="URL" type="xs:anyURI" minOccurs="0"/>                   <xs:element name="Type" type="xs:string" minOccurs="0"/>                   <xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>                   <xs:element name="Hash" type="type_Hash" minOccurs="0"/>                   <xs:element name="UseNetHeader" type="xs:string" minOccurs="0"/>                 </xs:sequence>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="History" minOccurs="0">         <xs:complexType>           <xs:sequence>             <xs:element name="Notice" minOccurs="0" maxOccurs="unbounded">               <xs:complexType>                 <xs:simpleContent>                   <xs:extension base="xs:string">                     <xs:attribute name="ID" type="xs:anySimpleType" use="optional"/>                     <xs:attribute name="TimeStamp" type="xs:anySimpleType" use="optional"/>                   </xs:extension>                 </xs:simpleContent>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>       <xs:element name="Notes" type="xs:string" minOccurs="0"/>       <xs:element name="Type" type="type_infringement_type" minOccurs="0"/>       <xs:element name="Detection" type="type_Detection" minOccurs="0"/>       <xs:element name="Verification" type="type_Verification" minOccurs="0"/>       <xs:element name="InternalTracking" type="type_InternalTracking" minOccurs="0" maxOccurs="unbounded"/>       <xs:element name="TextNotice" type="xs:string" minOccurs="0"/>       <xs:element name="VerifiedData" type="xs:base64Binary" minOccurs="0"/>       <xs:element name="Declarations" type="type_Declaration" minOccurs="0" maxOccurs="unbounded"/>       <xs:element name="CopyrightHolder" type="Contact" minOccurs="0"/>       <xs:element name="ComplainantRelationship" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:simpleContent>             <xs:extension base="xs:string">               <xs:attribute name="language" type="xs:language"/>             </xs:extension>           </xs:simpleContent>         </xs:complexType>       </xs:element>     </xs:sequence>     <xs:attribute ref="schemaVersion" fixed="1.3"/>   </xs:complexType> </xs:element>

element Infringement/Case

diagram
namespace	http://www.acns.net/ACNS
type	Case
properties	content  complex
children	ID Ref_URL Status Severity
source	<xs:element name="Case" type="Case"/>

element Infringement/Complainant

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="Complainant" type="Contact"/>

element Infringement/Service_Provider

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="Service_Provider" type="Contact"/>

element Infringement/Source

diagram
namespace	http://www.acns.net/ACNS
properties	content  complex
children	TimeStamp IP_Address Port Protocol DNS_Name MAC_Address IP_Block Type SubType URL_Base UserName Login Number_Files Deja_Vu IsSource
source	<xs:element name="Source">   <xs:complexType>     <xs:all>       <xs:element name="TimeStamp" type="xs:dateTime"/>       <xs:element name="IP_Address" type="type_IPAddress"/>       <xs:element name="Port" type="type_Port" minOccurs="0"/>       <xs:element name="Protocol" minOccurs="0">         <xs:simpleType>           <xs:restriction base="xs:int">             <xs:minInclusive value="0"/>             <xs:maxInclusive value="254"/>           </xs:restriction>         </xs:simpleType>       </xs:element>       <xs:element name="DNS_Name" minOccurs="0">         <xs:simpleType>           <xs:restriction base="xs:string">             <xs:whiteSpace value="collapse"/>           </xs:restriction>         </xs:simpleType>       </xs:element>       <xs:element name="MAC_Address" type="xs:string" minOccurs="0"/>       <xs:element name="IP_Block" type="xs:string" minOccurs="0"/>       <xs:element name="Type" type="xs:string" minOccurs="0"/>       <xs:element name="SubType" minOccurs="0">         <xs:complexType>           <xs:simpleContent>             <xs:extension base="xs:string">               <xs:attribute name="BaseType" use="required">                 <xs:simpleType>                   <xs:restriction base="xs:string">                     <xs:enumeration value="P2P"/>                     <xs:enumeration value="SERVER"/>                     <xs:enumeration value="LINK"/>                     <xs:enumeration value="OTHER"/>                   </xs:restriction>                 </xs:simpleType>               </xs:attribute>               <xs:attribute name="Protocol">                 <xs:simpleType>                   <xs:restriction base="xs:string">                     <xs:enumeration value="BITTORRENT"/>                     <xs:enumeration value="ED2K"/>                     <xs:enumeration value="GNUTELLA"/>                     <xs:enumeration value="GNUTELLA2"/>                     <xs:enumeration value="ARES"/>                     <xs:enumeration value="WINNY"/>                     <xs:enumeration value="FASTTRACK"/>                     <xs:enumeration value="KAD"/>                     <xs:enumeration value="FTP"/>                     <xs:enumeration value="HTTP"/>                     <xs:enumeration value="IRC"/>                     <xs:enumeration value="OTHER"/>                   </xs:restriction>                 </xs:simpleType>               </xs:attribute>               <xs:attribute name="Application" type="xs:string"/>             </xs:extension>           </xs:simpleContent>         </xs:complexType>       </xs:element>       <xs:element name="URL_Base" type="xs:anyURI" minOccurs="0"/>       <xs:element name="UserName" type="xs:string" minOccurs="0"/>       <xs:element name="Login" minOccurs="0">         <xs:complexType>           <xs:attribute name="Username" type="xs:string" use="required"/>           <xs:attribute name="Password" type="xs:string" use="required"/>         </xs:complexType>       </xs:element>       <xs:element name="Number_Files" minOccurs="0">         <xs:simpleType>           <xs:restriction base="xs:int">             <xs:minInclusive value="0"/>           </xs:restriction>         </xs:simpleType>       </xs:element>       <xs:element name="Deja_Vu" minOccurs="0">         <xs:simpleType>           <xs:restriction base="xs:string">             <xs:enumeration value="Yes"/>             <xs:enumeration value="No"/>           </xs:restriction>         </xs:simpleType>       </xs:element>       <xs:element name="IsSource" type="xs:boolean" minOccurs="0"/>     </xs:all>   </xs:complexType> </xs:element>

element Infringement/Source/TimeStamp

diagram
namespace	http://www.acns.net/ACNS
type	xs:dateTime
properties	content  simple
source	<xs:element name="TimeStamp" type="xs:dateTime"/>

element Infringement/Source/IP_Address

diagram
namespace	http://www.acns.net/ACNS
type	type_IPAddress
properties	content  simple
source	<xs:element name="IP_Address" type="type_IPAddress"/>

element Infringement/Source/Port

diagram
namespace	http://www.acns.net/ACNS
type	type_Port
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  65535
source	<xs:element name="Port" type="type_Port" minOccurs="0"/>

element Infringement/Source/Protocol

diagram
namespace	http://www.acns.net/ACNS
type	restriction of xs:int
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  254
source	<xs:element name="Protocol" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="254"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Infringement/Source/DNS_Name

diagram
namespace	http://www.acns.net/ACNS
type	restriction of xs:string
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation whiteSpace  collapse
source	<xs:element name="DNS_Name" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:whiteSpace value="collapse"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Infringement/Source/MAC_Address

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="MAC_Address" type="xs:string" minOccurs="0"/>

element Infringement/Source/IP_Block

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="IP_Block" type="xs:string" minOccurs="0"/>

element Infringement/Source/Type

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Type" type="xs:string" minOccurs="0"/>

element Infringement/Source/SubType

diagram
namespace	http://www.acns.net/ACNS
type	extension of xs:string
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation BaseType   derived by: xs:string   required         Protocol   derived by: xs:string            Application   xs:string
source	<xs:element name="SubType" minOccurs="0">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:string">         <xs:attribute name="BaseType" use="required">           <xs:simpleType>             <xs:restriction base="xs:string">               <xs:enumeration value="P2P"/>               <xs:enumeration value="SERVER"/>               <xs:enumeration value="LINK"/>               <xs:enumeration value="OTHER"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="Protocol">           <xs:simpleType>             <xs:restriction base="xs:string">               <xs:enumeration value="BITTORRENT"/>               <xs:enumeration value="ED2K"/>               <xs:enumeration value="GNUTELLA"/>               <xs:enumeration value="GNUTELLA2"/>               <xs:enumeration value="ARES"/>               <xs:enumeration value="WINNY"/>               <xs:enumeration value="FASTTRACK"/>               <xs:enumeration value="KAD"/>               <xs:enumeration value="FTP"/>               <xs:enumeration value="HTTP"/>               <xs:enumeration value="IRC"/>               <xs:enumeration value="OTHER"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="Application" type="xs:string"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute Infringement/Source/SubType/@BaseType

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation enumeration  P2P enumeration  SERVER enumeration  LINK enumeration  OTHER
source	<xs:attribute name="BaseType" use="required">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="P2P"/>       <xs:enumeration value="SERVER"/>       <xs:enumeration value="LINK"/>       <xs:enumeration value="OTHER"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute Infringement/Source/SubType/@Protocol

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  BITTORRENT enumeration  ED2K enumeration  GNUTELLA enumeration  GNUTELLA2 enumeration  ARES enumeration  WINNY enumeration  FASTTRACK enumeration  KAD enumeration  FTP enumeration  HTTP enumeration  IRC enumeration  OTHER
source	<xs:attribute name="Protocol">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="BITTORRENT"/>       <xs:enumeration value="ED2K"/>       <xs:enumeration value="GNUTELLA"/>       <xs:enumeration value="GNUTELLA2"/>       <xs:enumeration value="ARES"/>       <xs:enumeration value="WINNY"/>       <xs:enumeration value="FASTTRACK"/>       <xs:enumeration value="KAD"/>       <xs:enumeration value="FTP"/>       <xs:enumeration value="HTTP"/>       <xs:enumeration value="IRC"/>       <xs:enumeration value="OTHER"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute Infringement/Source/SubType/@Application

type	xs:string
source	<xs:attribute name="Application" type="xs:string"/>

element Infringement/Source/URL_Base

diagram
namespace	http://www.acns.net/ACNS
type	xs:anyURI
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="URL_Base" type="xs:anyURI" minOccurs="0"/>

element Infringement/Source/UserName

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="UserName" type="xs:string" minOccurs="0"/>

element Infringement/Source/Login

diagram
namespace	http://www.acns.net/ACNS
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Username   xs:string   required         Password   xs:string   required
source	<xs:element name="Login" minOccurs="0">   <xs:complexType>     <xs:attribute name="Username" type="xs:string" use="required"/>     <xs:attribute name="Password" type="xs:string" use="required"/>   </xs:complexType> </xs:element>

attribute Infringement/Source/Login/@Username

type	xs:string
properties	use  required
source	<xs:attribute name="Username" type="xs:string" use="required"/>

attribute Infringement/Source/Login/@Password

type	xs:string
properties	use  required
source	<xs:attribute name="Password" type="xs:string" use="required"/>

element Infringement/Source/Number_Files

diagram
namespace	http://www.acns.net/ACNS
type	restriction of xs:int
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minInclusive  0
source	<xs:element name="Number_Files" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Infringement/Source/Deja_Vu

diagram
namespace	http://www.acns.net/ACNS
type	restriction of xs:string
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Yes enumeration  No
source	<xs:element name="Deja_Vu" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="Yes"/>       <xs:enumeration value="No"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element Infringement/Source/IsSource

diagram
namespace	http://www.acns.net/ACNS
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="IsSource" type="xs:boolean" minOccurs="0"/>

element Infringement/Content

diagram
namespace	http://www.acns.net/ACNS
properties	content  complex
children	Item
source	<xs:element name="Content">   <xs:complexType>     <xs:sequence>       <xs:element name="Item" maxOccurs="unbounded">         <xs:complexType>           <xs:sequence>             <xs:element name="TimeStamp" type="xs:dateTime"/>             <xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>             <xs:element name="Title" minOccurs="0" maxOccurs="unbounded">               <xs:complexType>                 <xs:simpleContent>                   <xs:extension base="xs:string">                     <xs:attribute name="language" type="xs:language"/>                   </xs:extension>                 </xs:simpleContent>               </xs:complexType>             </xs:element>             <xs:element name="Artist" type="xs:string" minOccurs="0"/>             <xs:element name="FileName">               <xs:simpleType>                 <xs:restriction base="xs:string"/>               </xs:simpleType>             </xs:element>             <xs:element name="FileSize" type="xs:nonNegativeInteger" minOccurs="0"/>             <xs:element name="URL" type="xs:anyURI" minOccurs="0"/>             <xs:element name="Type" type="xs:string" minOccurs="0"/>             <xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>             <xs:element name="Hash" type="type_Hash" minOccurs="0"/>             <xs:element name="UseNetHeader" type="xs:string" minOccurs="0"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element Infringement/Content/Item

diagram
namespace	http://www.acns.net/ACNS
properties	minOcc  1 maxOcc  unbounded content  complex
children	TimeStamp AlsoSeen Title Artist FileName FileSize URL Type ExplicitType Hash UseNetHeader
source	<xs:element name="Item" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="TimeStamp" type="xs:dateTime"/>       <xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>       <xs:element name="Title" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:simpleContent>             <xs:extension base="xs:string">               <xs:attribute name="language" type="xs:language"/>             </xs:extension>           </xs:simpleContent>         </xs:complexType>       </xs:element>       <xs:element name="Artist" type="xs:string" minOccurs="0"/>       <xs:element name="FileName">         <xs:simpleType>           <xs:restriction base="xs:string"/>         </xs:simpleType>       </xs:element>       <xs:element name="FileSize" type="xs:nonNegativeInteger" minOccurs="0"/>       <xs:element name="URL" type="xs:anyURI" minOccurs="0"/>       <xs:element name="Type" type="xs:string" minOccurs="0"/>       <xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>       <xs:element name="Hash" type="type_Hash" minOccurs="0"/>       <xs:element name="UseNetHeader" type="xs:string" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element Infringement/Content/Item/TimeStamp

diagram
namespace	http://www.acns.net/ACNS
type	xs:dateTime
properties	content  simple
source	<xs:element name="TimeStamp" type="xs:dateTime"/>

element Infringement/Content/Item/AlsoSeen

diagram
namespace	http://www.acns.net/ACNS
type	type_AlsoSeen
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Start   xs:dateTime   required         End   xs:dateTime   required
source	<xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>

element Infringement/Content/Item/Title

diagram
namespace	http://www.acns.net/ACNS
type	extension of xs:string
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation language   xs:language
source	<xs:element name="Title" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:string">         <xs:attribute name="language" type="xs:language"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute Infringement/Content/Item/Title/@language

type	xs:language
source	<xs:attribute name="language" type="xs:language"/>

element Infringement/Content/Item/Artist

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Artist" type="xs:string" minOccurs="0"/>

element Infringement/Content/Item/FileName

diagram
namespace	http://www.acns.net/ACNS
type	restriction of xs:string
properties	content  simple
source	<xs:element name="FileName">   <xs:simpleType>     <xs:restriction base="xs:string"/>   </xs:simpleType> </xs:element>

element Infringement/Content/Item/FileSize

diagram
namespace	http://www.acns.net/ACNS
type	xs:nonNegativeInteger
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="FileSize" type="xs:nonNegativeInteger" minOccurs="0"/>

element Infringement/Content/Item/URL

diagram
namespace	http://www.acns.net/ACNS
type	xs:anyURI
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="URL" type="xs:anyURI" minOccurs="0"/>

element Infringement/Content/Item/Type

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Type" type="xs:string" minOccurs="0"/>

element Infringement/Content/Item/ExplicitType

diagram
namespace	http://www.acns.net/ACNS
type	type_ExplicitType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Movie enumeration  Game enumeration  Software enumeration  Music enumeration  Document enumeration  Image
source	<xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>

element Infringement/Content/Item/Hash

diagram
namespace	http://www.acns.net/ACNS
type	type_Hash
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type   xs:string   required
source	<xs:element name="Hash" type="type_Hash" minOccurs="0"/>

element Infringement/Content/Item/UseNetHeader

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="UseNetHeader" type="xs:string" minOccurs="0"/>

element Infringement/History

diagram
namespace	http://www.acns.net/ACNS
properties	minOcc  0 maxOcc  1 content  complex
children	Notice
source	<xs:element name="History" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="Notice" minOccurs="0" maxOccurs="unbounded">         <xs:complexType>           <xs:simpleContent>             <xs:extension base="xs:string">               <xs:attribute name="ID" type="xs:anySimpleType" use="optional"/>               <xs:attribute name="TimeStamp" type="xs:anySimpleType" use="optional"/>             </xs:extension>           </xs:simpleContent>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element Infringement/History/Notice

diagram
namespace	http://www.acns.net/ACNS
type	extension of xs:string
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation ID   xs:anySimpleType   optional         TimeStamp   xs:anySimpleType   optional
source	<xs:element name="Notice" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:string">         <xs:attribute name="ID" type="xs:anySimpleType" use="optional"/>         <xs:attribute name="TimeStamp" type="xs:anySimpleType" use="optional"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute Infringement/History/Notice/@ID

type	xs:anySimpleType
properties	use  optional
source	<xs:attribute name="ID" type="xs:anySimpleType" use="optional"/>

attribute Infringement/History/Notice/@TimeStamp

type	xs:anySimpleType
properties	use  optional
source	<xs:attribute name="TimeStamp" type="xs:anySimpleType" use="optional"/>

element Infringement/Notes

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Notes" type="xs:string" minOccurs="0"/>

element Infringement/Type

diagram
namespace	http://www.acns.net/ACNS
type	type_infringement_type
properties	minOcc  0 maxOcc  1 content  complex
facets	Kind  Value  Annotation enumeration  OTHER enumeration  INFRINGEMENT enumeration  PRELIT enumeration  INFO enumeration  DMCA
attributes	Name   Type   Use   Default   Fixed   Annotation Retraction   xs:boolean            Comments   xs:string
source	<xs:element name="Type" type="type_infringement_type" minOccurs="0"/>

element Infringement/Detection

diagram
namespace	http://www.acns.net/ACNS
type	type_Detection
properties	minOcc  0 maxOcc  1 content  complex
children	Asset ContentMatched HashMatched MetadataMatched WatermarkMatched VerificationID VerifiedDataLoc
source	<xs:element name="Detection" type="type_Detection" minOccurs="0"/>

element Infringement/Verification

diagram
namespace	http://www.acns.net/ACNS
type	type_Verification
properties	minOcc  0 maxOcc  1 content  complex
children	VerificationLevel Notes
source	<xs:element name="Verification" type="type_Verification" minOccurs="0"/>

element Infringement/InternalTracking

diagram
namespace	http://www.acns.net/ACNS
type	type_InternalTracking
properties	minOcc  0 maxOcc  unbounded content  complex
children	PrimarySubject Disposition Mapping
attributes	Name   Type   Use   Default   Fixed   Annotation CurrentSequence   xs:int            InternalCaseNumber   xs:string   required
source	<xs:element name="InternalTracking" type="type_InternalTracking" minOccurs="0" maxOccurs="unbounded"/>

element Infringement/TextNotice

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="TextNotice" type="xs:string" minOccurs="0"/>

element Infringement/VerifiedData

diagram
namespace	http://www.acns.net/ACNS
type	xs:base64Binary
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="VerifiedData" type="xs:base64Binary" minOccurs="0"/>

element Infringement/Declarations

diagram
namespace	http://www.acns.net/ACNS
type	type_Declaration
properties	minOcc  0 maxOcc  unbounded content  complex
children	Type Body LinkToBody
attributes	Name   Type   Use   Default   Fixed   Annotation language   xs:language
source	<xs:element name="Declarations" type="type_Declaration" minOccurs="0" maxOccurs="unbounded"/>

element Infringement/CopyrightHolder

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	minOcc  0 maxOcc  1 content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="CopyrightHolder" type="Contact" minOccurs="0"/>

element Infringement/ComplainantRelationship

diagram
namespace	http://www.acns.net/ACNS
type	extension of xs:string
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation language   xs:language
source	<xs:element name="ComplainantRelationship" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:string">         <xs:attribute name="language" type="xs:language"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute Infringement/ComplainantRelationship/@language

type	xs:language
source	<xs:attribute name="language" type="xs:language"/>

element MessageEnvelope

diagram
namespace	http://www.acns.net/ACNS
properties	content  complex
children	Message ds:Signature
attributes	Name   Type   Use   Default   Fixed   Annotation ReplyEmail   xs:string            ReplyURI   xs:string   optional         id   xs:ID
source	<xs:element name="MessageEnvelope">   <xs:complexType>     <xs:sequence>       <xs:element name="Message" type="type_Message" maxOccurs="unbounded"/>       <xs:element ref="ds:Signature" minOccurs="0"/>     </xs:sequence>     <xs:attribute name="ReplyEmail" type="xs:string"/>     <xs:attribute name="ReplyURI" type="xs:string" use="optional"/>     <xs:attribute name="id" type="xs:ID"/>   </xs:complexType> </xs:element>

attribute MessageEnvelope/@ReplyEmail

type	xs:string
source	<xs:attribute name="ReplyEmail" type="xs:string"/>

attribute MessageEnvelope/@ReplyURI

type	xs:string
properties	use  optional
source	<xs:attribute name="ReplyURI" type="xs:string" use="optional"/>

attribute MessageEnvelope/@id

type	xs:ID
source	<xs:attribute name="id" type="xs:ID"/>

element MessageEnvelope/Message

diagram
namespace	http://www.acns.net/ACNS
type	type_Message
properties	minOcc  1 maxOcc  unbounded content  complex
children	Infringement NoticeAck NoticeStatus StatusRequest
attributes	Name   Type   Use   Default   Fixed   Annotation Type   type_MessageName   required         ID   xs:string            Created   xs:dateTime
source	<xs:element name="Message" type="type_Message" maxOccurs="unbounded"/>

element NoticeAck

diagram
namespace	http://www.acns.net/ACNS
type	type_NoticeAck
properties	content  complex
children	Case Complainant Service_Provider Addl_Contact Notes
used by	complexTypes  type_Message type_NoticeAckList
attributes	Name   Type   Use   Default   Fixed   Annotation schemaVersion   xs:string         1.3   Accepted   xs:boolean            RejectReason   derived by: xs:string   optional         TimeStamp   xs:dateTime            Sequence   xs:int   optional
source	<xs:element name="NoticeAck" type="type_NoticeAck"/>

element NoticeStatus

diagram
namespace	http://www.acns.net/ACNS
properties	content  complex
children	CaseStatus StartDateTime EndDateTime
used by	complexType  type_Message
attributes	Name   Type   Use   Default   Fixed   Annotation schemaVersion   xs:string         1.3
source	<xs:element name="NoticeStatus">   <xs:complexType>     <xs:sequence>       <xs:element name="CaseStatus" type="type_NoticeStatus" maxOccurs="unbounded"/>       <xs:sequence minOccurs="0">         <xs:element name="StartDateTime" type="xs:dateTime"/>         <xs:element name="EndDateTime" type="xs:dateTime"/>       </xs:sequence>     </xs:sequence>     <xs:attribute ref="schemaVersion"/>   </xs:complexType> </xs:element>

element NoticeStatus/CaseStatus

diagram
namespace	http://www.acns.net/ACNS
type	type_NoticeStatus
properties	minOcc  1 maxOcc  unbounded content  complex
children	Disposition GRStatus UsenetStatus Source HumanInt CounterNotice Notes
attributes	Name   Type   Use   Default   Fixed   Annotation CaseID   xs:string   required         TimeStamp   xs:dateTime   required         ReqTime   xs:dateTime
source	<xs:element name="CaseStatus" type="type_NoticeStatus" maxOccurs="unbounded"/>

element NoticeStatus/StartDateTime

diagram
namespace	http://www.acns.net/ACNS
type	xs:dateTime
properties	content  simple
source	<xs:element name="StartDateTime" type="xs:dateTime"/>

element NoticeStatus/EndDateTime

diagram
namespace	http://www.acns.net/ACNS
type	xs:dateTime
properties	content  simple
source	<xs:element name="EndDateTime" type="xs:dateTime"/>

element StatusRequest

diagram
namespace	http://www.acns.net/ACNS
type	type_StatusRequest
properties	content  complex
children	Case StartDateTime EndDateTime Complainant ServiceProvider
used by	complexType  type_Message
attributes	Name   Type   Use   Default   Fixed   Annotation schemaVersion   xs:string         1.3   TimeStamp   xs:dateTime
source	<xs:element name="StatusRequest" type="type_StatusRequest"/>

element StatusUpdate

diagram
namespace	http://www.acns.net/ACNS
type	type_StatusUpdate
properties	content  complex
children	Case Complainant Service_Provider HumanInt Disposition DispositionUsenet CounterNotice NoticeAckList Content Notes
attributes	Name   Type   Use   Default   Fixed   Annotation TimeStamp   xs:dateTime   required         ReqTime   xs:dateTime            schemaVersion   xs:string         1.3
source	<xs:element name="StatusUpdate" type="type_StatusUpdate"/>

element Verification

diagram
namespace	http://www.acns.net/ACNS
type	type_Verification
properties	content  complex
children	VerificationLevel Notes
source	<xs:element name="Verification" type="type_Verification"/>

complexType Case

diagram
namespace	http://www.acns.net/ACNS
children	ID Ref_URL Status Severity
used by	elements  Infringement/Case type_NoticeAck/Case type_StatusRequest/Case type_StatusUpdate/Case
source	<xs:complexType name="Case">   <xs:all>     <xs:element name="ID" type="xs:string"/>     <xs:element name="Ref_URL" type="xs:anyURI" minOccurs="0"/>     <xs:element name="Status" type="xs:string" minOccurs="0"/>     <xs:element name="Severity" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="Normal"/>           <xs:enumeration value="Low"/>           <xs:enumeration value="High"/>         </xs:restriction>       </xs:simpleType>     </xs:element>   </xs:all> </xs:complexType>

element Case/ID

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	content  simple
source	<xs:element name="ID" type="xs:string"/>

element Case/Ref_URL

diagram
namespace	http://www.acns.net/ACNS
type	xs:anyURI
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Ref_URL" type="xs:anyURI" minOccurs="0"/>

element Case/Status

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Status" type="xs:string" minOccurs="0"/>

element Case/Severity

diagram
namespace	http://www.acns.net/ACNS
type	restriction of xs:string
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Normal enumeration  Low enumeration  High
source	<xs:element name="Severity" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="Normal"/>       <xs:enumeration value="Low"/>       <xs:enumeration value="High"/>     </xs:restriction>   </xs:simpleType> </xs:element>

complexType Contact

diagram
namespace	http://www.acns.net/ACNS
children	Entity Contact Address Phone Email ContactURL
used by	elements  type_NoticeAck/Addl_Contact type_CounterNotice/Addl_Contact Infringement/Complainant type_NoticeAck/Complainant type_StatusRequest/Complainant type_StatusUpdate/Complainant type_StatusSource/Complainant type_Disposition/Contact Infringement/CopyrightHolder type_StatusUpdate/HumanInt type_NoticeStatus/HumanInt Infringement/Service_Provider type_NoticeAck/Service_Provider type_CounterNotice/Service_Provider type_StatusUpdate/Service_Provider type_StatusSource/Service_Provider type_StatusRequest/ServiceProvider type_Subject/SubjectContact type_CounterNotice/Subscriber
source	<xs:complexType name="Contact">   <xs:all>     <xs:element name="Entity" type="xs:string"/>     <xs:element name="Contact" type="xs:string" minOccurs="0"/>     <xs:element name="Address" type="xs:string" minOccurs="0"/>     <xs:element name="Phone" type="xs:string" minOccurs="0"/>     <xs:element name="Email" type="xs:string"/>     <xs:element name="ContactURL" type="xs:anyURI" minOccurs="0"/>   </xs:all> </xs:complexType>

element Contact/Entity

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	content  simple
source	<xs:element name="Entity" type="xs:string"/>

element Contact/Contact

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Contact" type="xs:string" minOccurs="0"/>

element Contact/Address

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Address" type="xs:string" minOccurs="0"/>

element Contact/Phone

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Phone" type="xs:string" minOccurs="0"/>

element Contact/Email

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	content  simple
source	<xs:element name="Email" type="xs:string"/>

element Contact/ContactURL

diagram
namespace	http://www.acns.net/ACNS
type	xs:anyURI
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ContactURL" type="xs:anyURI" minOccurs="0"/>

complexType type_AlsoSeen

diagram
namespace	http://www.acns.net/ACNS
type	extension of xs:string
properties	base  xs:string
used by	elements  Infringement/Content/Item/AlsoSeen type_Item/AlsoSeen
attributes	Name   Type   Use   Default   Fixed   Annotation Start   xs:dateTime   required         End   xs:dateTime   required
source	<xs:complexType name="type_AlsoSeen">   <xs:simpleContent>     <xs:extension base="xs:string">       <xs:attribute name="Start" type="xs:dateTime" use="required"/>       <xs:attribute name="End" type="xs:dateTime" use="required"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute type_AlsoSeen/@Start

type	xs:dateTime
properties	use  required
source	<xs:attribute name="Start" type="xs:dateTime" use="required"/>

attribute type_AlsoSeen/@End

type	xs:dateTime
properties	use  required
source	<xs:attribute name="End" type="xs:dateTime" use="required"/>

complexType type_Asset

diagram
namespace	http://www.acns.net/ACNS
children	OriginalAssetName OriginalAssetID
used by	element  type_Detection/Asset
source	<xs:complexType name="type_Asset">   <xs:sequence>     <xs:element name="OriginalAssetName" type="xs:string"/>     <xs:element name="OriginalAssetID" minOccurs="0">       <xs:complexType>         <xs:simpleContent>           <xs:extension base="xs:string">             <xs:attribute name="type" type="xs:string" use="required"/>           </xs:extension>         </xs:simpleContent>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element type_Asset/OriginalAssetName

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	content  simple
source	<xs:element name="OriginalAssetName" type="xs:string"/>

element type_Asset/OriginalAssetID

diagram
namespace	http://www.acns.net/ACNS
type	extension of xs:string
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation type   xs:string   required
source	<xs:element name="OriginalAssetID" minOccurs="0">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:string">         <xs:attribute name="type" type="xs:string" use="required"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute type_Asset/OriginalAssetID/@type

type	xs:string
properties	use  required
source	<xs:attribute name="type" type="xs:string" use="required"/>

complexType type_BinaryImage

diagram
namespace	http://www.acns.net/ACNS
type	extension of xmime:base64Binary
properties	base  xmime:base64Binary
used by	element  type_CounternoticeContent/NoticeImage
attributes	Name   Type   Use   Default   Fixed   Annotation xmime:contentType   derived by: xs:string
source	<xs:complexType name="type_BinaryImage">   <xs:complexContent>     <xs:extension base="xmime:base64Binary"/>   </xs:complexContent> </xs:complexType>

complexType type_Content

diagram
namespace	http://www.acns.net/ACNS
children	Item
used by	elements  type_StatusUpdate/Content type_StatusSource/Content
source	<xs:complexType name="type_Content">   <xs:sequence>     <xs:element name="Item" type="type_Item" maxOccurs="unbounded"/>   </xs:sequence> </xs:complexType>

element type_Content/Item

diagram
namespace	http://www.acns.net/ACNS
type	type_Item
properties	minOcc  1 maxOcc  unbounded content  complex
children	TimeStamp AlsoSeen Title Artist FileName FileSize URL HostURI Type ExplicitType Hash
source	<xs:element name="Item" type="type_Item" maxOccurs="unbounded"/>

complexType type_ContentMatched

diagram
namespace	http://www.acns.net/ACNS
used by	element  type_Detection/ContentMatched
attributes	Name   Type   Use   Default   Fixed   Annotation Audio   xs:boolean            Video   xs:boolean            Text   xs:boolean            Image   xs:boolean            MatchThreshold   derived by: xs:int            Fingerprint   xs:boolean            Human   xs:boolean
source	<xs:complexType name="type_ContentMatched">   <xs:attribute name="Audio" type="xs:boolean"/>   <xs:attribute name="Video" type="xs:boolean"/>   <xs:attribute name="Text" type="xs:boolean"/>   <xs:attribute name="Image" type="xs:boolean"/>   <xs:attribute name="MatchThreshold">     <xs:simpleType>       <xs:restriction base="xs:int">         <xs:minInclusive value="0"/>         <xs:maxInclusive value="100"/>       </xs:restriction>     </xs:simpleType>   </xs:attribute>   <xs:attribute name="Fingerprint" type="xs:boolean"/>   <xs:attribute name="Human" type="xs:boolean"/> </xs:complexType>

attribute type_ContentMatched/@Audio

type	xs:boolean
source	<xs:attribute name="Audio" type="xs:boolean"/>

attribute type_ContentMatched/@Video

type	xs:boolean
source	<xs:attribute name="Video" type="xs:boolean"/>

attribute type_ContentMatched/@Text

type	xs:boolean
source	<xs:attribute name="Text" type="xs:boolean"/>

attribute type_ContentMatched/@Image

type	xs:boolean
source	<xs:attribute name="Image" type="xs:boolean"/>

attribute type_ContentMatched/@MatchThreshold

type	restriction of xs:int
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  100
source	<xs:attribute name="MatchThreshold">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="100"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute type_ContentMatched/@Fingerprint

type	xs:boolean
source	<xs:attribute name="Fingerprint" type="xs:boolean"/>

attribute type_ContentMatched/@Human

type	xs:boolean
source	<xs:attribute name="Human" type="xs:boolean"/>

complexType type_CounterNotice

diagram
namespace	http://www.acns.net/ACNS
children	Service_Provider Addl_Contact Subscriber CounternoticeContent Notes
used by	elements  CounterNotice type_StatusUpdate/CounterNotice type_NoticeStatus/CounterNotice
attributes	Name   Type   Use   Default   Fixed   Annotation TimeStamp   xs:dateTime   required         DMCA   xs:boolean
source	<xs:complexType name="type_CounterNotice">   <xs:sequence>     <xs:element name="Service_Provider" type="Contact"/>     <xs:element name="Addl_Contact" type="Contact" minOccurs="0"/>     <xs:element name="Subscriber" type="Contact"/>     <xs:element name="CounternoticeContent" type="type_CounternoticeContent"/>     <xs:element name="Notes" type="xs:string"/>   </xs:sequence>   <xs:attribute name="TimeStamp" type="xs:dateTime" use="required"/>   <xs:attribute name="DMCA" type="xs:boolean"/> </xs:complexType>

attribute type_CounterNotice/@TimeStamp

type	xs:dateTime
properties	use  required
source	<xs:attribute name="TimeStamp" type="xs:dateTime" use="required"/>

attribute type_CounterNotice/@DMCA

type	xs:boolean
source	<xs:attribute name="DMCA" type="xs:boolean"/>

element type_CounterNotice/Service_Provider

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="Service_Provider" type="Contact"/>

element type_CounterNotice/Addl_Contact

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	minOcc  0 maxOcc  1 content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="Addl_Contact" type="Contact" minOccurs="0"/>

element type_CounterNotice/Subscriber

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="Subscriber" type="Contact"/>

element type_CounterNotice/CounternoticeContent

diagram
namespace	http://www.acns.net/ACNS
type	type_CounternoticeContent
properties	content  complex
children	NoticeText NoticeImage Notes
attributes	Name   Type   Use   Default   Fixed   Annotation RejectReason   derived by: xs:string   optional         OtherReason   xs:string   optional         ProperlySigned   xs:boolean   optional         Consent   xs:boolean   optional         Statement   xs:string   optional
source	<xs:element name="CounternoticeContent" type="type_CounternoticeContent"/>

element type_CounterNotice/Notes

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	content  simple
source	<xs:element name="Notes" type="xs:string"/>

complexType type_CounternoticeContent

diagram
namespace	http://www.acns.net/ACNS
children	NoticeText NoticeImage Notes
used by	element  type_CounterNotice/CounternoticeContent
attributes	Name   Type   Use   Default   Fixed   Annotation RejectReason   derived by: xs:string   optional         OtherReason   xs:string   optional         ProperlySigned   xs:boolean   optional         Consent   xs:boolean   optional         Statement   xs:string   optional
source	<xs:complexType name="type_CounternoticeContent">   <xs:all>     <xs:element name="NoticeText" type="xs:string" minOccurs="0"/>     <xs:element name="NoticeImage" minOccurs="0">       <xs:complexType>         <xs:complexContent>           <xs:extension base="type_BinaryImage"/>         </xs:complexContent>       </xs:complexType>     </xs:element>     <xs:element name="Notes" type="xs:string" minOccurs="0"/>   </xs:all>   <xs:attribute name="RejectReason" use="optional">     <xs:simpleType>       <xs:restriction base="xs:string">         <xs:enumeration value="IOWN"/>         <xs:enumeration value="FAIRUSEFREESPEECH"/>         <xs:enumeration value="MISIDENTIFIED"/>         <xs:enumeration value="OTHER"/>       </xs:restriction>     </xs:simpleType>   </xs:attribute>   <xs:attribute name="OtherReason" type="xs:string" use="optional"/>   <xs:attribute name="ProperlySigned" type="xs:boolean" use="optional"/>   <xs:attribute name="Consent" type="xs:boolean" use="optional"/>   <xs:attribute name="Statement" type="xs:string" use="optional"/> </xs:complexType>

attribute type_CounternoticeContent/@RejectReason

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  IOWN enumeration  FAIRUSEFREESPEECH enumeration  MISIDENTIFIED enumeration  OTHER
source	<xs:attribute name="RejectReason" use="optional">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="IOWN"/>       <xs:enumeration value="FAIRUSEFREESPEECH"/>       <xs:enumeration value="MISIDENTIFIED"/>       <xs:enumeration value="OTHER"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute type_CounternoticeContent/@OtherReason

type	xs:string
properties	use  optional
source	<xs:attribute name="OtherReason" type="xs:string" use="optional"/>

attribute type_CounternoticeContent/@ProperlySigned

type	xs:boolean
properties	use  optional
source	<xs:attribute name="ProperlySigned" type="xs:boolean" use="optional"/>

attribute type_CounternoticeContent/@Consent

type	xs:boolean
properties	use  optional
source	<xs:attribute name="Consent" type="xs:boolean" use="optional"/>

attribute type_CounternoticeContent/@Statement

type	xs:string
properties	use  optional
source	<xs:attribute name="Statement" type="xs:string" use="optional"/>

element type_CounternoticeContent/NoticeText

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="NoticeText" type="xs:string" minOccurs="0"/>

element type_CounternoticeContent/NoticeImage

diagram
namespace	http://www.acns.net/ACNS
type	extension of type_BinaryImage
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation xmime:contentType   derived by: xs:string
source	<xs:element name="NoticeImage" minOccurs="0">   <xs:complexType>     <xs:complexContent>       <xs:extension base="type_BinaryImage"/>     </xs:complexContent>   </xs:complexType> </xs:element>

element type_CounternoticeContent/Notes

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Notes" type="xs:string" minOccurs="0"/>

complexType type_Declaration

diagram
namespace	http://www.acns.net/ACNS
children	Type Body LinkToBody
used by	element  Infringement/Declarations
attributes	Name   Type   Use   Default   Fixed   Annotation language   xs:language
source	<xs:complexType name="type_Declaration">   <xs:sequence>     <xs:element name="Type" type="xs:string" minOccurs="0"/>     <xs:element name="Body" type="xs:string" minOccurs="0"/>     <xs:element name="LinkToBody" type="xs:anyURI" minOccurs="0"/>   </xs:sequence>   <xs:attribute name="language" type="xs:language"/> </xs:complexType>

attribute type_Declaration/@language

type	xs:language
source	<xs:attribute name="language" type="xs:language"/>

element type_Declaration/Type

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Type" type="xs:string" minOccurs="0"/>

element type_Declaration/Body

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Body" type="xs:string" minOccurs="0"/>

element type_Declaration/LinkToBody

diagram
namespace	http://www.acns.net/ACNS
type	xs:anyURI
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="LinkToBody" type="xs:anyURI" minOccurs="0"/>

complexType type_Detection

diagram
namespace	http://www.acns.net/ACNS
children	Asset ContentMatched HashMatched MetadataMatched WatermarkMatched VerificationID VerifiedDataLoc
used by	elements  Infringement/Detection Detection
source	<xs:complexType name="type_Detection">   <xs:sequence>     <xs:element name="Asset" type="type_Asset"/>     <xs:element name="ContentMatched" type="type_ContentMatched" minOccurs="0"/>     <xs:element name="HashMatched" type="xs:boolean" minOccurs="0"/>     <xs:element name="MetadataMatched" type="xs:boolean" minOccurs="0"/>     <xs:element name="WatermarkMatched" type="type_WatermarkMatched" minOccurs="0"/>     <xs:element name="VerificationID" type="xs:string"/>     <xs:element name="VerifiedDataLoc" type="xs:anyURI" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element type_Detection/Asset

diagram
namespace	http://www.acns.net/ACNS
type	type_Asset
properties	content  complex
children	OriginalAssetName OriginalAssetID
source	<xs:element name="Asset" type="type_Asset"/>

element type_Detection/ContentMatched

diagram
namespace	http://www.acns.net/ACNS
type	type_ContentMatched
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Audio   xs:boolean            Video   xs:boolean            Text   xs:boolean            Image   xs:boolean            MatchThreshold   derived by: xs:int            Fingerprint   xs:boolean            Human   xs:boolean
source	<xs:element name="ContentMatched" type="type_ContentMatched" minOccurs="0"/>

element type_Detection/HashMatched

diagram
namespace	http://www.acns.net/ACNS
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="HashMatched" type="xs:boolean" minOccurs="0"/>

element type_Detection/MetadataMatched

diagram
namespace	http://www.acns.net/ACNS
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="MetadataMatched" type="xs:boolean" minOccurs="0"/>

element type_Detection/WatermarkMatched

diagram
namespace	http://www.acns.net/ACNS
type	type_WatermarkMatched
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation type   xs:string   required         payload   xs:string
source	<xs:element name="WatermarkMatched" type="type_WatermarkMatched" minOccurs="0"/>

element type_Detection/VerificationID

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	content  simple
source	<xs:element name="VerificationID" type="xs:string"/>

element type_Detection/VerifiedDataLoc

diagram
namespace	http://www.acns.net/ACNS
type	xs:anyURI
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="VerifiedDataLoc" type="xs:anyURI" minOccurs="0"/>

complexType type_Disposition

diagram
namespace	http://www.acns.net/ACNS
children	InternalStatus Comments Contact
used by	element  type_InternalTracking/Disposition
attributes	Name   Type   Use   Default   Fixed   Annotation Sequence   xs:int   required         Start   xs:dateTime   required         End   xs:dateTime
source	<xs:complexType name="type_Disposition">   <xs:sequence>     <xs:element name="InternalStatus" type="xs:string"/>     <xs:element name="Comments" type="xs:string" minOccurs="0"/>     <xs:element name="Contact" type="Contact"/>   </xs:sequence>   <xs:attribute name="Sequence" type="xs:int" use="required"/>   <xs:attribute name="Start" type="xs:dateTime" use="required"/>   <xs:attribute name="End" type="xs:dateTime"/> </xs:complexType>

attribute type_Disposition/@Sequence

type	xs:int
properties	use  required
source	<xs:attribute name="Sequence" type="xs:int" use="required"/>

attribute type_Disposition/@Start

type	xs:dateTime
properties	use  required
source	<xs:attribute name="Start" type="xs:dateTime" use="required"/>

attribute type_Disposition/@End

type	xs:dateTime
source	<xs:attribute name="End" type="xs:dateTime"/>

element type_Disposition/InternalStatus

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	content  simple
source	<xs:element name="InternalStatus" type="xs:string"/>

element type_Disposition/Comments

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Comments" type="xs:string" minOccurs="0"/>

element type_Disposition/Contact

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="Contact" type="Contact"/>

complexType type_GRStatus

diagram
namespace	http://www.acns.net/ACNS
children	NetworkCaseID NetworkInfringementID NetworkIncidentID ActionTaken UserData
used by	element  type_NoticeStatus/GRStatus
source	<xs:complexType name="type_GRStatus">   <xs:sequence>     <xs:element name="NetworkCaseID" minOccurs="0"/>     <xs:element name="NetworkInfringementID" type="xs:string" minOccurs="0"/>     <xs:element name="NetworkIncidentID" type="xs:string" minOccurs="0"/>     <xs:element name="ActionTaken" minOccurs="0" maxOccurs="unbounded">       <xs:complexType>         <xs:sequence>           <xs:element name="Type" type="xs:string"/>           <xs:element name="Time" type="xs:dateTime"/>           <xs:element name="AdditionalData" minOccurs="0">             <xs:complexType>               <xs:simpleContent>                 <xs:extension base="xs:string"/>               </xs:simpleContent>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="UserData" minOccurs="0">       <xs:complexType>         <xs:sequence>           <xs:element name="AnonUserIdentifier" type="xs:string" minOccurs="0"/>           <xs:element name="TotalCaseCount" type="xs:int" minOccurs="0"/>           <xs:element name="TotalInfringementCount" type="xs:int" minOccurs="0"/>           <xs:element name="TotalIncidentCount" type="xs:int" minOccurs="0"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element type_GRStatus/NetworkCaseID

diagram
namespace	http://www.acns.net/ACNS
properties	minOcc  0 maxOcc  1
source	<xs:element name="NetworkCaseID" minOccurs="0"/>

element type_GRStatus/NetworkInfringementID

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="NetworkInfringementID" type="xs:string" minOccurs="0"/>

element type_GRStatus/NetworkIncidentID

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="NetworkIncidentID" type="xs:string" minOccurs="0"/>

element type_GRStatus/ActionTaken

diagram
namespace	http://www.acns.net/ACNS
properties	minOcc  0 maxOcc  unbounded content  complex
children	Type Time AdditionalData
source	<xs:element name="ActionTaken" minOccurs="0" maxOccurs="unbounded">   <xs:complexType>     <xs:sequence>       <xs:element name="Type" type="xs:string"/>       <xs:element name="Time" type="xs:dateTime"/>       <xs:element name="AdditionalData" minOccurs="0">         <xs:complexType>           <xs:simpleContent>             <xs:extension base="xs:string"/>           </xs:simpleContent>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element type_GRStatus/ActionTaken/Type

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	content  simple
source	<xs:element name="Type" type="xs:string"/>

element type_GRStatus/ActionTaken/Time

diagram
namespace	http://www.acns.net/ACNS
type	xs:dateTime
properties	content  simple
source	<xs:element name="Time" type="xs:dateTime"/>

element type_GRStatus/ActionTaken/AdditionalData

diagram
namespace	http://www.acns.net/ACNS
type	extension of xs:string
properties	minOcc  0 maxOcc  1 content  complex
source	<xs:element name="AdditionalData" minOccurs="0">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:string"/>     </xs:simpleContent>   </xs:complexType> </xs:element>

element type_GRStatus/UserData

diagram
namespace	http://www.acns.net/ACNS
properties	minOcc  0 maxOcc  1 content  complex
children	AnonUserIdentifier TotalCaseCount TotalInfringementCount TotalIncidentCount
source	<xs:element name="UserData" minOccurs="0">   <xs:complexType>     <xs:sequence>       <xs:element name="AnonUserIdentifier" type="xs:string" minOccurs="0"/>       <xs:element name="TotalCaseCount" type="xs:int" minOccurs="0"/>       <xs:element name="TotalInfringementCount" type="xs:int" minOccurs="0"/>       <xs:element name="TotalIncidentCount" type="xs:int" minOccurs="0"/>     </xs:sequence>   </xs:complexType> </xs:element>

element type_GRStatus/UserData/AnonUserIdentifier

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="AnonUserIdentifier" type="xs:string" minOccurs="0"/>

element type_GRStatus/UserData/TotalCaseCount

diagram
namespace	http://www.acns.net/ACNS
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="TotalCaseCount" type="xs:int" minOccurs="0"/>

element type_GRStatus/UserData/TotalInfringementCount

diagram
namespace	http://www.acns.net/ACNS
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="TotalInfringementCount" type="xs:int" minOccurs="0"/>

element type_GRStatus/UserData/TotalIncidentCount

diagram
namespace	http://www.acns.net/ACNS
type	xs:int
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="TotalIncidentCount" type="xs:int" minOccurs="0"/>

complexType type_Hash

diagram
namespace	http://www.acns.net/ACNS
type	extension of xs:string
properties	base  xs:string
used by	elements  Infringement/Content/Item/Hash type_Item/Hash
attributes	Name   Type   Use   Default   Fixed   Annotation Type   xs:string   required
source	<xs:complexType name="type_Hash">   <xs:simpleContent>     <xs:extension base="xs:string">       <xs:attribute name="Type" type="xs:string" use="required"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute type_Hash/@Type

type	xs:string
properties	use  required
source	<xs:attribute name="Type" type="xs:string" use="required"/>

complexType type_infringement_type

diagram
namespace	http://www.acns.net/ACNS
type	extension of type_infringement_type_enumeration
properties	base  type_infringement_type_enumeration
used by	element  Infringement/Type
facets	Kind  Value  Annotation enumeration  OTHER enumeration  INFRINGEMENT enumeration  PRELIT enumeration  INFO enumeration  DMCA
attributes	Name   Type   Use   Default   Fixed   Annotation Retraction   xs:boolean            Comments   xs:string
source	<xs:complexType name="type_infringement_type">   <xs:simpleContent>     <xs:extension base="type_infringement_type_enumeration">       <xs:attribute name="Retraction" type="xs:boolean"/>       <xs:attribute name="Comments" type="xs:string"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute type_infringement_type/@Retraction

type	xs:boolean
source	<xs:attribute name="Retraction" type="xs:boolean"/>

attribute type_infringement_type/@Comments

type	xs:string
source	<xs:attribute name="Comments" type="xs:string"/>

complexType type_InternalTracking

diagram
namespace	http://www.acns.net/ACNS
children	PrimarySubject Disposition Mapping
used by	element  Infringement/InternalTracking
attributes	Name   Type   Use   Default   Fixed   Annotation CurrentSequence   xs:int            InternalCaseNumber   xs:string   required
source	<xs:complexType name="type_InternalTracking">   <xs:sequence>     <xs:element name="PrimarySubject" type="type_Subject"/>     <xs:element name="Disposition" type="type_Disposition" minOccurs="0"/>     <xs:element name="Mapping" type="type_Mapping" minOccurs="0"/>   </xs:sequence>   <xs:attribute name="CurrentSequence" type="xs:int"/>   <xs:attribute name="InternalCaseNumber" type="xs:string" use="required"/> </xs:complexType>

attribute type_InternalTracking/@CurrentSequence

type	xs:int
source	<xs:attribute name="CurrentSequence" type="xs:int"/>

attribute type_InternalTracking/@InternalCaseNumber

type	xs:string
properties	use  required
source	<xs:attribute name="InternalCaseNumber" type="xs:string" use="required"/>

element type_InternalTracking/PrimarySubject

diagram
namespace	http://www.acns.net/ACNS
type	type_Subject
properties	content  complex
children	SubjectContact SubjectID
source	<xs:element name="PrimarySubject" type="type_Subject"/>

element type_InternalTracking/Disposition

diagram
namespace	http://www.acns.net/ACNS
type	type_Disposition
properties	minOcc  0 maxOcc  1 content  complex
children	InternalStatus Comments Contact
attributes	Name   Type   Use   Default   Fixed   Annotation Sequence   xs:int   required         Start   xs:dateTime   required         End   xs:dateTime
source	<xs:element name="Disposition" type="type_Disposition" minOccurs="0"/>

element type_InternalTracking/Mapping

diagram
namespace	http://www.acns.net/ACNS
type	type_Mapping
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation OriginalIP   type_IPAddress   required         OriginalPort   type_Port   required         MappedIP   type_IPAddress   required         MappedPort   type_Port   optional         MappedProtocol   derived by: xs:int   optional         Time   xs:dateTime   required         LeaseTime   xs:time            LeaseHeld   xs:time
source	<xs:element name="Mapping" type="type_Mapping" minOccurs="0"/>

complexType type_IPAssignee

diagram
namespace	http://www.acns.net/ACNS
type	extension of type_Subject
properties	base  type_Subject
children	SubjectContact SubjectID
attributes	Name   Type   Use   Default   Fixed   Annotation Primary   xs:boolean            Relationship   xs:string
source	<xs:complexType name="type_IPAssignee">   <xs:complexContent>     <xs:extension base="type_Subject">       <xs:attribute name="Primary" type="xs:boolean"/>       <xs:attribute name="Relationship" type="xs:string"/>     </xs:extension>   </xs:complexContent> </xs:complexType>

attribute type_IPAssignee/@Primary

type	xs:boolean
source	<xs:attribute name="Primary" type="xs:boolean"/>

attribute type_IPAssignee/@Relationship

type	xs:string
source	<xs:attribute name="Relationship" type="xs:string"/>

complexType type_Item

diagram
namespace	http://www.acns.net/ACNS
children	TimeStamp AlsoSeen Title Artist FileName FileSize URL HostURI Type ExplicitType Hash
used by	element  type_Content/Item
source	<xs:complexType name="type_Item">   <xs:sequence>     <xs:element name="TimeStamp" type="xs:dateTime"/>     <xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>     <xs:element name="Title" type="xs:string" minOccurs="0"/>     <xs:element name="Artist" type="xs:string" minOccurs="0"/>     <xs:element name="FileName">       <xs:simpleType>         <xs:restriction base="xs:string"/>       </xs:simpleType>     </xs:element>     <xs:element name="FileSize" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:int">           <xs:minInclusive value="0"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="URL" type="xs:anyURI" minOccurs="0"/>     <xs:element name="HostURI" type="xs:anyURI" minOccurs="0"/>     <xs:element name="Type" type="xs:string" minOccurs="0"/>     <xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>     <xs:element name="Hash" type="type_Hash" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element type_Item/TimeStamp

diagram
namespace	http://www.acns.net/ACNS
type	xs:dateTime
properties	content  simple
source	<xs:element name="TimeStamp" type="xs:dateTime"/>

element type_Item/AlsoSeen

diagram
namespace	http://www.acns.net/ACNS
type	type_AlsoSeen
properties	minOcc  0 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Start   xs:dateTime   required         End   xs:dateTime   required
source	<xs:element name="AlsoSeen" type="type_AlsoSeen" minOccurs="0" maxOccurs="unbounded"/>

element type_Item/Title

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Title" type="xs:string" minOccurs="0"/>

element type_Item/Artist

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Artist" type="xs:string" minOccurs="0"/>

element type_Item/FileName

diagram
namespace	http://www.acns.net/ACNS
type	restriction of xs:string
properties	content  simple
source	<xs:element name="FileName">   <xs:simpleType>     <xs:restriction base="xs:string"/>   </xs:simpleType> </xs:element>

element type_Item/FileSize

diagram
namespace	http://www.acns.net/ACNS
type	restriction of xs:int
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation minInclusive  0
source	<xs:element name="FileSize" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element type_Item/URL

diagram
namespace	http://www.acns.net/ACNS
type	xs:anyURI
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="URL" type="xs:anyURI" minOccurs="0"/>

element type_Item/HostURI

diagram
namespace	http://www.acns.net/ACNS
type	xs:anyURI
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="HostURI" type="xs:anyURI" minOccurs="0"/>

element type_Item/Type

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Type" type="xs:string" minOccurs="0"/>

element type_Item/ExplicitType

diagram
namespace	http://www.acns.net/ACNS
type	type_ExplicitType
properties	minOcc  0 maxOcc  1 content  simple
facets	Kind  Value  Annotation enumeration  Movie enumeration  Game enumeration  Software enumeration  Music enumeration  Document enumeration  Image
source	<xs:element name="ExplicitType" type="type_ExplicitType" minOccurs="0"/>

element type_Item/Hash

diagram
namespace	http://www.acns.net/ACNS
type	type_Hash
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type   xs:string   required
source	<xs:element name="Hash" type="type_Hash" minOccurs="0"/>

complexType type_Mapping

diagram
namespace	http://www.acns.net/ACNS
used by	element  type_InternalTracking/Mapping
attributes	Name   Type   Use   Default   Fixed   Annotation OriginalIP   type_IPAddress   required         OriginalPort   type_Port   required         MappedIP   type_IPAddress   required         MappedPort   type_Port   optional         MappedProtocol   derived by: xs:int   optional         Time   xs:dateTime   required         LeaseTime   xs:time            LeaseHeld   xs:time
source	<xs:complexType name="type_Mapping">   <xs:attributeGroup ref="type_OriginalIPPortAttribute"/>   <xs:attributeGroup ref="type_MappedIPPortAttribute"/>   <xs:attribute name="Time" type="xs:dateTime" use="required"/>   <xs:attribute name="LeaseTime" type="xs:time"/>   <xs:attribute name="LeaseHeld" type="xs:time"/> </xs:complexType>

attribute type_Mapping/@Time

type	xs:dateTime
properties	use  required
source	<xs:attribute name="Time" type="xs:dateTime" use="required"/>

attribute type_Mapping/@LeaseTime

type	xs:time
source	<xs:attribute name="LeaseTime" type="xs:time"/>

attribute type_Mapping/@LeaseHeld

type	xs:time
source	<xs:attribute name="LeaseHeld" type="xs:time"/>

complexType type_Message

diagram
namespace	http://www.acns.net/ACNS
children	Infringement NoticeAck NoticeStatus StatusRequest
used by	element  MessageEnvelope/Message
attributes	Name   Type   Use   Default   Fixed   Annotation Type   type_MessageName   required         ID   xs:string            Created   xs:dateTime
source	<xs:complexType name="type_Message">   <xs:choice>     <xs:element ref="Infringement"/>     <xs:element ref="NoticeAck"/>     <xs:element ref="NoticeStatus"/>     <xs:element ref="StatusRequest"/>   </xs:choice>   <xs:attribute name="Type" type="type_MessageName" use="required"/>   <xs:attribute name="ID" type="xs:string"/>   <xs:attribute name="Created" type="xs:dateTime"/> </xs:complexType>

attribute type_Message/@Type

type	type_MessageName
properties	use  required
facets	Kind  Value  Annotation enumeration  ACNS2.0Notice enumeration  ACNS0.7Notice enumeration  ACNSNoticeAck enumeration  ACNSStatusRequest enumeration  ACNSNoticeStatus
source	<xs:attribute name="Type" type="type_MessageName" use="required"/>

attribute type_Message/@ID

type	xs:string
source	<xs:attribute name="ID" type="xs:string"/>

attribute type_Message/@Created

type	xs:dateTime
source	<xs:attribute name="Created" type="xs:dateTime"/>

complexType type_NoticeAck

diagram
namespace	http://www.acns.net/ACNS
children	Case Complainant Service_Provider Addl_Contact Notes
used by	element  NoticeAck
attributes	Name   Type   Use   Default   Fixed   Annotation schemaVersion   xs:string         1.3   Accepted   xs:boolean            RejectReason   derived by: xs:string   optional         TimeStamp   xs:dateTime            Sequence   xs:int   optional
source	<xs:complexType name="type_NoticeAck">   <xs:all>     <xs:element name="Case" type="Case"/>     <xs:element name="Complainant" type="Contact"/>     <xs:element name="Service_Provider" type="Contact"/>     <xs:element name="Addl_Contact" type="Contact" minOccurs="0"/>     <xs:element name="Notes" type="xs:string"/>   </xs:all>   <xs:attribute ref="schemaVersion"/>   <xs:attribute name="Accepted" type="xs:boolean"/>   <xs:attribute name="RejectReason" use="optional">     <xs:simpleType>       <xs:restriction base="xs:string">         <xs:enumeration value="UNKNOWN_RECIPIENT"/>         <xs:enumeration value="IP_OUT_OF_RANGE"/>         <xs:enumeration value="MULTIPLE"/>         <xs:enumeration value="TEXT_XML_MISMATCH"/>         <xs:enumeration value="OTHER"/>       </xs:restriction>     </xs:simpleType>   </xs:attribute>   <xs:attribute name="TimeStamp" type="xs:dateTime"/>   <xs:attribute name="Sequence" type="xs:int" use="optional"/> </xs:complexType>

attribute type_NoticeAck/@Accepted

type	xs:boolean
source	<xs:attribute name="Accepted" type="xs:boolean"/>

attribute type_NoticeAck/@RejectReason

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  UNKNOWN_RECIPIENT enumeration  IP_OUT_OF_RANGE enumeration  MULTIPLE enumeration  TEXT_XML_MISMATCH enumeration  OTHER
source	<xs:attribute name="RejectReason" use="optional">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="UNKNOWN_RECIPIENT"/>       <xs:enumeration value="IP_OUT_OF_RANGE"/>       <xs:enumeration value="MULTIPLE"/>       <xs:enumeration value="TEXT_XML_MISMATCH"/>       <xs:enumeration value="OTHER"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute type_NoticeAck/@TimeStamp

type	xs:dateTime
source	<xs:attribute name="TimeStamp" type="xs:dateTime"/>

attribute type_NoticeAck/@Sequence

type	xs:int
properties	use  optional
source	<xs:attribute name="Sequence" type="xs:int" use="optional"/>

element type_NoticeAck/Case

diagram
namespace	http://www.acns.net/ACNS
type	Case
properties	content  complex
children	ID Ref_URL Status Severity
source	<xs:element name="Case" type="Case"/>

element type_NoticeAck/Complainant

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="Complainant" type="Contact"/>

element type_NoticeAck/Service_Provider

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="Service_Provider" type="Contact"/>

element type_NoticeAck/Addl_Contact

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	minOcc  0 maxOcc  1 content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="Addl_Contact" type="Contact" minOccurs="0"/>

element type_NoticeAck/Notes

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	content  simple
source	<xs:element name="Notes" type="xs:string"/>

complexType type_NoticeAckList

diagram
namespace	http://www.acns.net/ACNS
children	NoticeAck
used by	element  type_StatusUpdate/NoticeAckList
source	<xs:complexType name="type_NoticeAckList">   <xs:sequence>     <xs:element ref="NoticeAck" maxOccurs="unbounded"/>   </xs:sequence> </xs:complexType>

complexType type_NoticeStatus

diagram
namespace	http://www.acns.net/ACNS
children	Disposition GRStatus UsenetStatus Source HumanInt CounterNotice Notes
used by	element  NoticeStatus/CaseStatus
attributes	Name   Type   Use   Default   Fixed   Annotation CaseID   xs:string   required         TimeStamp   xs:dateTime   required         ReqTime   xs:dateTime
source	<xs:complexType name="type_NoticeStatus">   <xs:sequence>     <xs:element name="Disposition" type="type_StatusDisposition"/>     <xs:choice minOccurs="0">       <xs:element name="GRStatus" type="type_GRStatus"/>       <xs:element name="UsenetStatus" type="type_UsenetDisposition"/>     </xs:choice>     <xs:element name="Source" type="type_StatusSource" minOccurs="0"/>     <xs:element name="HumanInt" type="Contact" minOccurs="0"/>     <xs:element name="CounterNotice" type="type_CounterNotice" minOccurs="0"/>     <xs:element name="Notes" type="xs:string" minOccurs="0"/>   </xs:sequence>   <xs:attribute name="CaseID" type="xs:string" use="required"/>   <xs:attribute name="TimeStamp" type="xs:dateTime" use="required"/>   <xs:attribute name="ReqTime" type="xs:dateTime"/> </xs:complexType>

attribute type_NoticeStatus/@CaseID

type	xs:string
properties	use  required
source	<xs:attribute name="CaseID" type="xs:string" use="required"/>

attribute type_NoticeStatus/@TimeStamp

type	xs:dateTime
properties	use  required
source	<xs:attribute name="TimeStamp" type="xs:dateTime" use="required"/>

attribute type_NoticeStatus/@ReqTime

type	xs:dateTime
source	<xs:attribute name="ReqTime" type="xs:dateTime"/>

element type_NoticeStatus/Disposition

diagram
namespace	http://www.acns.net/ACNS
type	type_StatusDisposition
properties	content  complex
children	Type Reason FirstProcessedDate LastModifiedDate
source	<xs:element name="Disposition" type="type_StatusDisposition"/>

element type_NoticeStatus/GRStatus

diagram
namespace	http://www.acns.net/ACNS
type	type_GRStatus
properties	content  complex
children	NetworkCaseID NetworkInfringementID NetworkIncidentID ActionTaken UserData
source	<xs:element name="GRStatus" type="type_GRStatus"/>

element type_NoticeStatus/UsenetStatus

diagram
namespace	http://www.acns.net/ACNS
type	type_UsenetDisposition
properties	content  complex
children	Article Removed CancelMsg
source	<xs:element name="UsenetStatus" type="type_UsenetDisposition"/>

element type_NoticeStatus/Source

diagram
namespace	http://www.acns.net/ACNS
type	type_StatusSource
properties	minOcc  0 maxOcc  1 content  complex
children	Complainant Service_Provider Content
source	<xs:element name="Source" type="type_StatusSource" minOccurs="0"/>

element type_NoticeStatus/HumanInt

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	minOcc  0 maxOcc  1 content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="HumanInt" type="Contact" minOccurs="0"/>

element type_NoticeStatus/CounterNotice

diagram
namespace	http://www.acns.net/ACNS
type	type_CounterNotice
properties	minOcc  0 maxOcc  1 content  complex
children	Service_Provider Addl_Contact Subscriber CounternoticeContent Notes
attributes	Name   Type   Use   Default   Fixed   Annotation TimeStamp   xs:dateTime   required         DMCA   xs:boolean
source	<xs:element name="CounterNotice" type="type_CounterNotice" minOccurs="0"/>

element type_NoticeStatus/Notes

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Notes" type="xs:string" minOccurs="0"/>

complexType type_StatusDisposition

diagram
namespace	http://www.acns.net/ACNS
children	Type Reason FirstProcessedDate LastModifiedDate
used by	element  type_NoticeStatus/Disposition
source	<xs:complexType name="type_StatusDisposition">   <xs:sequence>     <xs:element name="Type">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="OPEN"/>           <xs:enumeration value="CLOSED"/>           <xs:enumeration value="REJECTED"/>           <xs:enumeration value="COUNTERNOTICE"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="Reason" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:string"/>       </xs:simpleType>     </xs:element>     <xs:element name="FirstProcessedDate" type="xs:dateTime"/>     <xs:element name="LastModifiedDate" type="xs:dateTime"/>   </xs:sequence> </xs:complexType>

element type_StatusDisposition/Type

diagram
namespace	http://www.acns.net/ACNS
type	restriction of xs:string
properties	content  simple
facets	Kind  Value  Annotation enumeration  OPEN enumeration  CLOSED enumeration  REJECTED enumeration  COUNTERNOTICE
source	<xs:element name="Type">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="OPEN"/>       <xs:enumeration value="CLOSED"/>       <xs:enumeration value="REJECTED"/>       <xs:enumeration value="COUNTERNOTICE"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element type_StatusDisposition/Reason

diagram
namespace	http://www.acns.net/ACNS
type	restriction of xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Reason" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:string"/>   </xs:simpleType> </xs:element>

element type_StatusDisposition/FirstProcessedDate

diagram
namespace	http://www.acns.net/ACNS
type	xs:dateTime
properties	content  simple
source	<xs:element name="FirstProcessedDate" type="xs:dateTime"/>

element type_StatusDisposition/LastModifiedDate

diagram
namespace	http://www.acns.net/ACNS
type	xs:dateTime
properties	content  simple
source	<xs:element name="LastModifiedDate" type="xs:dateTime"/>

complexType type_StatusRequest

diagram
namespace	http://www.acns.net/ACNS
children	Case StartDateTime EndDateTime Complainant ServiceProvider
used by	element  StatusRequest
attributes	Name   Type   Use   Default   Fixed   Annotation schemaVersion   xs:string         1.3   TimeStamp   xs:dateTime
source	<xs:complexType name="type_StatusRequest">   <xs:sequence>     <xs:choice>       <xs:element name="Case" type="Case" maxOccurs="unbounded"/>       <xs:sequence>         <xs:element name="StartDateTime" type="xs:dateTime"/>         <xs:element name="EndDateTime" type="xs:dateTime"/>       </xs:sequence>     </xs:choice>     <xs:element name="Complainant" type="Contact"/>     <xs:element name="ServiceProvider" type="Contact"/>   </xs:sequence>   <xs:attribute ref="schemaVersion"/>   <xs:attribute name="TimeStamp" type="xs:dateTime"/> </xs:complexType>

attribute type_StatusRequest/@TimeStamp

type	xs:dateTime
source	<xs:attribute name="TimeStamp" type="xs:dateTime"/>

element type_StatusRequest/Case

diagram
namespace	http://www.acns.net/ACNS
type	Case
properties	minOcc  1 maxOcc  unbounded content  complex
children	ID Ref_URL Status Severity
source	<xs:element name="Case" type="Case" maxOccurs="unbounded"/>

element type_StatusRequest/StartDateTime

diagram
namespace	http://www.acns.net/ACNS
type	xs:dateTime
properties	content  simple
source	<xs:element name="StartDateTime" type="xs:dateTime"/>

element type_StatusRequest/EndDateTime

diagram
namespace	http://www.acns.net/ACNS
type	xs:dateTime
properties	content  simple
source	<xs:element name="EndDateTime" type="xs:dateTime"/>

element type_StatusRequest/Complainant

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="Complainant" type="Contact"/>

element type_StatusRequest/ServiceProvider

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="ServiceProvider" type="Contact"/>

complexType type_StatusSource

diagram
namespace	http://www.acns.net/ACNS
children	Complainant Service_Provider Content
used by	element  type_NoticeStatus/Source
source	<xs:complexType name="type_StatusSource">   <xs:sequence>     <xs:element name="Complainant" type="Contact"/>     <xs:element name="Service_Provider" type="Contact"/>     <xs:element name="Content" type="type_Content" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element type_StatusSource/Complainant

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="Complainant" type="Contact"/>

element type_StatusSource/Service_Provider

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="Service_Provider" type="Contact"/>

element type_StatusSource/Content

diagram
namespace	http://www.acns.net/ACNS
type	type_Content
properties	minOcc  0 maxOcc  1 content  complex
children	Item
source	<xs:element name="Content" type="type_Content" minOccurs="0"/>

complexType type_StatusUpdate

diagram
namespace	http://www.acns.net/ACNS
children	Case Complainant Service_Provider HumanInt Disposition DispositionUsenet CounterNotice NoticeAckList Content Notes
used by	element  StatusUpdate
attributes	Name   Type   Use   Default   Fixed   Annotation TimeStamp   xs:dateTime   required         ReqTime   xs:dateTime            schemaVersion   xs:string         1.3
source	<xs:complexType name="type_StatusUpdate">   <xs:all>     <xs:element name="Case" type="Case"/>     <xs:element name="Complainant" type="Contact"/>     <xs:element name="Service_Provider" type="Contact"/>     <xs:element name="HumanInt" type="Contact" minOccurs="0"/>     <xs:element name="Disposition">       <xs:complexType>         <xs:attribute name="Status">           <xs:simpleType>             <xs:restriction base="xs:string">               <xs:enumeration value="OPEN"/>               <xs:enumeration value="CLOSED"/>               <xs:enumeration value="REJECTED"/>               <xs:enumeration value="COUNTERNOTICE"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="infoStatus" use="optional">           <xs:simpleType>             <xs:restriction base="xs:string">               <xs:enumeration value="INFO"/>               <xs:enumeration value="ACTION"/>               <xs:enumeration value="TERM"/>               <xs:enumeration value="NOACTION"/>               <xs:enumeration value="NONEPOS"/>             </xs:restriction>           </xs:simpleType>         </xs:attribute>         <xs:attribute name="Level" type="xs:int"/>       </xs:complexType>     </xs:element>     <xs:element name="DispositionUsenet" type="type_UsenetDisposition" minOccurs="0"/>     <xs:element name="CounterNotice" type="type_CounterNotice" minOccurs="0"/>     <xs:element name="NoticeAckList" type="type_NoticeAckList" minOccurs="0"/>     <xs:element name="Content" type="type_Content" minOccurs="0"/>     <xs:element name="Notes" type="xs:string" minOccurs="0"/>   </xs:all>   <xs:attribute name="TimeStamp" type="xs:dateTime" use="required"/>   <xs:attribute name="ReqTime" type="xs:dateTime"/>   <xs:attribute ref="schemaVersion"/> </xs:complexType>

attribute type_StatusUpdate/@TimeStamp

type	xs:dateTime
properties	use  required
source	<xs:attribute name="TimeStamp" type="xs:dateTime" use="required"/>

attribute type_StatusUpdate/@ReqTime

type	xs:dateTime
source	<xs:attribute name="ReqTime" type="xs:dateTime"/>

element type_StatusUpdate/Case

diagram
namespace	http://www.acns.net/ACNS
type	Case
properties	content  complex
children	ID Ref_URL Status Severity
source	<xs:element name="Case" type="Case"/>

element type_StatusUpdate/Complainant

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="Complainant" type="Contact"/>

element type_StatusUpdate/Service_Provider

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="Service_Provider" type="Contact"/>

element type_StatusUpdate/HumanInt

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	minOcc  0 maxOcc  1 content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="HumanInt" type="Contact" minOccurs="0"/>

element type_StatusUpdate/Disposition

diagram
namespace	http://www.acns.net/ACNS
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Status   derived by: xs:string            infoStatus   derived by: xs:string   optional         Level   xs:int
source	<xs:element name="Disposition">   <xs:complexType>     <xs:attribute name="Status">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="OPEN"/>           <xs:enumeration value="CLOSED"/>           <xs:enumeration value="REJECTED"/>           <xs:enumeration value="COUNTERNOTICE"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="infoStatus" use="optional">       <xs:simpleType>         <xs:restriction base="xs:string">           <xs:enumeration value="INFO"/>           <xs:enumeration value="ACTION"/>           <xs:enumeration value="TERM"/>           <xs:enumeration value="NOACTION"/>           <xs:enumeration value="NONEPOS"/>         </xs:restriction>       </xs:simpleType>     </xs:attribute>     <xs:attribute name="Level" type="xs:int"/>   </xs:complexType> </xs:element>

attribute type_StatusUpdate/Disposition/@Status

type	restriction of xs:string
facets	Kind  Value  Annotation enumeration  OPEN enumeration  CLOSED enumeration  REJECTED enumeration  COUNTERNOTICE
source	<xs:attribute name="Status">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="OPEN"/>       <xs:enumeration value="CLOSED"/>       <xs:enumeration value="REJECTED"/>       <xs:enumeration value="COUNTERNOTICE"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute type_StatusUpdate/Disposition/@infoStatus

type	restriction of xs:string
properties	use  optional
facets	Kind  Value  Annotation enumeration  INFO enumeration  ACTION enumeration  TERM enumeration  NOACTION enumeration  NONEPOS
source	<xs:attribute name="infoStatus" use="optional">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:enumeration value="INFO"/>       <xs:enumeration value="ACTION"/>       <xs:enumeration value="TERM"/>       <xs:enumeration value="NOACTION"/>       <xs:enumeration value="NONEPOS"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute type_StatusUpdate/Disposition/@Level

type	xs:int
source	<xs:attribute name="Level" type="xs:int"/>

element type_StatusUpdate/DispositionUsenet

diagram
namespace	http://www.acns.net/ACNS
type	type_UsenetDisposition
properties	minOcc  0 maxOcc  1 content  complex
children	Article Removed CancelMsg
source	<xs:element name="DispositionUsenet" type="type_UsenetDisposition" minOccurs="0"/>

element type_StatusUpdate/CounterNotice

diagram
namespace	http://www.acns.net/ACNS
type	type_CounterNotice
properties	minOcc  0 maxOcc  1 content  complex
children	Service_Provider Addl_Contact Subscriber CounternoticeContent Notes
attributes	Name   Type   Use   Default   Fixed   Annotation TimeStamp   xs:dateTime   required         DMCA   xs:boolean
source	<xs:element name="CounterNotice" type="type_CounterNotice" minOccurs="0"/>

element type_StatusUpdate/NoticeAckList

diagram
namespace	http://www.acns.net/ACNS
type	type_NoticeAckList
properties	minOcc  0 maxOcc  1 content  complex
children	NoticeAck
source	<xs:element name="NoticeAckList" type="type_NoticeAckList" minOccurs="0"/>

element type_StatusUpdate/Content

diagram
namespace	http://www.acns.net/ACNS
type	type_Content
properties	minOcc  0 maxOcc  1 content  complex
children	Item
source	<xs:element name="Content" type="type_Content" minOccurs="0"/>

element type_StatusUpdate/Notes

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Notes" type="xs:string" minOccurs="0"/>

complexType type_Subject

diagram
namespace	http://www.acns.net/ACNS
children	SubjectContact SubjectID
used by	element  type_InternalTracking/PrimarySubject complexType  type_IPAssignee
source	<xs:complexType name="type_Subject">   <xs:sequence>     <xs:element name="SubjectContact" type="Contact"/>     <xs:element name="SubjectID">       <xs:complexType>         <xs:simpleContent>           <xs:extension base="xs:string">             <xs:attribute name="type" type="xs:string"/>           </xs:extension>         </xs:simpleContent>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element type_Subject/SubjectContact

diagram
namespace	http://www.acns.net/ACNS
type	Contact
properties	content  complex
children	Entity Contact Address Phone Email ContactURL
source	<xs:element name="SubjectContact" type="Contact"/>

element type_Subject/SubjectID

diagram
namespace	http://www.acns.net/ACNS
type	extension of xs:string
properties	content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation type   xs:string
source	<xs:element name="SubjectID">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:string">         <xs:attribute name="type" type="xs:string"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute type_Subject/SubjectID/@type

type	xs:string
source	<xs:attribute name="type" type="xs:string"/>

complexType type_UsenetDisposition

diagram
namespace	http://www.acns.net/ACNS
children	Article Removed CancelMsg
used by	elements  type_StatusUpdate/DispositionUsenet type_NoticeStatus/UsenetStatus
source	<xs:complexType name="type_UsenetDisposition">   <xs:sequence>     <xs:element name="Article" type="xs:anyURI"/>     <xs:element name="Removed" type="xs:boolean"/>     <xs:element name="CancelMsg" type="xs:boolean" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element type_UsenetDisposition/Article

diagram
namespace	http://www.acns.net/ACNS
type	xs:anyURI
properties	content  simple
source	<xs:element name="Article" type="xs:anyURI"/>

element type_UsenetDisposition/Removed

diagram
namespace	http://www.acns.net/ACNS
type	xs:boolean
properties	content  simple
source	<xs:element name="Removed" type="xs:boolean"/>

element type_UsenetDisposition/CancelMsg

diagram
namespace	http://www.acns.net/ACNS
type	xs:boolean
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="CancelMsg" type="xs:boolean" minOccurs="0"/>

complexType type_Verification

diagram
namespace	http://www.acns.net/ACNS
children	VerificationLevel Notes
used by	elements  Infringement/Verification Verification
source	<xs:complexType name="type_Verification">   <xs:sequence>     <xs:element name="VerificationLevel" minOccurs="0">       <xs:complexType>         <xs:simpleContent>           <xs:extension base="xs:int">             <xs:attribute name="Type" type="xs:string"/>           </xs:extension>         </xs:simpleContent>       </xs:complexType>     </xs:element>     <xs:element name="Notes" type="xs:string" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element type_Verification/VerificationLevel

diagram
namespace	http://www.acns.net/ACNS
type	extension of xs:int
properties	minOcc  0 maxOcc  1 content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation Type   xs:string
source	<xs:element name="VerificationLevel" minOccurs="0">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:int">         <xs:attribute name="Type" type="xs:string"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute type_Verification/VerificationLevel/@Type

type	xs:string
source	<xs:attribute name="Type" type="xs:string"/>

element type_Verification/Notes

diagram
namespace	http://www.acns.net/ACNS
type	xs:string
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="Notes" type="xs:string" minOccurs="0"/>

complexType type_VerificationLevel

diagram
namespace	http://www.acns.net/ACNS
type	extension of xs:int
properties	base  xs:int
attributes	Name   Type   Use   Default   Fixed   Annotation Type   xs:string
source	<xs:complexType name="type_VerificationLevel">   <xs:simpleContent>     <xs:extension base="xs:int">       <xs:attribute name="Type" type="xs:string"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute type_VerificationLevel/@Type

type	xs:string
source	<xs:attribute name="Type" type="xs:string"/>

complexType type_VerifiedImage

diagram
namespace	http://www.acns.net/ACNS
children	VerifiedImageBinary VerifiedImageLocation
source	<xs:complexType name="type_VerifiedImage">   <xs:sequence>     <xs:sequence>       <xs:element name="VerifiedImageBinary" maxOccurs="unbounded">         <xs:complexType>           <xs:simpleContent>             <xs:extension base="xs:base64Binary">               <xs:attribute name="title" type="xs:string"/>             </xs:extension>           </xs:simpleContent>         </xs:complexType>       </xs:element>       <xs:element name="VerifiedImageLocation" maxOccurs="unbounded">         <xs:complexType>           <xs:simpleContent>             <xs:extension base="xs:anyURI">               <xs:attribute name="title"/>               <xs:attribute name="username"/>               <xs:attribute name="password"/>             </xs:extension>           </xs:simpleContent>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:sequence> </xs:complexType>

element type_VerifiedImage/VerifiedImageBinary

diagram
namespace	http://www.acns.net/ACNS
type	extension of xs:base64Binary
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation title   xs:string
source	<xs:element name="VerifiedImageBinary" maxOccurs="unbounded">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:base64Binary">         <xs:attribute name="title" type="xs:string"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute type_VerifiedImage/VerifiedImageBinary/@title

type	xs:string
source	<xs:attribute name="title" type="xs:string"/>

element type_VerifiedImage/VerifiedImageLocation

diagram
namespace	http://www.acns.net/ACNS
type	extension of xs:anyURI
properties	minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   Annotation title               username               password
source	<xs:element name="VerifiedImageLocation" maxOccurs="unbounded">   <xs:complexType>     <xs:simpleContent>       <xs:extension base="xs:anyURI">         <xs:attribute name="title"/>         <xs:attribute name="username"/>         <xs:attribute name="password"/>       </xs:extension>     </xs:simpleContent>   </xs:complexType> </xs:element>

attribute type_VerifiedImage/VerifiedImageLocation/@title

source

<xs:attribute name="title"/>

attribute type_VerifiedImage/VerifiedImageLocation/@username

source

<xs:attribute name="username"/>

attribute type_VerifiedImage/VerifiedImageLocation/@password

source

<xs:attribute name="password"/>

complexType type_WatermarkMatched

diagram
namespace	http://www.acns.net/ACNS
type	extension of xs:string
properties	base  xs:string
used by	element  type_Detection/WatermarkMatched
attributes	Name   Type   Use   Default   Fixed   Annotation type   xs:string   required         payload   xs:string
source	<xs:complexType name="type_WatermarkMatched">   <xs:simpleContent>     <xs:extension base="xs:string">       <xs:attribute name="type" type="xs:string" use="required"/>       <xs:attribute name="payload" type="xs:string"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute type_WatermarkMatched/@type

type	xs:string
properties	use  required
source	<xs:attribute name="type" type="xs:string" use="required"/>

attribute type_WatermarkMatched/@payload

type	xs:string
source	<xs:attribute name="payload" type="xs:string"/>

simpleType type_ExplicitType

namespace	http://www.acns.net/ACNS
type	restriction of xs:string
properties	base  xs:string
used by	elements  Infringement/Content/Item/ExplicitType type_Item/ExplicitType
facets	Kind  Value  Annotation enumeration  Movie enumeration  Game enumeration  Software enumeration  Music enumeration  Document enumeration  Image
source	<xs:simpleType name="type_ExplicitType">   <xs:restriction base="xs:string">     <xs:enumeration value="Movie"/>     <xs:enumeration value="Game"/>     <xs:enumeration value="Software"/>     <xs:enumeration value="Music"/>     <xs:enumeration value="Document"/>     <xs:enumeration value="Image"/>   </xs:restriction> </xs:simpleType>

simpleType type_infringement_type_enumeration

namespace	http://www.acns.net/ACNS
type	restriction of xs:string
properties	base  xs:string
used by	complexType  type_infringement_type
facets	Kind  Value  Annotation enumeration  OTHER enumeration  INFRINGEMENT enumeration  PRELIT enumeration  INFO enumeration  DMCA
source	<xs:simpleType name="type_infringement_type_enumeration">   <xs:restriction base="xs:string">     <xs:enumeration value="OTHER"/>     <xs:enumeration value="INFRINGEMENT"/>     <xs:enumeration value="PRELIT"/>     <xs:enumeration value="INFO"/>     <xs:enumeration value="DMCA"/>   </xs:restriction> </xs:simpleType>

simpleType type_IPAddress

namespace	http://www.acns.net/ACNS
type	xs:string
properties	base  xs:string
used by	element  Infringement/Source/IP_Address attributes  type_MappedIPPortAttribute/@MappedIP type_OriginalIPPortAttribute/@OriginalIP
source	<xs:simpleType name="type_IPAddress">   <xs:restriction base="xs:string"/> </xs:simpleType>

simpleType type_MessageName

namespace	http://www.acns.net/ACNS
type	restriction of xs:string
properties	base  xs:string
used by	attribute  type_Message/@Type
facets	Kind  Value  Annotation enumeration  ACNS2.0Notice enumeration  ACNS0.7Notice enumeration  ACNSNoticeAck enumeration  ACNSStatusRequest enumeration  ACNSNoticeStatus
source	<xs:simpleType name="type_MessageName">   <xs:restriction base="xs:string">     <xs:enumeration value="ACNS2.0Notice"/>     <xs:enumeration value="ACNS0.7Notice"/>     <xs:enumeration value="ACNSNoticeAck"/>     <xs:enumeration value="ACNSStatusRequest"/>     <xs:enumeration value="ACNSNoticeStatus"/>   </xs:restriction> </xs:simpleType>

simpleType type_Port

namespace	http://www.acns.net/ACNS
type	restriction of xs:int
properties	base  xs:int
used by	element  Infringement/Source/Port attributes  type_MappedIPPortAttribute/@MappedPort type_OriginalIPPortAttribute/@OriginalPort
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  65535
source	<xs:simpleType name="type_Port">   <xs:restriction base="xs:int">     <xs:minInclusive value="0"/>     <xs:maxInclusive value="65535"/>   </xs:restriction> </xs:simpleType>

attribute schemaVersion

namespace	http://www.acns.net/ACNS
type	xs:string
properties	fixed  1.3
used by	elements  Infringement NoticeStatus complexTypes  type_NoticeAck type_StatusRequest type_StatusUpdate
source	<xs:attribute name="schemaVersion" type="xs:string" fixed="1.3"/>

attributeGroup type_contentType

namespace	http://www.acns.net/ACNS
attributes	Name   Type   Use   Default   Fixed   Annotation contentType   derived by: xs:string   required
source	<xs:attributeGroup name="type_contentType">   <xs:attribute name="contentType" use="required">     <xs:simpleType>       <xs:restriction base="xs:string">         <xs:minLength value="3"/>       </xs:restriction>     </xs:simpleType>   </xs:attribute> </xs:attributeGroup>

attribute type_contentType/@contentType

type	restriction of xs:string
properties	use  required
facets	Kind  Value  Annotation minLength  3
source	<xs:attribute name="contentType" use="required">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="3"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attributeGroup type_MappedIPPortAttribute

namespace	http://www.acns.net/ACNS
used by	complexType  type_Mapping
attributes	Name   Type   Use   Default   Fixed   Annotation MappedIP   type_IPAddress   required         MappedPort   type_Port   optional         MappedProtocol   derived by: xs:int   optional
source	<xs:attributeGroup name="type_MappedIPPortAttribute">   <xs:attribute name="MappedIP" type="type_IPAddress" use="required"/>   <xs:attribute name="MappedPort" type="type_Port" use="optional"/>   <xs:attribute name="MappedProtocol" use="optional">     <xs:simpleType>       <xs:restriction base="xs:int">         <xs:minInclusive value="0"/>         <xs:maxInclusive value="254"/>       </xs:restriction>     </xs:simpleType>   </xs:attribute> </xs:attributeGroup>

attribute type_MappedIPPortAttribute/@MappedIP

type	type_IPAddress
properties	use  required
source	<xs:attribute name="MappedIP" type="type_IPAddress" use="required"/>

attribute type_MappedIPPortAttribute/@MappedPort

type	type_Port
properties	use  optional
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  65535
source	<xs:attribute name="MappedPort" type="type_Port" use="optional"/>

attribute type_MappedIPPortAttribute/@MappedProtocol

type	restriction of xs:int
properties	use  optional
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  254
source	<xs:attribute name="MappedProtocol" use="optional">   <xs:simpleType>     <xs:restriction base="xs:int">       <xs:minInclusive value="0"/>       <xs:maxInclusive value="254"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attributeGroup type_OriginalIPPortAttribute

namespace	http://www.acns.net/ACNS
used by	complexType  type_Mapping
attributes	Name   Type   Use   Default   Fixed   Annotation OriginalIP   type_IPAddress   required         OriginalPort   type_Port   required
source	<xs:attributeGroup name="type_OriginalIPPortAttribute">   <xs:attribute name="OriginalIP" type="type_IPAddress" use="required"/>   <xs:attribute name="OriginalPort" type="type_Port" use="required"/> </xs:attributeGroup>

attribute type_OriginalIPPortAttribute/@OriginalIP

type	type_IPAddress
properties	use  required
source	<xs:attribute name="OriginalIP" type="type_IPAddress" use="required"/>

attribute type_OriginalIPPortAttribute/@OriginalPort

type	type_Port
properties	use  required
facets	Kind  Value  Annotation minInclusive  0 maxInclusive  65535
source	<xs:attribute name="OriginalPort" type="type_Port" use="required"/>

complexType base64Binary

diagram
namespace	http://www.w3.org/2005/05/xmlmime
type	extension of xs:base64Binary
properties	base  xs:base64Binary
used by	complexType  type_BinaryImage
attributes	Name   Type   Use   Default   Fixed   Annotation xmime:contentType   derived by: xs:string
source	<xs:complexType name="base64Binary">   <xs:simpleContent>     <xs:extension base="xs:base64Binary">       <xs:attribute ref="xmime:contentType"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

complexType hexBinary

diagram
namespace	http://www.w3.org/2005/05/xmlmime
type	extension of xs:hexBinary
properties	base  xs:hexBinary
attributes	Name   Type   Use   Default   Fixed   Annotation xmime:contentType   derived by: xs:string
source	<xs:complexType name="hexBinary">   <xs:simpleContent>     <xs:extension base="xs:hexBinary">       <xs:attribute ref="xmime:contentType"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute contentType

namespace	http://www.w3.org/2005/05/xmlmime
type	restriction of xs:string
used by	complexTypes  base64Binary hexBinary
facets	Kind  Value  Annotation minLength  3
source	<xs:attribute name="contentType">   <xs:simpleType>     <xs:restriction base="xs:string">       <xs:minLength value="3"/>     </xs:restriction>   </xs:simpleType> </xs:attribute>

attribute expectedContentTypes

namespace	http://www.w3.org/2005/05/xmlmime
type	xs:string
source	<xs:attribute name="expectedContentTypes" type="xs:string"/>

element CanonicalizationMethod

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CanonicalizationMethodType
properties	content  complex mixed  true
used by	complexType  SignedInfoType
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required
source	<xs:element name="CanonicalizationMethod" type="ds:CanonicalizationMethodType"/>

element DigestMethod

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:DigestMethodType
properties	content  complex mixed  true
used by	complexType  ReferenceType
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required
source	<xs:element name="DigestMethod" type="ds:DigestMethodType"/>

element DigestValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:DigestValueType
properties	content  simple
used by	complexType  ReferenceType
source	<xs:element name="DigestValue" type="ds:DigestValueType"/>

element DSAKeyValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:DSAKeyValueType
properties	content  complex
children	ds:P ds:Q ds:G ds:Y ds:J ds:Seed ds:PgenCounter
used by	complexType  KeyValueType
source	<xs:element name="DSAKeyValue" type="ds:DSAKeyValueType"/>

element KeyInfo

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:KeyInfoType
properties	content  complex mixed  true
children	ds:KeyName ds:KeyValue ds:RetrievalMethod ds:X509Data ds:PGPData ds:SPKIData ds:MgmtData
used by	complexType  SignatureType
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional
source	<xs:element name="KeyInfo" type="ds:KeyInfoType"/>

element KeyName

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
properties	content  simple
used by	complexType  KeyInfoType
source	<xs:element name="KeyName" type="string"/>

element KeyValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:KeyValueType
properties	content  complex mixed  true
children	ds:DSAKeyValue ds:RSAKeyValue
used by	complexType  KeyInfoType
source	<xs:element name="KeyValue" type="ds:KeyValueType"/>

element Manifest

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:ManifestType
properties	content  complex
children	ds:Reference
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional
source	<xs:element name="Manifest" type="ds:ManifestType"/>

element MgmtData

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
properties	content  simple
used by	complexType  KeyInfoType
source	<xs:element name="MgmtData" type="string"/>

element Object

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:ObjectType
properties	content  complex mixed  true
used by	complexType  SignatureType
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional         MimeType   xs:string   optional         Encoding   xs:anyURI   optional
source	<xs:element name="Object" type="ds:ObjectType"/>

element PGPData

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:PGPDataType
properties	content  complex
children	ds:PGPKeyID ds:PGPKeyPacket ds:PGPKeyPacket
used by	complexType  KeyInfoType
source	<xs:element name="PGPData" type="ds:PGPDataType"/>

element Reference

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:ReferenceType
properties	content  complex
children	ds:Transforms ds:DigestMethod ds:DigestValue
used by	complexTypes  ManifestType SignedInfoType
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional         URI   xs:anyURI   optional         Type   xs:anyURI   optional
source	<xs:element name="Reference" type="ds:ReferenceType"/>

element RetrievalMethod

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:RetrievalMethodType
properties	content  complex
children	ds:Transforms
used by	complexType  KeyInfoType
attributes	Name   Type   Use   Default   Fixed   Annotation URI   xs:anyURI            Type   xs:anyURI   optional
source	<xs:element name="RetrievalMethod" type="ds:RetrievalMethodType"/>

element RSAKeyValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:RSAKeyValueType
properties	content  complex
children	ds:Modulus ds:Exponent
used by	complexType  KeyValueType
source	<xs:element name="RSAKeyValue" type="ds:RSAKeyValueType"/>

element Signature

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignatureType
properties	content  complex
children	ds:SignedInfo ds:SignatureValue ds:KeyInfo ds:Object
used by	element  MessageEnvelope
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional
source	<xs:element name="Signature" type="ds:SignatureType"/>

element SignatureMethod

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignatureMethodType
properties	content  complex mixed  true
children	ds:HMACOutputLength
used by	complexType  SignedInfoType
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required
source	<xs:element name="SignatureMethod" type="ds:SignatureMethodType"/>

element SignatureProperties

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignaturePropertiesType
properties	content  complex
children	ds:SignatureProperty
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional
source	<xs:element name="SignatureProperties" type="ds:SignaturePropertiesType"/>

element SignatureProperty

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignaturePropertyType
properties	content  complex mixed  true
used by	complexType  SignaturePropertiesType
attributes	Name   Type   Use   Default   Fixed   Annotation Target   xs:anyURI   required         Id   xs:ID   optional
source	<xs:element name="SignatureProperty" type="ds:SignaturePropertyType"/>

element SignatureValue

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignatureValueType
properties	content  complex
used by	complexType  SignatureType
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional
source	<xs:element name="SignatureValue" type="ds:SignatureValueType"/>

element SignedInfo

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SignedInfoType
properties	content  complex
children	ds:CanonicalizationMethod ds:SignatureMethod ds:Reference
used by	complexType  SignatureType
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional
source	<xs:element name="SignedInfo" type="ds:SignedInfoType"/>

element SPKIData

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:SPKIDataType
properties	content  complex
children	ds:SPKISexp
used by	complexType  KeyInfoType
source	<xs:element name="SPKIData" type="ds:SPKIDataType"/>

element Transform

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:TransformType
properties	content  complex mixed  true
children	ds:XPath
used by	complexType  TransformsType
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required
source	<xs:element name="Transform" type="ds:TransformType"/>

element Transforms

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:TransformsType
properties	content  complex
children	ds:Transform
used by	complexTypes  ReferenceType RetrievalMethodType
source	<xs:element name="Transforms" type="ds:TransformsType"/>

element X509Data

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:X509DataType
properties	content  complex
children	ds:X509IssuerSerial ds:X509SKI ds:X509SubjectName ds:X509Certificate ds:X509CRL
used by	complexType  KeyInfoType
source	<xs:element name="X509Data" type="ds:X509DataType"/>

complexType CanonicalizationMethodType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
used by	element  CanonicalizationMethod
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required
source	<xs:complexType name="CanonicalizationMethodType" mixed="true">   <xs:sequence>     <xs:any namespace="##any" minOccurs="0" maxOccurs="unbounded"/>     <!-- (0,unbounded) elements from (1,1) namespace -->   </xs:sequence>   <xs:attribute name="Algorithm" type="anyURI" use="required"/> </xs:complexType>

attribute CanonicalizationMethodType/@Algorithm

type	xs:anyURI
properties	use  required
source	<xs:attribute name="Algorithm" type="anyURI" use="required"/>

complexType DigestMethodType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
used by	element  DigestMethod
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required
source	<xs:complexType name="DigestMethodType" mixed="true">   <xs:sequence>     <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/>   </xs:sequence>   <xs:attribute name="Algorithm" type="anyURI" use="required"/> </xs:complexType>

attribute DigestMethodType/@Algorithm

type	xs:anyURI
properties	use  required
source	<xs:attribute name="Algorithm" type="anyURI" use="required"/>

complexType DSAKeyValueType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:P ds:Q ds:G ds:Y ds:J ds:Seed ds:PgenCounter
used by	element  DSAKeyValue
source	<xs:complexType name="DSAKeyValueType">   <xs:sequence>     <xs:sequence minOccurs="0">       <xs:element name="P" type="ds:CryptoBinary"/>       <xs:element name="Q" type="ds:CryptoBinary"/>     </xs:sequence>     <xs:element name="G" type="ds:CryptoBinary" minOccurs="0"/>     <xs:element name="Y" type="ds:CryptoBinary"/>     <xs:element name="J" type="ds:CryptoBinary" minOccurs="0"/>     <xs:sequence minOccurs="0">       <xs:element name="Seed" type="ds:CryptoBinary"/>       <xs:element name="PgenCounter" type="ds:CryptoBinary"/>     </xs:sequence>   </xs:sequence> </xs:complexType>

element DSAKeyValueType/P

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple
source	<xs:element name="P" type="ds:CryptoBinary"/>

element DSAKeyValueType/Q

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple
source	<xs:element name="Q" type="ds:CryptoBinary"/>

element DSAKeyValueType/G

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="G" type="ds:CryptoBinary" minOccurs="0"/>

element DSAKeyValueType/Y

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple
source	<xs:element name="Y" type="ds:CryptoBinary"/>

element DSAKeyValueType/J

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="J" type="ds:CryptoBinary" minOccurs="0"/>

element DSAKeyValueType/Seed

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple
source	<xs:element name="Seed" type="ds:CryptoBinary"/>

element DSAKeyValueType/PgenCounter

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple
source	<xs:element name="PgenCounter" type="ds:CryptoBinary"/>

complexType KeyInfoType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
children	ds:KeyName ds:KeyValue ds:RetrievalMethod ds:X509Data ds:PGPData ds:SPKIData ds:MgmtData
used by	element  KeyInfo
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional
source	<xs:complexType name="KeyInfoType" mixed="true">   <xs:choice maxOccurs="unbounded">     <xs:element ref="ds:KeyName"/>     <xs:element ref="ds:KeyValue"/>     <xs:element ref="ds:RetrievalMethod"/>     <xs:element ref="ds:X509Data"/>     <xs:element ref="ds:PGPData"/>     <xs:element ref="ds:SPKIData"/>     <xs:element ref="ds:MgmtData"/>     <xs:any namespace="##other" processContents="lax"/>     <!-- (1,1) elements from (0,unbounded) namespaces -->   </xs:choice>   <xs:attribute name="Id" type="ID" use="optional"/> </xs:complexType>

attribute KeyInfoType/@Id

type	xs:ID
properties	use  optional
source	<xs:attribute name="Id" type="ID" use="optional"/>

complexType KeyValueType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
children	ds:DSAKeyValue ds:RSAKeyValue
used by	element  KeyValue
source	<xs:complexType name="KeyValueType" mixed="true">   <xs:choice>     <xs:element ref="ds:DSAKeyValue"/>     <xs:element ref="ds:RSAKeyValue"/>     <xs:any namespace="##other" processContents="lax"/>   </xs:choice> </xs:complexType>

complexType ManifestType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:Reference
used by	element  Manifest
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional
source	<xs:complexType name="ManifestType">   <xs:sequence>     <xs:element ref="ds:Reference" maxOccurs="unbounded"/>   </xs:sequence>   <xs:attribute name="Id" type="ID" use="optional"/> </xs:complexType>

attribute ManifestType/@Id

type	xs:ID
properties	use  optional
source	<xs:attribute name="Id" type="ID" use="optional"/>

complexType ObjectType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
used by	element  Object
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional         MimeType   xs:string   optional         Encoding   xs:anyURI   optional
source	<xs:complexType name="ObjectType" mixed="true">   <xs:sequence minOccurs="0" maxOccurs="unbounded">     <xs:any namespace="##any" processContents="lax"/>   </xs:sequence>   <xs:attribute name="Id" type="ID" use="optional"/>   <xs:attribute name="MimeType" type="string" use="optional"/>   <xs:attribute name="Encoding" type="anyURI" use="optional"/>   <!-- add a grep facet --> </xs:complexType>

attribute ObjectType/@Id

type	xs:ID
properties	use  optional
source	<xs:attribute name="Id" type="ID" use="optional"/>

attribute ObjectType/@MimeType

type	xs:string
properties	use  optional
source	<xs:attribute name="MimeType" type="string" use="optional"/>

attribute ObjectType/@Encoding

type	xs:anyURI
properties	use  optional
source	<xs:attribute name="Encoding" type="anyURI" use="optional"/>

complexType PGPDataType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:PGPKeyID ds:PGPKeyPacket ds:PGPKeyPacket
used by	element  PGPData
source	<xs:complexType name="PGPDataType">   <xs:choice>     <xs:sequence>       <xs:element name="PGPKeyID" type="base64Binary"/>       <xs:element name="PGPKeyPacket" type="base64Binary" minOccurs="0"/>       <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>     <xs:sequence>       <xs:element name="PGPKeyPacket" type="base64Binary"/>       <xs:any namespace="##other" processContents="lax" minOccurs="0" maxOccurs="unbounded"/>     </xs:sequence>   </xs:choice> </xs:complexType>

element PGPDataType/PGPKeyID

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple
source	<xs:element name="PGPKeyID" type="base64Binary"/>

element PGPDataType/PGPKeyPacket

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="PGPKeyPacket" type="base64Binary" minOccurs="0"/>

element PGPDataType/PGPKeyPacket

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple
source	<xs:element name="PGPKeyPacket" type="base64Binary"/>

complexType ReferenceType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:Transforms ds:DigestMethod ds:DigestValue
used by	element  Reference
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional         URI   xs:anyURI   optional         Type   xs:anyURI   optional
source	<xs:complexType name="ReferenceType">   <xs:sequence>     <xs:element ref="ds:Transforms" minOccurs="0"/>     <xs:element ref="ds:DigestMethod"/>     <xs:element ref="ds:DigestValue"/>   </xs:sequence>   <xs:attribute name="Id" type="ID" use="optional"/>   <xs:attribute name="URI" type="anyURI" use="optional"/>   <xs:attribute name="Type" type="anyURI" use="optional"/> </xs:complexType>

attribute ReferenceType/@Id

type	xs:ID
properties	use  optional
source	<xs:attribute name="Id" type="ID" use="optional"/>

attribute ReferenceType/@URI

type	xs:anyURI
properties	use  optional
source	<xs:attribute name="URI" type="anyURI" use="optional"/>

attribute ReferenceType/@Type

type	xs:anyURI
properties	use  optional
source	<xs:attribute name="Type" type="anyURI" use="optional"/>

complexType RetrievalMethodType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:Transforms
used by	element  RetrievalMethod
attributes	Name   Type   Use   Default   Fixed   Annotation URI   xs:anyURI            Type   xs:anyURI   optional
source	<xs:complexType name="RetrievalMethodType">   <xs:sequence>     <xs:element ref="ds:Transforms" minOccurs="0"/>   </xs:sequence>   <xs:attribute name="URI" type="anyURI"/>   <xs:attribute name="Type" type="anyURI" use="optional"/> </xs:complexType>

attribute RetrievalMethodType/@URI

type	xs:anyURI
source	<xs:attribute name="URI" type="anyURI"/>

attribute RetrievalMethodType/@Type

type	xs:anyURI
properties	use  optional
source	<xs:attribute name="Type" type="anyURI" use="optional"/>

complexType RSAKeyValueType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:Modulus ds:Exponent
used by	element  RSAKeyValue
source	<xs:complexType name="RSAKeyValueType">   <xs:sequence>     <xs:element name="Modulus" type="ds:CryptoBinary"/>     <xs:element name="Exponent" type="ds:CryptoBinary"/>   </xs:sequence> </xs:complexType>

element RSAKeyValueType/Modulus

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple
source	<xs:element name="Modulus" type="ds:CryptoBinary"/>

element RSAKeyValueType/Exponent

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:CryptoBinary
properties	content  simple
source	<xs:element name="Exponent" type="ds:CryptoBinary"/>

complexType SignatureMethodType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
children	ds:HMACOutputLength
used by	element  SignatureMethod
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required
source	<xs:complexType name="SignatureMethodType" mixed="true">   <xs:sequence>     <xs:element name="HMACOutputLength" type="ds:HMACOutputLengthType" minOccurs="0"/>     <xs:any namespace="##other" minOccurs="0" maxOccurs="unbounded"/>     <!-- (0,unbounded) elements from (1,1) external namespace -->   </xs:sequence>   <xs:attribute name="Algorithm" type="anyURI" use="required"/> </xs:complexType>

attribute SignatureMethodType/@Algorithm

type	xs:anyURI
properties	use  required
source	<xs:attribute name="Algorithm" type="anyURI" use="required"/>

element SignatureMethodType/HMACOutputLength

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:HMACOutputLengthType
properties	minOcc  0 maxOcc  1 content  simple
source	<xs:element name="HMACOutputLength" type="ds:HMACOutputLengthType" minOccurs="0"/>

complexType SignaturePropertiesType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:SignatureProperty
used by	element  SignatureProperties
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional
source	<xs:complexType name="SignaturePropertiesType">   <xs:sequence>     <xs:element ref="ds:SignatureProperty" maxOccurs="unbounded"/>   </xs:sequence>   <xs:attribute name="Id" type="ID" use="optional"/> </xs:complexType>

attribute SignaturePropertiesType/@Id

type	xs:ID
properties	use  optional
source	<xs:attribute name="Id" type="ID" use="optional"/>

complexType SignaturePropertyType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
used by	element  SignatureProperty
attributes	Name   Type   Use   Default   Fixed   Annotation Target   xs:anyURI   required         Id   xs:ID   optional
source	<xs:complexType name="SignaturePropertyType" mixed="true">   <xs:choice maxOccurs="unbounded">     <xs:any namespace="##other" processContents="lax"/>     <!-- (1,1) elements from (1,unbounded) namespaces -->   </xs:choice>   <xs:attribute name="Target" type="anyURI" use="required"/>   <xs:attribute name="Id" type="ID" use="optional"/> </xs:complexType>

attribute SignaturePropertyType/@Target

type	xs:anyURI
properties	use  required
source	<xs:attribute name="Target" type="anyURI" use="required"/>

attribute SignaturePropertyType/@Id

type	xs:ID
properties	use  optional
source	<xs:attribute name="Id" type="ID" use="optional"/>

complexType SignatureType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:SignedInfo ds:SignatureValue ds:KeyInfo ds:Object
used by	element  Signature
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional
source	<xs:complexType name="SignatureType">   <xs:sequence>     <xs:element ref="ds:SignedInfo"/>     <xs:element ref="ds:SignatureValue"/>     <xs:element ref="ds:KeyInfo" minOccurs="0"/>     <xs:element ref="ds:Object" minOccurs="0" maxOccurs="unbounded"/>   </xs:sequence>   <xs:attribute name="Id" type="ID" use="optional"/> </xs:complexType>

attribute SignatureType/@Id

type	xs:ID
properties	use  optional
source	<xs:attribute name="Id" type="ID" use="optional"/>

complexType SignatureValueType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	extension of xs:base64Binary
properties	base  base64Binary
used by	element  SignatureValue
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional
source	<xs:complexType name="SignatureValueType">   <xs:simpleContent>     <xs:extension base="base64Binary">       <xs:attribute name="Id" type="ID" use="optional"/>     </xs:extension>   </xs:simpleContent> </xs:complexType>

attribute SignatureValueType/@Id

type	xs:ID
properties	use  optional
source	<xs:attribute name="Id" type="ID" use="optional"/>

complexType SignedInfoType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:CanonicalizationMethod ds:SignatureMethod ds:Reference
used by	element  SignedInfo
attributes	Name   Type   Use   Default   Fixed   Annotation Id   xs:ID   optional
source	<xs:complexType name="SignedInfoType">   <xs:sequence>     <xs:element ref="ds:CanonicalizationMethod"/>     <xs:element ref="ds:SignatureMethod"/>     <xs:element ref="ds:Reference" maxOccurs="unbounded"/>   </xs:sequence>   <xs:attribute name="Id" type="ID" use="optional"/> </xs:complexType>

attribute SignedInfoType/@Id

type	xs:ID
properties	use  optional
source	<xs:attribute name="Id" type="ID" use="optional"/>

complexType SPKIDataType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:SPKISexp
used by	element  SPKIData
source	<xs:complexType name="SPKIDataType">   <xs:sequence maxOccurs="unbounded">     <xs:element name="SPKISexp" type="base64Binary"/>     <xs:any namespace="##other" processContents="lax" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element SPKIDataType/SPKISexp

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple
source	<xs:element name="SPKISexp" type="base64Binary"/>

complexType TransformsType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:Transform
used by	element  Transforms
source	<xs:complexType name="TransformsType">   <xs:sequence>     <xs:element ref="ds:Transform" maxOccurs="unbounded"/>   </xs:sequence> </xs:complexType>

complexType TransformType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
properties	mixed  true
children	ds:XPath
used by	element  Transform
attributes	Name   Type   Use   Default   Fixed   Annotation Algorithm   xs:anyURI   required
source	<xs:complexType name="TransformType" mixed="true">   <xs:choice minOccurs="0" maxOccurs="unbounded">     <xs:any namespace="##other" processContents="lax"/>     <!-- (1,1) elements from (0,unbounded) namespaces -->     <xs:element name="XPath" type="string"/>   </xs:choice>   <xs:attribute name="Algorithm" type="anyURI" use="required"/> </xs:complexType>

attribute TransformType/@Algorithm

type	xs:anyURI
properties	use  required
source	<xs:attribute name="Algorithm" type="anyURI" use="required"/>

element TransformType/XPath

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
properties	content  simple
source	<xs:element name="XPath" type="string"/>

complexType X509DataType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:X509IssuerSerial ds:X509SKI ds:X509SubjectName ds:X509Certificate ds:X509CRL
used by	element  X509Data
source	<xs:complexType name="X509DataType">   <xs:sequence maxOccurs="unbounded">     <xs:choice>       <xs:element name="X509IssuerSerial" type="ds:X509IssuerSerialType"/>       <xs:element name="X509SKI" type="base64Binary"/>       <xs:element name="X509SubjectName" type="string"/>       <xs:element name="X509Certificate" type="base64Binary"/>       <xs:element name="X509CRL" type="base64Binary"/>       <xs:any namespace="##other" processContents="lax"/>     </xs:choice>   </xs:sequence> </xs:complexType>

element X509DataType/X509IssuerSerial

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	ds:X509IssuerSerialType
properties	content  complex
children	ds:X509IssuerName ds:X509SerialNumber
source	<xs:element name="X509IssuerSerial" type="ds:X509IssuerSerialType"/>

element X509DataType/X509SKI

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple
source	<xs:element name="X509SKI" type="base64Binary"/>

element X509DataType/X509SubjectName

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
properties	content  simple
source	<xs:element name="X509SubjectName" type="string"/>

element X509DataType/X509Certificate

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple
source	<xs:element name="X509Certificate" type="base64Binary"/>

element X509DataType/X509CRL

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	content  simple
source	<xs:element name="X509CRL" type="base64Binary"/>

complexType X509IssuerSerialType

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
children	ds:X509IssuerName ds:X509SerialNumber
used by	element  X509DataType/X509IssuerSerial
source	<xs:complexType name="X509IssuerSerialType">   <xs:sequence>     <xs:element name="X509IssuerName" type="string"/>     <xs:element name="X509SerialNumber" type="integer"/>   </xs:sequence> </xs:complexType>

element X509IssuerSerialType/X509IssuerName

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:string
properties	content  simple
source	<xs:element name="X509IssuerName" type="string"/>

element X509IssuerSerialType/X509SerialNumber

diagram
namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:integer
properties	content  simple
source	<xs:element name="X509SerialNumber" type="integer"/>

simpleType CryptoBinary

namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	base  base64Binary
used by	elements  RSAKeyValueType/Exponent DSAKeyValueType/G DSAKeyValueType/J RSAKeyValueType/Modulus DSAKeyValueType/P DSAKeyValueType/PgenCounter DSAKeyValueType/Q DSAKeyValueType/Seed DSAKeyValueType/Y
source	<xs:simpleType name="CryptoBinary">   <xs:restriction base="base64Binary"/> </xs:simpleType>

simpleType DigestValueType

namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:base64Binary
properties	base  base64Binary
used by	element  DigestValue
source	<xs:simpleType name="DigestValueType">   <xs:restriction base="base64Binary"/> </xs:simpleType>

simpleType HMACOutputLengthType

namespace	http://www.w3.org/2000/09/xmldsig#
type	xs:integer
properties	base  integer
used by	element  SignatureMethodType/HMACOutputLength
source	<xs:simpleType name="HMACOutputLengthType">   <xs:restriction base="integer"/> </xs:simpleType>

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
